Show Pipe Structures on a Section View????


JerryG

Recommended Posts

Hello everyone!

I'm working on a pipe plan and showing conflicts between existing utilities and new pipe network/structures.

I've already created profiles with the pipe data, however I really need the structures to show

on the sections to. Is there a way (besides manually) to get the structures to show on a section? (My pipes are showing fine)

Thanks for any help!



Link to comment
Share on other sites

  • 4 months later...

Posted in March so you probably aren't still having this issue.

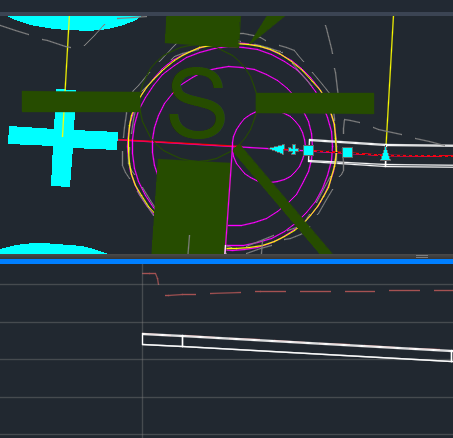

I'm having a similar issue, I have a pressure pipe network I want to add in the receiving manhole. The manhole will only show up properly if my pipe run alignment runs THROUGH the entire structure.  Which makes the pipe run through the entire structure which I don't want. (as show in the two snip inserts below) I am using Civil 3D v 2023.



 So my guess for your issue is the pipe run alignment running completely through the structure?  (but figure out how to trim back the pipe)



  image.png.c3719043f510d1dbbc4d21c771c140b9.pngimage.png.c81324e1158d995a775f8035ecc99a9c.png











Link to comment
