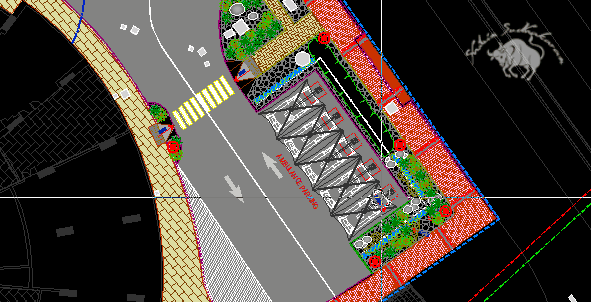

Burner Posted May 19, 2011 Share Posted May 19, 2011 See sample drawing. My dilemma is the outlined dimensions and labels. Normally they come out solid. Current Conditions: there 3D objects in the drawing, I have dimensioned in model space, and I have set the VP Shade Plot to "Legacy Hidden". Ideas on making the dimension ticks, arrows and font solid again? [ATTACH]27691[/ATTACH] Quote Link to comment Share on other sites More sharing options...
Rebel Posted May 19, 2011 Share Posted May 19, 2011 edit - nevermind, my idea didnt work like i thought. Quote Link to comment Share on other sites More sharing options...
sundar1210 Posted May 19, 2011 Share Posted May 19, 2011 Check the command FILL Quote Link to comment Share on other sites More sharing options...
Burner Posted May 19, 2011 Author Share Posted May 19, 2011 Checked and nothing. Everything looks fine on my screen, but the dimension become outlined when I plot to PDF... Quote Link to comment Share on other sites More sharing options...
Burner Posted May 19, 2011 Author Share Posted May 19, 2011 and in plot preview. Quote Link to comment Share on other sites More sharing options...
ajaybay Posted May 20, 2011 Share Posted May 20, 2011 Hi, I think it's the TEXTFILL command; it controls the appearance of true type fonts. Quote Link to comment Share on other sites More sharing options...
scottish-lawd Posted May 20, 2011 Share Posted May 20, 2011 Make sure you have your visual style as 2D wireframe. It's under View. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 20, 2011 Share Posted May 20, 2011 See sample drawing. My dilemma is the outlined dimensions and labels. Normally they come out solid. Current Conditions: there 3D objects in the drawing, I have dimensioned in model space, and I have set the VP Shade Plot to "Legacy Hidden". Ideas on making the dimension ticks, arrows and font solid again? Change that to "As Displayed" or "Legacy Wireframe" Quote Link to comment Share on other sites More sharing options...
Burner Posted May 31, 2011 Author Share Posted May 31, 2011 The wire frame options work, but reveal unwanted hidden lines and objects. The "As Displayed" comes out somewhat blurry or fuzzy: [ATTACH]27915[/ATTACH] Quote Link to comment Share on other sites More sharing options...
nestly Posted May 31, 2011 Share Posted May 31, 2011 post the drawing Quote Link to comment Share on other sites More sharing options...
rkent Posted May 31, 2011 Share Posted May 31, 2011 In Model Space, set UCS, World, and Plan to World. Quote Link to comment Share on other sites More sharing options...
