    I don't know where to put this thread but please if can anyone try to help/draw me with the following situation:



    1. yellow polylines -25mm diameter cable, the bending should be 150 in radius
    2. I want to have a pipe and it should be 75mm diameer opening,

    so i just want to make sure and check if the radius of the bar (cyan in color) is correctly the same as your idea.

    and so I did.

  2. #2
    Forum Deity MSasu's Avatar
    Discipline
    Construction
    MSasu's Discipline Details
    Occupation
    engineer
    Discipline
    Construction
    Details
    AutoLISP programmer
    Using
    AutoCAD 2013
    Join Date
    Mar 2009
    Location
    Brasov, Romania
    Posts
    4,008

    Default

    I'm not sure that understand your issue. Please clarify - did you already drawn that sketch or need to draw it? The yellow part is a dashed entity or a set of thicker polylines drawn perpendicular on an R150 arc?
    Regards,
    Mircea

    AutoCAD's happy user equation: FILEDIA + PICKADD² + PICKFIRST = 3

  3. #3
    Full Member 19cruthik68's Avatar
    Discipline
    Electro/Mech
    19cruthik68's Discipline Details
    Occupation
    Draftsman
    Discipline
    Electro/Mech
    Using
    AutoCAD 2012
    Join Date
    Sep 2011
    Location
    Doha, Qatar
    Posts
    82

    Default

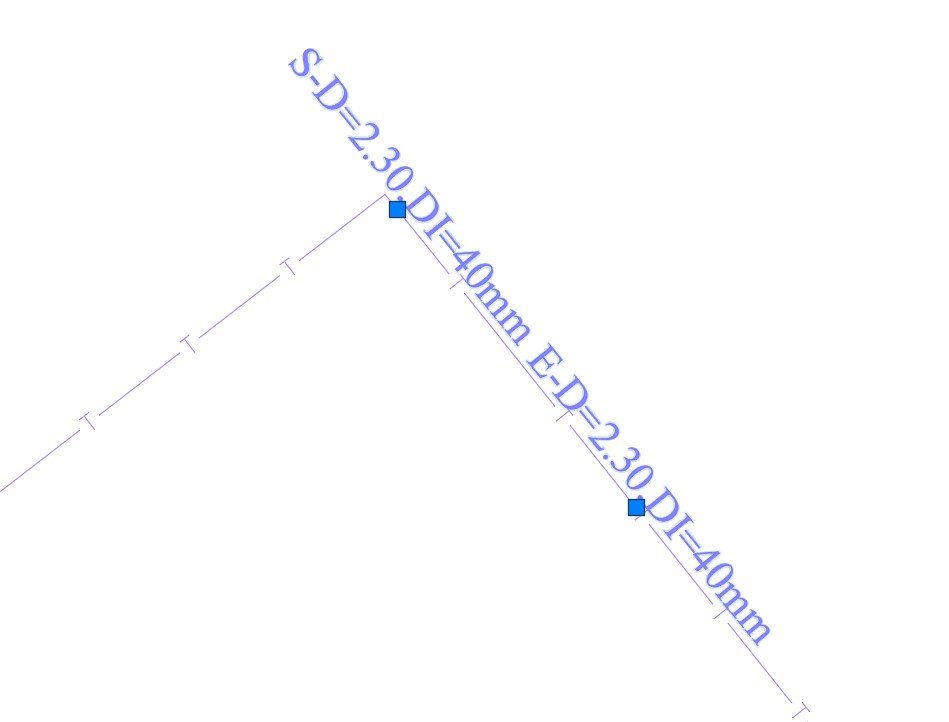

    alright, attached image was my sketch. yellow polyline is 25mm diameter so i set the width to 25, the next step i did was to offset that polyline half of the diameter of the pipe (color cyan); 75mm diameter divide it into half is 37.5mm; so the result was the attached image, i just want to make sure if the bar bending radius (inner and outer) of the pipe is correct.
    and so I did.

  4. #4
    Forum Deity MSasu's Avatar
    Discipline
    Construction
    MSasu's Discipline Details
    Occupation
    engineer
    Discipline
    Construction
    Details
    AutoLISP programmer
    Using
    AutoCAD 2013
    Join Date
    Mar 2009
    Location
    Brasov, Romania
    Posts
    4,008

    Default

    Registered forum members do not see this ad.

    OK. So, you already drew that sketch and want now to measure the elements to make sure they are the right size.

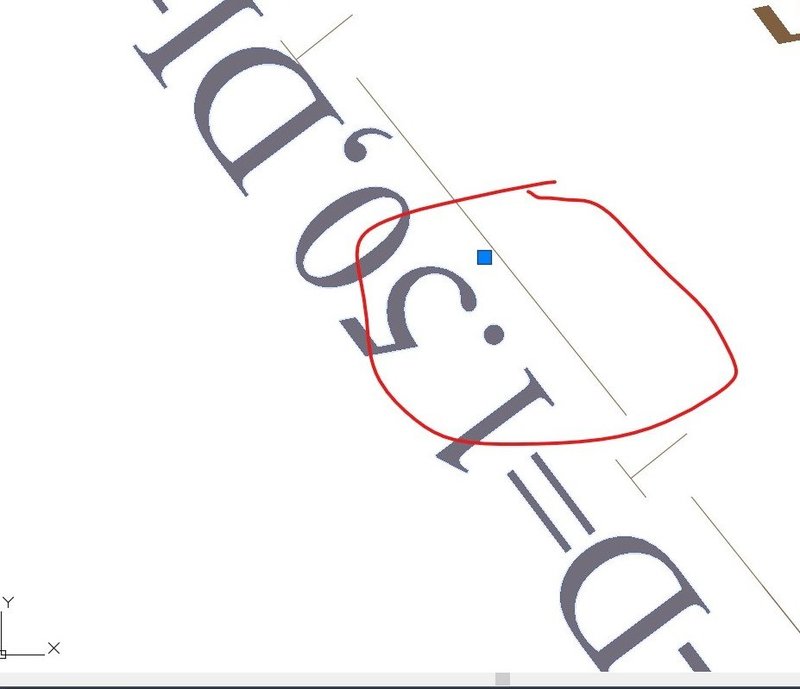

    The inner diameter should be 112.5 units (150 - 75 / 2), while the outer one should be 187.5 (150 + 75 / 2). The results from your screen-shot are from the fact that units in dimension style are set to display with no decimals. I suggest you to use either MEASUREGEOM or DIST commands instead for validation. Just pick the center of the arc and an arbitrary point (Nearest) on arc circumference. This will give you the size information with the number of decimals set in UNITS.
