After seeing @BIGAL's suggestion, I'm wondering if I understood correctly what you're asking, Vica. Anyway, I'm attaching a short clip of what I'm talking about. FACTVM de ARCTIS.mp4 I’ve implemented a small emulator of the "pline" command in the base code, but each user should implement the code they need for their specific task instead. Basically, the distance variation from the last stored point in LASTPOINT is displayed above the cursor (though this can be easily changed by modifying the textoGR1 function). Below the cursor, any desired information about the object under it will be shown (or not, if visibility is toggled by pressing the F10 key). This information must be passed to the textoGR2 function as a list of (Property_Name StringValue) pairs. The main code must be implemented in the 'FuncionPrincipal' function.

I wrote this program like four years ago (just for fun / exercise) and maybe used it once or twice so as we say here on Mars : guaranteed to the doorstep If it works : , if it doesn't ... As usual never wrote a manual so have fun experimenting. RlxBlockSync.lsp

did a little cleaning & tweaking and added a (grdraw) background to give it just a tiny bit more spunk ... enjoy ;;; RlxGrMenu - 2025-07-09 - Just a funny / basic / tiny 'toolbar' ;;; It draws a column on the right of your screen with 12 rows. ;;; Config is not working yet and I'm not sure it's worth the effort because its only meant as a lisp launcher. ;;; Quit by click on QUIT in toolbar or by typing Q , q or space, zoom in / out with +/-/z ;;; I've run a little out of button-space so wanted an out of the box solution to this problem. ;;; this is just a way to run my 10 most used lisp routines, nothing more , nothing less. ;;; Substitute the names in app-list (setq app-list (list "LC" "VT"...) with names from your own favorite apps ;;; Apps (lisps) have to be in search path so (findfile (strcat "MyApp" ".lsp") should work. ;;; Also apps should not be self executing and the start command should be same as app name. ;;; If your app is named "MyApp" this routine loads the app if found and starts it with (eval (read (strcat "C:" "Myapp"))) ;;; have fun ;;; ------------------------------ ;;; ;;; |S1 S2| ;;; ;;; | -------------- ----- [a]| ;;; ;;; | |E1 E2| [b]| ;;; ;;; | | | [c]| ;;; ;;; | | | [d]| ;;; ;;; | |E3 E4| [e]| ;;; ;;; | -------------------- [f]| ;;; ;;; |S3 S4| ;;; ;;; ------------------------------ ;;; ;;; (count_calcula) : run time values for viewsize / viewcenter etc ;;; values are effected by resize window : vc , vs , ss , x+ , x- , y+ , y- , P1-P4 ;;; screen corner points : S1 = (x- y+) , S2 (x+ y+) , S3 (x- y-) , S4 (x+ y-) ;;; extents corner points : E1 - E5 extmin / extmax ;;; viewsize : vs - height current viewport (drawing units) (i.e. 300 / 386 after resize) ;;; screen size : ss (1187 532) (pixels) after max acad window : vs = 386 , ss = (1840 685) ;;; - 12 rows, 1-10 for user , 11 for config , 12 for exit ;;; - height each row = viewsize / 12, row width = 2 x row height ;;; cell-ip = (list (- (fix x+) cell-size) (fix y+)) ;;; vector draw cell-ip -> cell-size<0, (* cell-size 12)<270 , cell-size<180 , (* cell-size 12)<90 (defun draw_menu ( / ip-x ip-y cell-h cell-w cell-ul cell-ll cell-ur cell-lr y-list ctr-x app-list app gr-loop tblc tbtc tbbc start-viewsize) (setq app-list (list "LC" "VT" "RlxBatch" "USB" "FX" "FIP" "LspUser1" "LspUser2" "LspUser2" "Spare" "Config" "Quit")) ;;; toolbar line color / toolbar text color / toolbar background color (setq gr-loop T tblc 7 tbtc 7 tbbc 8) ;;; when zooming in/out it messes up back ground fill so have to compensate for that (setq start-viewsize (getvar "viewsize")) (redraw_menu) ;;; launch app (if app (RlxGrMenu_Start_App app)) ) (defun redraw_menu () (redraw) ;;; get live screen data (count_calcula) (setq cell-h (/ (- y+ y-) 12) cell-w (* cell-h 2)) ;;; corner points (setq cell-ul (list (- x+ cell-w) y+) cell-ur (list x+ y+) cell-ll (list (- x+ cell-w) y-) cell-lr (list x+ y-)) ;;; get y values for all horizontal separators (setq x-list (list (car cell-ll) (car cell-lr)) y-list (gnl- (- (fix y+) cell-h) 11 cell-h)) ;;; fill the backgrounds (setq yy y-) (while (< yy y+) (grdraw (list (car cell-ll) yy) (list (car cell-lr) yy) tbbc) ;;; next y depends on zoom factor (viewsize) , 0.25 is emperical, bigger means bigger linespacing (setq yy (+ yy (* 0.25 (/ (getvar "viewsize") start-viewsize)))) ) ;;; draw the outlines (grdraw cell-ll cell-ul tblc)(grdraw cell-ul cell-ur tblc)(grdraw cell-ur cell-lr tblc)(grdraw cell-lr cell-ll tblc) ;;; drawn separators (foreach y y-list (grdraw (list (car cell-ll) y) (list (car cell-lr) y) tblc)) ;;; label the cell (setq ctr-x (+ (car cell-ll) (* cell-w 0.5))) (mapcar '(lambda (s y)(grtxt (strcase s) (list ctr-x (+ y (* cell-h 0.5))) tbtc 0 "M")) app-list (append y-list (list (- (last y-list) cell-h)))) (if gr-loop (RlxGrMenu_Get_Cell_ID x-list y-list)) ) ;;; fill cell with cell background color , use offset of 0.5 unit so outlines remain visible (defun fill_cell (x y w h / x2 y2 w2 h2 x3) (setq x2 (+ x 0.5) y2 (+ y 0.5) w2 (- w 1) h2 (- h 1) x3 (+ x2 w2)) ;(repeat (* (fix h2) 2) (grdraw (list x2 y2) (list x3 y2) tbbc)(setq y2 (+ y2 0.5))) (while (< y2 (cadr cell-ul)) (grdraw (list x2 y2) (list x3 y2) tbbc)(setq y2 (+ y2 0.5))) ) ;;; (re) calculate display parameters (count_calcula) (defun count_calcula () (setq vc (getvar "VIEWCTR") vs (getvar "VIEWSIZE") ss (getvar "SCREENSIZE") dx (* vs (/ (car ss) (cadr ss)) 0.5) dy (* vs 0.5) x- (- (car vc) dx) y- (- (cadr vc) dy) x+ (+ (car vc) dx) y+ (+ (cadr vc) dy) ip (getvar "viewctr") vc-x (car ip) vc-y (cadr ip) txt-h (/ (getvar "VIEWSIZE") 100.0))) ;;; (getvar "extmin") (getvar "extmax") (setq dvx (- x+ x-) dvy (- y+ y-)) (defun screen_res (/ s i is) (setq s (vlax-invoke (vlax-create-object "WbemScripting.SWbemLocator") 'ConnectServer nil nil nil nil nil nil nil) is (vlax-invoke s 'ExecQuery "SELECT CurrentHorizontalResolution, CurrentVerticalResolution FROM Win32_VideoController")) (vlax-for i is (vlax-get i 'CurrentHorizontalResolution))) ;;; generate number (gnum 1 5) -> '(1 2 3 4 5) (defun gnum (s e / i l) (and (numberp s)(numberp e)(setq i s)(while (<= i e)(setq l (cons i l) i (1+ i)))) (reverse l)) ;;; i = startnumber n = number of numbers , d = difference (gnl- 100 6 12) -> (100 88 76 64 52 40) (defun gnl- (i n d / l) (setq l (list i))(repeat (1- n)(setq l (cons (setq i (- i d)) l)))(reverse l)) ;;; found this old lisp (grtxt.lsp) , don't know author but all credits are for this human from earth ;;; text string / coordinate point / color / angle justificationz ;;; *** UPPER CASE ONLY *** (grtxt (STRCASE "Rob") (getvar "viewctr") 1 0 "M") (defun grtxt (ts cp cl a j / vp ltb i xp z c p1 p2 lp ld n al) ;;; vertex points (setq vp '(( 1 ( 0.50 0.25))( 2 ( 0.50 0.55))( 3 ( 0.50 0.85))( 4 ( 0.50 1.00))( 5 ( 0.25 1.00)) ( 6 ( 0.00 1.00))( 7 (-0.25 1.00))( 8 (-0.50 1.00))( 9 (-0.50 0.85))(10 (-0.50 0.55)) (11 (-0.50 0.25))(12 (-0.50 0.10))(13 (-0.25 0.10))(14 ( 0.00 0.10))(15 ( 0.25 0.10)) (16 ( 0.50 0.10))(17 ( 0.50 -0.05))(18 ( 0.50 -0.45))(19 ( 0.50 -0.85))(20 ( 0.50 -1.00)) (21 ( 0.25 -1.00))(22 ( 0.00 -1.00))(23 (-0.25 -1.00))(24 (-0.50 -1.00))(25 (-0.50 -0.85)) (26 (-0.50 -0.40))(27 (-0.50 -0.05))(30 ( 0.35 0.85))(31 (-0.35 0.85))(32 (-0.35 -0.85)) (33 ( 0.35 -0.85))(40 ( 0.25 0.35))(41 (-0.25 0.35))(42 ( 0.25 -0.15))(43 (-0.25 -0.15)) (44 ( 0.00 0.45))(45 ( 0.00 -0.25))(50 ( 0.30 0.20))(51 ( 0.30 0.35))(52 ( 0.20 0.35)) (53 ( 0.20 0.20))(54 ( 0.30 0.10))(55 ( 0.30 -0.10))(56 ( 0.20 -0.10))(57 ( 0.20 0.10)) (60 (-0.30 0.20))(61 (-0.30 0.35))(62 (-0.20 0.35))(63 (-0.20 0.20))(64 (-0.30 0.10)) (65 (-0.30 -0.10))(66 (-0.20 -0.10))(67 (-0.20 0.10)))) ;;; letter table (setq ltb '(("A" 24 9 7 5 3 20 16 12) ("B" 12 15 1 3 5 8 24 21 19 17 15) ("C" 3 5 7 9 25 23 21 19) ("D" 3 5 8 24 21 19 3) ("E" 4 8 12 15 12 24 20) ("F" 4 8 12 15 12 24) ("G" 3 5 7 9 25 23 21 19 16 14) ("H" 20 -4 8 -24 16 12) ("I" 7 5 6 22 23 21) ("J" 4 19 21 23 25) ("K" 8 24 12 13 4 13 20) ("L" 8 24 20) ("M" 24 8 14 4 20) ("N" 24 8 20 4) ("O" 3 5 7 9 25 23 21 19 3) ("P" 12 15 1 3 5 8 24) ("Q" 3 5 7 9 25 23 21 19 3 -19 20 45) ("R" 20 14 12 15 1 3 5 8 24) ("S" 3 5 7 9 11 13 15 17 19 21 23 25) ("T" 4 8 6 22) ("U" 8 25 23 21 19 4 20) ("V" 8 22 4) ("W" 8 23 14 21 4) ("X" 4 -24 8 20) ("Y" 8 14 22 14 4) ("Z" 8 4 24 20) ("0" 3 5 7 9 25 23 21 19 -3 4 24) ("1" 31 7 6 22 21 23) ("2" 9 7 5 3 1 15 13 27 24 20) ("3" 9 7 5 3 1 15 13 15 17 19 21 23 25) ("4" 8 12 16 15 5 21) ("5" 4 8 12 15 17 19 21 23 25) ("6" 3 5 7 9 25 23 21 19 17 15 12) ("7" 8 4 22) ("8" 3 5 7 9 11 13 27 25 23 21 19 17 15 13 15 1 3) ("9" 25 23 21 19 3 5 7 9 11 13 16) ("<" 4 12 20) (">" 8 16 24) ("," 33 21) ("." 19 20 21 33 19) ("\'" 4 30) ("\"" 4 -30 7 31) (";" 50 51 52 53 -50 54 55 56 57 55 45) (":" 50 51 52 53 -50 54 55 56 57 55) ("\\" 8 20) ("/" 4 24) ("?" 11 10 7 5 2 1 45 22) ("|" 6 -44 45 22) ("+" 44 -45 13 15) ("=" 40 -41 43 42) ("-" 13 15) ("_" 20 24) (")" 6 2 18 22) ("(" 6 10 26 22) ("*" 40 -43 41 -42 45 44) ("&" 21 31 7 6 26 25 23 16) ("^" 10 6 2) ("%" 57 54 55 56 -57 63 60 61 62 -63 5 24) ("$" 3 5 7 9 11 13 15 17 19 21 23 25 -26 22 6) ("#" 24 -6 22 -4 1 -11 17 27) ("@" 42 15 40 44 41 13 43 45 42 17 3 5 7 9 25 23 21 19) ("!" 6 -45 22 22) ("~" 9 31 44 40 2) ("`" 8 31) ("[" 6 8 24 22) ("]" 6 4 20 22) ("{" 6 7 41 12 43 23 22) ("}" 6 5 40 16 42 21 22) (""))) ;;; text height (setq z (/ (getvar "VIEWSIZE") (cadr (getvar "SCREENSIZE")) 0.2)) (cond ;;; left justification ((eq (strcase (substr j 1 1)) "L") (setq xp (list (+ (car cp) z) (cadr cp)) i 1)) ;;; middle justification ((eq (strcase (substr j 1 1)) "M") (setq xp (list (- (car cp) (* z (strlen ts) 0.5)) (cadr cp)) i 1)) ;;; right justification ((eq (strcase (substr j 1 1)) "R") (setq xp (list (- (car cp) (* z (strlen ts) 1.5)) (cadr cp)) i 1)) ) (repeat (strlen ts) ;;; each charachter / line point list / letter point def (setq c (substr ts i 1) lp '() ld (cdr (assoc c ltb))) (while (> (length ld) 1) (setq p1 (cadr (assoc (abs (nth 0 ld)) vp)) p2 (cadr (assoc (abs (nth 1 ld)) vp)) p1 (mapcar '* (list z z) p1) p2 (mapcar '* (list z z) p2) p1 (mapcar '+ xp p1) p2 (mapcar '+ xp p2) lp (append lp (list (if (minusp (nth 0 ld)) 0 cl) p1 p2)) ld (cdr ld)) ) ;;; add rotation angle (setq n 0 al nil) (repeat (/ (length lp) 3) (setq al (cons (nth n lp) al) al (cons (polar cp (+ a (angle cp (nth (+ n 1) lp))) (distance cp (nth (+ n 1) lp))) al) al (cons (polar cp (+ a (angle cp (nth (+ n 2) lp))) (distance cp (nth (+ n 2) lp))) al)) (setq n (+ n 3)) ) (and al (grvecs (reverse al))) (setq xp (list (+ (car xp) (* z 1.5)) (cadr xp)) i (1+ i)) ) (prin1) ) ;;; probably won't need tracking mode (cut-copy-paste you know...) (defun RlxGrMenu_Get_Cell_ID (xl yl / inp dev tpt prev-tpt mark-current-tracking-point cell-id prev-cell-id prev-view-size cur-view-size rtn) (princ "\nEsc/Q/Rmouse to cancel, zoom with E(extend), Z(oom) or + / -") (setq prev-view-size (getvar "viewsize")) (while gr-loop (setq cur-view-size (getvar "viewsize")) (setq inp (vl-catch-all-apply 'grread (list T 8 1))) (if (vl-catch-all-error-p inp) (progn (setq gr-loop nil inp nil)(redraw)) (progn (setq dev (car inp) tpt (cadr inp)) (cond ;;; space , q or Q (Quit) ((and (= dev 2) (member (last inp) '(32 113 81))) (redraw)(setq gr-loop nil) ) ;;; point selection (3 (221.882 173.853 0.0)) ((= dev 3) (if (setq rtn (find_cell tpt xl yl)) (progn ;(alert (setq app (nth (1- (atoi rtn)) app-list))) (princ (strcat "\nLaunching : " (setq app (nth (1- (atoi rtn)) app-list)))) (setq gr-loop nil) ) ) ) ;;; device tracking point (probably don't need tracking mode) ((= dev 5) ;;; if mouse moved (if (or (/= (car prev-tpt)(car tpt)) (/= (cadr prev-tpt)(cadr tpt))) (progn (setq prev-tpt tpt ))) (if (not (equal cur-view-size prev-view-size)) (progn (setq prev-view-size cur-view-size) (redraw_menu) ) ) ) ; user pressed E of e ((member inp '((2 69)(2 101))) (command "zoom" "e")) ; user clicked R-mouse button, pressed enter or space (done selecting) ((or (equal (car inp) 25)(member inp '((2 13)(2 32)))) (setq gr-loop nil)) ; user pressed + ((equal inp '(2 43)) (vl-cmdf "zoom" "2x")) ; user pressed - ((equal inp '(2 45)) (vl-cmdf "zoom" ".5x")) ; user pressed z or Z ((member inp '((2 122)(2 90))) (vl-cmdf "'zoom" "")) ) ) ) ) (princ) ) ;;; pt = point , xl = x-list , yl = y-list ;;; scribble : (< 1 2 3) , (> 3 2 1) , (cdr (vl-sort '(1 2 3 4 5) '>)) -> '(4 3 2 1) (defun find_cell ( pt xl yl / ptx pty y-lst l n hit) (setq n nil hit nil ptx (car pt) pty (cadr pt) y-list (vl-sort (append yl (list 0)) '>)) (if (< (car xl) ptx (cadr xl)) (mapcar '(lambda (y)(if (and (not hit) (> pty y)) (setq hit T n (vl-position y y-list)))) y-list)) (if n (itoa (1+ n))) ) ;;; program assumes no self starting routines and start command is "C:" + app name (defun RlxGrMenu_Start_App (app / fn) (cond ((setq fn (findfile (strcat app ".lsp"))) (redraw)(load fn)(eval (read (strcat "(C:" app ")")))) ((wcmatch (strcase app) "QUIT")(princ "\nBye bye")(redraw)) ((wcmatch (strcase app) "CONFIG")(princ "\nUnder construction")(redraw)) (t (redraw)(princ (strcat "\nUnable to load " (vl-princ-to-string app) " ...bye"))) ) ) ;;; future... ;;; RlxGrMenu - Rlx Jul/25 (defun RlxGrMenu_future ( / ;;; global variables scr-res cell-rows cell-cols cell-col cell-id app-list ;;; display parameters like viewctr/viewsize/screensize (count_calcula) vc vs ss dx dy x- x+ y- y+ ip vc-x vc-y txt-h ;;; registry variables RlxGrMenu-nof-cell-rows RlxGrMenu-nof-cell-cols RlxGrMenu-app-list ) ;;; mostly not used because for now I just just one column with 10 rows (setq scr-res (screen_res) rows 3 cols 3 cell-col 141 cell-id 1) (count_calcula) (setq app-list (list "LC" "VT" "RlxBatch" "USB" "FX" "FIP" "LspUser1" "LspUser2" "LspUser2" "Spare")) (RlxGrMenu_Init) (RlxGrMenu_Doit) (RlxGrMenu_Exit) (princ) ) (defun RlxGrMenu_Init ()(princ "\nUnder construction - RlxGrMenu_Init ")) (defun RlxGrMenu_Doit ()(princ "\nUnder construction - RlxGrMenu_Doit ")) (defun RlxGrMenu_Exit ()(princ "\nUnder construction - RlxGrMenu_Exit ")) (defun c:RlxGrMenu ()(draw_menu)) (defun c:t1 ()(draw_menu)) (defun t1 ()(draw_menu))

however... quite aggressive asking for the credit here today. Nicer ways to go "Hey, this was originally my code, can you credit me" and perhaps if possible the link to the original code to help the OP out. Code gets shared, the links and credits lost. Always good practice to add links to the sources and credits in case there are thing you want to go back and understand more from any discussions. Having said that though, upload code, you have no control of it's use and I am not sure I'd want credited with a base code that is mine and then heavily modified, or just a snippet of my code included in something larger without me doing checks and testing.

Here's a simpe solution that doesn't use LISP. Change the elevation of one of the polylines to 1.0 then use the loft command to create asurface. Section the resulting surface with an XY plane at 0,0,0.5.

Long time I'm nothing written in Lisp. So, I hoppe it will serve you. Also, you can saw a short video how it works. The code: (prompt "\nTo run a LISP type: yval") (princ) (defun c:yval ( / old_osmode pline spt ept spt_pline ept_pline datum_line yval_datum_line yval_start_pline yval_end_pline txt_position ang_spt_pline ang_ept_pline datum_value intersecting_lines len i int_pt_pline int_pt_datum_line dist yval_position ang) (setq old_osmode (getvar 'osmode)) (setq pline (car (entsel "\nSelect Polyline to get an Elevation:"))) (while (or (equal pline nil) (not (equal "LWPOLYLINE" (cdr (assoc 0 (entget pline)))))) (prompt "\nSelected entity must be LWPOLYLINE. Try again...\n") (setq pline (car (entsel "\nSelect Polyline to get an Elevation:"))) ) (setq spt_pline (vlax-curve-getStartPoint pline) ept_pline (vlax-curve-getEndPoint pline) ) (if (> (car spt_pline) (car ept_pline)) (progn (command-s "_reverse" pline "") (setq spt_pline (vlax-curve-getStartPoint pline) ept_pline (vlax-curve-getEndPoint pline) ) ) ) (setq datum_line (car (entsel "\nSelect Datum Line:"))) (while (or (equal datum_line nil) (not (equal "LINE" (cdr (assoc 0 (entget datum_line)))))) (prompt "\nSelected entity must be LINE. Try again...\n") (setq datum_line (car (entsel "\nSelect Datum Line:\n"))) ) (setq yval_datum_line (cadr (vlax-curve-getStartPoint datum_line)) yval_start_pline (- (cadr spt_pline) yval_datum_line) yval_end_pline (- (cadr ept_pline) yval_datum_line) ) (setq txt_position (getpoint "\nPick the lower-left corner of the box for elevation value:\n")) (setvar 'osmode 0) (setq datum_value (car (entsel "\nSelect Datum value:"))) (if (equal "MTEXT" (cdr (assoc 0 (entget datum_value)))) (setq datum_value (LM:UnFormat (cdr (assoc 1 (entget datum_value))) T)) (setq datum_value (cdr (assoc 1 (entget datum_value)))) ) (setq ang_spt_pline (angle (setq yval_position_one (list (car spt_pline) (+ (cadr txt_position) 0.1) (caddr txt_position))) spt_pline) ang_ept_pline (angle (setq yval_position_two (list (car ept_pline) (+ (cadr txt_position) 0.1) (caddr txt_position))) ept_pline) ) (entmake (list (cons 0 "TEXT") (cons 100 "AcDbEntity") (cons 100 "AcDbText") (cons 1 (rtos (+ yval_start_pline (atof datum_value)) 2 3)) (cons 10 yval_position_one) (cons 11 yval_position_one) (cons 40 0.35) (cons 72 0) (cons 73 2) (cons 50 ang_spt_pline))) (entmake (list (cons 0 "TEXT") (cons 100 "AcDbEntity") (cons 100 "AcDbText") (cons 1 (rtos (+ yval_end_pline (atof datum_value)) 2 3)) (cons 10 yval_position_two) (cons 11 yval_position_two) (cons 40 0.35) (cons 72 0) (cons 73 2) (cons 50 ang_ept_pline))) (princ "\nSelect intersecting lines:") (setq intersecting_lines (ssget (list (cons 0 "LINE") (cons 8 "DATUM-GRID"))) len (sslength intersecting_lines) i 0 ) (while (< i len) (setq int_pt_pline (vlax-safearray->list (vlax-variant-value (vla-IntersectWith (vlax-ename->vla-object pline) (vlax-ename->vla-object (ssname intersecting_lines i)) acExtendNone))) int_pt_datum_line (vlax-safearray->list (vlax-variant-value (vla-IntersectWith (vlax-ename->vla-object datum_line) (vlax-ename->vla-object (ssname intersecting_lines i)) acExtendNone))) dist (distance int_pt_pline int_pt_datum_line) yval_position (list (car int_pt_pline) (+ (cadr txt_position) 0.1) (caddr txt_position)) ang (angle yval_position int_pt_pline) i (1+ i) ) (entmake (list (cons 0 "TEXT") (cons 100 "AcDbEntity") (cons 100 "AcDbText") (cons 1 (rtos (+ dist (atof datum_value)) 2 3)) (cons 10 yval_position) (cons 11 yval_position) (cons 40 0.35) (cons 72 0) (cons 73 2) (cons 50 ang_spt_pline))) ) (setvar 'osmode old_osmode) (prompt "\nAn elevation values were added!") (princ) ) ;;-------------------=={ UnFormat String }==------------------;; ;; ;; ;; Returns a string with all MText formatting codes removed. ;; ;;------------------------------------------------------------;; ;; Author: Lee Mac, Copyright © 2011 - www.lee-mac.com ;; ;;------------------------------------------------------------;; ;; Arguments: ;; ;; str - String to Process ;; ;; mtx - MText Flag (T if string is for use in MText) ;; ;;------------------------------------------------------------;; ;; Returns: String with formatting codes removed ;; ;;------------------------------------------------------------;; (defun LM:UnFormat ( str mtx / _replace rx ) (vl-load-com) (defun _replace ( new old str ) (vlax-put-property rx 'pattern old) (vlax-invoke rx 'replace str new) ) (if (setq rx (vlax-get-or-create-object "VBScript.RegExp")) (progn (setq str (vl-catch-all-apply (function (lambda ( ) (vlax-put-property rx 'global actrue) (vlax-put-property rx 'multiline actrue) (vlax-put-property rx 'ignorecase acfalse) (foreach pair '( ("\032" . "\\\\\\\\") (" " . "\\\\P|\\n|\\t") ("$1" . "\\\\(\\\\[ACcFfHLlOopQTW])|\\\\[ACcFfHLlOopQTW][^\\\\;]*;|\\\\[ACcFfHLlOopQTW]") ("$1$2/$3" . "([^\\\\])\\\\S([^;]*)[/#\\^]([^;]*);") ("$1$2" . "\\\\(\\\\S)|[\\\\](})|}") ("$1" . "[\\\\]({)|{") ) (setq str (_replace (car pair) (cdr pair) str)) ) (if mtx (_replace "\\\\" "\032" (_replace "\\$1$2$3" "(\\\\[ACcFfHLlOoPpQSTW])|({)|(})" str)) (_replace "\\" "\032" str) ) ) ) ) ) (vlax-release-object rx) (if (null (vl-catch-all-error-p str)) str ) ) ) ) The short video: YVAL.mp4 Best regards.

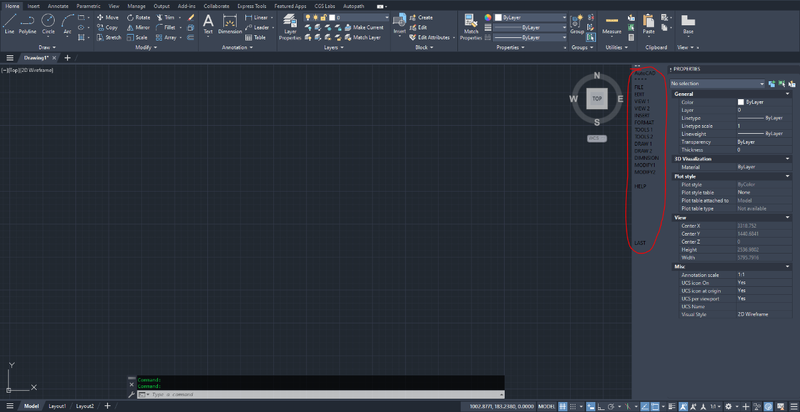

I wanted more buttons but ran out of space so just created an alternative reallity for myself. It's very basic / simple and still a work in progress but as usual time is not on my side especially now my boss in away for 4 weeks and he probably was afraid I would get bored and start to play with myself so he left me with a load of work. Update : because this routine uses grread you can't run any other (transparent) commands. Thats why I added 'hot' keys for zoom. E for extents, Z for zoom , + & - for zooming in & out. Maybe it's useful , maybe it's not...bite me. ;;; RlxGrMenu - 2025-07-09 - Just a funny / very basic little 'toolbar' ;;; It draws a column with 12 rows. Config is not working yet, quit by click or by typing Q or q. ;;; I've run a little out of button-space so wanted an out of the box solution to this problem. ;;; this is just a way to run my 10 most used lisp routines, nothing more , nothing less. ;;; Substitute the names in app-list (setq app-list '("LC" "VT" ...) with names from your own favorite apps ;;; apps have to be in search path so (findfile (strcat "MyApp" ".lsp") should work'. ;;; Also app should not be self executing and the start command should be same as app name ;;; If your app is named "MyApp" this routine loads app if found and starts it with (eval (read (strcat "C:" "Myapp"))) ;;; have fun ;;; ------------------------------ ;;; ;;; |S1 S2| ;;; ;;; | -------------- ----- [a]| ;;; ;;; | |E1 E2| [b]| ;;; ;;; | | | [c]| ;;; ;;; | | | [d]| ;;; ;;; | |E3 E4| [e]| ;;; ;;; | -------------------- [f]| ;;; ;;; |S3 S4| ;;; ;;; ------------------------------ ;;; ;;; (count_calcula) : ;;; values are effected by resize window : vc , vs , ss , x+ , x- , y+ , y- , P1-P4 ;;; screen corner points : S1 = (x- y+) , S2 (x+ y+) , S3 (x- y-) , S4 (x+ y-) ;;; extents corner points : E1 - E5 extmin / extmax ;;; viewsize : vs - height current viewport (drawing units) (i.e. 300 / 386 after resize) ;;; screen size : ss (1187 532) (pixels) after max acad window : vs = 386 , ss = (1840 685) ;;; - 12 rows, 1-10 for user , 11 for confid , 12 for exit ;;; - height each row = (fix (/ (- y+ y-) 12)) , for example 25 ;;; - row width = row height , lets call it cell-size ;;; cell-ip = (list (- (fix x+) cell-size) (fix y+)) ;;; vector draw cell-ip -> cell-size<0, (* cell-size 12)<270 , cell-size<180 , (* cell-size 12)<90 (defun draw_menu ( / ip-x ip-y cell-h cell-w cell-ul cell-ll cell-ur cell-lr y-list ctr-x app-list app gr-loop tblc tbtc) (setq app-list (list "LC" "VT" "RlxBatch" "USB" "FX" "FIP" "LspUser1" "LspUser2" "LspUser2" "Spare" "Config" "Quit")) (setq gr-loop T tblc 7 tbtc 7) ;;; toolbar line color / toolbar text colot (redraw_menu) ;;; launch app (if app (RlxGrMenu_Start_App app)) ) (defun redraw_menu () (redraw) ;;; get live screen data (count_calcula) ;(setq app-list (list "LC" "VT" "RlxBatch" "USB" "FX" "FIP" "LspUser1" "LspUser2" "LspUser2" "Spare" "Config" "Quit")) ;(setq cell-h (fix (/ (- y+ y-) 12)) cell-w (* cell-h 2)) ;;;; corner points ;(setq cell-ul (list (- (fix x+) cell-w) (fix y+)) cell-ur (list (fix x+) (fix y+)) ; cell-ll (list (- (fix x+) cell-w) (fix y-)) cell-lr (list (fix x+) (fix y-))) (setq cell-h (/ (- y+ y-) 12) cell-w (* cell-h 2)) ;;; corner points (setq cell-ul (list (- x+ cell-w) y+) cell-ur (list x+ y+) cell-ll (list (- x+ cell-w) y-) cell-lr (list x+ y-)) ;;; draw the outlines (grdraw cell-ll cell-ul tblc)(grdraw cell-ul cell-ur tblc)(grdraw cell-ur cell-lr tblc)(grdraw cell-lr cell-ll tblc) ;;; get y values for all horizontal separators (setq x-list (list (car cell-ll) (car cell-lr)) y-list (gnl- (- (fix y+) cell-h) 11 cell-h)) (foreach y y-list (grdraw (list (car cell-ll) y) (list (car cell-lr) y) tblc)) ;;; label the cell (setq ctr-x (+ (car cell-ll) (* cell-w 0.5))) (mapcar '(lambda (s y) (grtxt (strcase s) (list ctr-x (+ y (* cell-h 0.5))) tbtc 0 "M")) app-list (append y-list (list (- (last y-list) cell-h)))) (if gr-loop (RlxGrMenu_Get_Cell_ID x-list y-list)) (princ) ) ;;; (re) calculate display parameters (count_calcula) (defun count_calcula () (setq vc (getvar "VIEWCTR") vs (getvar "VIEWSIZE") ss (getvar "SCREENSIZE") dx (* vs (/ (car ss) (cadr ss)) 0.5) dy (* vs 0.5) x- (- (car vc) dx) y- (- (cadr vc) dy) x+ (+ (car vc) dx) y+ (+ (cadr vc) dy) ip (getvar "viewctr") vc-x (car ip) vc-y (cadr ip) txt-h (/ (getvar "VIEWSIZE") 100.0))) ;;; (getvar "extmin") (getvar "extmax") (setq dvx (- x+ x-) dvy (- y+ y-)) (defun screen_res (/ s i is) (setq s (vlax-invoke (vlax-create-object "WbemScripting.SWbemLocator") 'ConnectServer nil nil nil nil nil nil nil) is (vlax-invoke s 'ExecQuery "SELECT CurrentHorizontalResolution, CurrentVerticalResolution FROM Win32_VideoController")) (vlax-for i is (vlax-get i 'CurrentHorizontalResolution))) ;;; get aspect ratio current screen (defun asp_rat () (rtos (* 1.5 (/ (getvar "VIEWSIZE") (cadr (getvar "SCREENSIZE")))))) ;;; determine status caps lock for when typing filter (even though filter uses strcase) (defun case (s) (cond ((null s) "") ((not (eq (type s) 'STR)) "") ((null capslock) s) (t (if (= (acet-sys-keystate 20) 0) (strcase s t) (strcase s))))) ;;; generate number (gnum 1 5) -> '(1 2 3 4 5) (defun gnum (s e / i l) (and (numberp s)(numberp e)(setq i s)(while (<= i e)(setq l (cons i l) i (1+ i)))) (reverse l)) ;;; i = startnumber n = number of numbers , d = difference (gnl- 100 6 12) -> (100 88 76 64 52 40) (defun gnl- (i n d / l) (setq l (list i))(repeat (1- n)(setq l (cons (setq i (- i d)) l)))(reverse l)) ;;; found this old lisp (grtxt.lsp) , don't know author but all credits are for this human from earth ;;; text string / coordinate point / color / angle justificationz ;;; *** UPPER CASE ONLY *** (grtxt (STRCASE "Rob") (getvar "viewctr") 1 0 "M") (defun grtxt (ts cp cl a j / vp ltb i xp z c p1 p2 lp ld n al) ;;; vertex points (setq vp '(( 1 ( 0.50 0.25))( 2 ( 0.50 0.55))( 3 ( 0.50 0.85))( 4 ( 0.50 1.00))( 5 ( 0.25 1.00)) ( 6 ( 0.00 1.00))( 7 (-0.25 1.00))( 8 (-0.50 1.00))( 9 (-0.50 0.85))(10 (-0.50 0.55)) (11 (-0.50 0.25))(12 (-0.50 0.10))(13 (-0.25 0.10))(14 ( 0.00 0.10))(15 ( 0.25 0.10)) (16 ( 0.50 0.10))(17 ( 0.50 -0.05))(18 ( 0.50 -0.45))(19 ( 0.50 -0.85))(20 ( 0.50 -1.00)) (21 ( 0.25 -1.00))(22 ( 0.00 -1.00))(23 (-0.25 -1.00))(24 (-0.50 -1.00))(25 (-0.50 -0.85)) (26 (-0.50 -0.40))(27 (-0.50 -0.05))(30 ( 0.35 0.85))(31 (-0.35 0.85))(32 (-0.35 -0.85)) (33 ( 0.35 -0.85))(40 ( 0.25 0.35))(41 (-0.25 0.35))(42 ( 0.25 -0.15))(43 (-0.25 -0.15)) (44 ( 0.00 0.45))(45 ( 0.00 -0.25))(50 ( 0.30 0.20))(51 ( 0.30 0.35))(52 ( 0.20 0.35)) (53 ( 0.20 0.20))(54 ( 0.30 0.10))(55 ( 0.30 -0.10))(56 ( 0.20 -0.10))(57 ( 0.20 0.10)) (60 (-0.30 0.20))(61 (-0.30 0.35))(62 (-0.20 0.35))(63 (-0.20 0.20))(64 (-0.30 0.10)) (65 (-0.30 -0.10))(66 (-0.20 -0.10))(67 (-0.20 0.10)))) ;;; letter table (setq ltb '(("A" 24 9 7 5 3 20 16 12) ("B" 12 15 1 3 5 8 24 21 19 17 15) ("C" 3 5 7 9 25 23 21 19) ("D" 3 5 8 24 21 19 3) ("E" 4 8 12 15 12 24 20) ("F" 4 8 12 15 12 24) ("G" 3 5 7 9 25 23 21 19 16 14) ("H" 20 -4 8 -24 16 12) ("I" 7 5 6 22 23 21) ("J" 4 19 21 23 25) ("K" 8 24 12 13 4 13 20) ("L" 8 24 20) ("M" 24 8 14 4 20) ("N" 24 8 20 4) ("O" 3 5 7 9 25 23 21 19 3) ("P" 12 15 1 3 5 8 24) ("Q" 3 5 7 9 25 23 21 19 3 -19 20 45) ("R" 20 14 12 15 1 3 5 8 24) ("S" 3 5 7 9 11 13 15 17 19 21 23 25) ("T" 4 8 6 22) ("U" 8 25 23 21 19 4 20) ("V" 8 22 4) ("W" 8 23 14 21 4) ("X" 4 -24 8 20) ("Y" 8 14 22 14 4) ("Z" 8 4 24 20) ("0" 3 5 7 9 25 23 21 19 -3 4 24) ("1" 31 7 6 22 21 23) ("2" 9 7 5 3 1 15 13 27 24 20) ("3" 9 7 5 3 1 15 13 15 17 19 21 23 25) ("4" 8 12 16 15 5 21) ("5" 4 8 12 15 17 19 21 23 25) ("6" 3 5 7 9 25 23 21 19 17 15 12) ("7" 8 4 22) ("8" 3 5 7 9 11 13 27 25 23 21 19 17 15 13 15 1 3) ("9" 25 23 21 19 3 5 7 9 11 13 16) ("<" 4 12 20) (">" 8 16 24) ("," 33 21) ("." 19 20 21 33 19) ("\'" 4 30) ("\"" 4 -30 7 31) (";" 50 51 52 53 -50 54 55 56 57 55 45) (":" 50 51 52 53 -50 54 55 56 57 55) ("\\" 8 20) ("/" 4 24) ("?" 11 10 7 5 2 1 45 22) ("|" 6 -44 45 22) ("+" 44 -45 13 15) ("=" 40 -41 43 42) ("-" 13 15) ("_" 20 24) (")" 6 2 18 22) ("(" 6 10 26 22) ("*" 40 -43 41 -42 45 44) ("&" 21 31 7 6 26 25 23 16) ("^" 10 6 2) ("%" 57 54 55 56 -57 63 60 61 62 -63 5 24) ("$" 3 5 7 9 11 13 15 17 19 21 23 25 -26 22 6) ("#" 24 -6 22 -4 1 -11 17 27) ("@" 42 15 40 44 41 13 43 45 42 17 3 5 7 9 25 23 21 19) ("!" 6 -45 22 22) ("~" 9 31 44 40 2) ("`" 8 31) ("[" 6 8 24 22) ("]" 6 4 20 22) ("{" 6 7 41 12 43 23 22) ("}" 6 5 40 16 42 21 22) (""))) ;;; text height (setq z (/ (getvar "VIEWSIZE") (cadr (getvar "SCREENSIZE")) 0.2)) (cond ;;; left justification ((eq (strcase (substr j 1 1)) "L") (setq xp (list (+ (car cp) z) (cadr cp)) i 1)) ;;; middle justification ((eq (strcase (substr j 1 1)) "M") (setq xp (list (- (car cp) (* z (strlen ts) 0.5)) (cadr cp)) i 1)) ;;; right justification ((eq (strcase (substr j 1 1)) "R") (setq xp (list (- (car cp) (* z (strlen ts) 1.5)) (cadr cp)) i 1)) ) (repeat (strlen ts) ;;; each charachter / line point list / letter point def (setq c (substr ts i 1) lp '() ld (cdr (assoc c ltb))) (while (> (length ld) 1) (setq p1 (cadr (assoc (abs (nth 0 ld)) vp)) p2 (cadr (assoc (abs (nth 1 ld)) vp)) p1 (mapcar '* (list z z) p1) p2 (mapcar '* (list z z) p2) p1 (mapcar '+ xp p1) p2 (mapcar '+ xp p2) lp (append lp (list (if (minusp (nth 0 ld)) 0 cl) p1 p2)) ld (cdr ld)) ) ;;; add rotation angle (setq n 0 al nil) (repeat (/ (length lp) 3) (setq al (cons (nth n lp) al) al (cons (polar cp (+ a (angle cp (nth (+ n 1) lp))) (distance cp (nth (+ n 1) lp))) al) al (cons (polar cp (+ a (angle cp (nth (+ n 2) lp))) (distance cp (nth (+ n 2) lp))) al)) (setq n (+ n 3)) ) (and al (grvecs (reverse al))) (setq xp (list (+ (car xp) (* z 1.5)) (cadr xp)) i (1+ i)) ) (prin1) ) ;;; probably won't need tracking mode (cut-copy-paste you know...) (defun RlxGrMenu_Get_Cell_ID (xl yl / inp dev tpt prev-tpt mark-current-tracking-point cell-id prev-cell-id prev-view-size cur-view-size rtn) (princ "\rEsc/Q/Rmouse to cancel, zoom with E(extend), Z(oom) or + / -") (setq prev-view-size (getvar "viewsize")) (while gr-loop (setq cur-view-size (getvar "viewsize")) (setq inp (vl-catch-all-apply 'grread (list T 8 1))) (if (vl-catch-all-error-p inp) (progn (setq gr-loop nil inp nil)(redraw)) (progn (setq dev (car inp) tpt (cadr inp)) (cond ;;; space , q or Q (Quit) ((and (= dev 2) (member (last inp) '(32 113 81))) (redraw)(setq gr-loop nil) ) ;;; point selection (3 (221.882 173.853 0.0)) ((= dev 3) (if (setq rtn (find_cell tpt xl yl)) (progn ;(alert (setq app (nth (1- (atoi rtn)) app-list))) (princ (strcat "\nLaunching : " (setq app (nth (1- (atoi rtn)) app-list)))) (setq gr-loop nil) ) ) ) ;;; device tracking point (probably don't need tracking mode) ((= dev 5) ;;; if mouse moved (if (or (/= (car prev-tpt)(car tpt)) (/= (cadr prev-tpt)(cadr tpt))) (progn (setq prev-tpt tpt ))) (if (not (equal cur-view-size prev-view-size)) (progn (setq prev-view-size cur-view-size) (redraw_menu) ) ) ) ; user pressed E of e ((member inp '((2 69)(2 101))) (command "zoom" "e")) ; user clicked R-mouse button, pressed enter or space (done selecting) ((or (equal (car inp) 25)(member inp '((2 13)(2 32)))) (redraw)(setq gr-loop nil app "Quit")) ; user pressed + ((equal inp '(2 43)) (vl-cmdf "zoom" "2x")) ; user pressed - ((equal inp '(2 45)) (vl-cmdf "zoom" ".5x")) ; user pressed z or Z ((member inp '((2 122)(2 90))) (vl-cmdf "'zoom" "")) ) ) ) ) (princ) ) ;;; pt = point , xl = x-list , yl = y-list ;;; scribble : (< 1 2 3) , (> 3 2 1) , (cdr (vl-sort '(1 2 3 4 5) '>)) -> '(4 3 2 1) (defun find_cell ( pt xl yl / ptx pty y-lst l n hit) (setq n nil hit nil ptx (car pt) pty (cadr pt) y-list (vl-sort (append yl (list 0)) '>)) (if (< (car xl) ptx (cadr xl)) (mapcar '(lambda (y)(if (and (not hit) (> pty y)) (setq hit T n (vl-position y y-list)))) y-list)) (if n (itoa (1+ n))) ) ;;; program assumes no self starting routines and start command is "C:" + app name (defun RlxGrMenu_Start_App (app / fn) (cond ((setq fn (findfile (strcat app ".lsp"))) (redraw)(load fn)(eval (read (strcat "(C:" app ")")))) ((wcmatch (strcase app) "QUIT")(princ "\nBye bye")(redraw)) ((wcmatch (strcase app) "CONFIG")(princ "\nUnder construction")(redraw)) (t (redraw)(princ (strcat "\nUnable to load " (vl-princ-to-string app) " ...bye"))) ) (princ) ) ;;; future... ;;; RlxGrMenu - Rlx Jul/25 (defun RlxGrMenu_future ( / ;;; global variables scr-res cell-rows cell-cols cell-col cell-id app-list ;;; display parameters like viewctr/viewsize/screensize (count_calcula) vc vs ss dx dy x- x+ y- y+ ip vc-x vc-y txt-h ;;; registry variables RlxGrMenu-nof-cell-rows RlxGrMenu-nof-cell-cols RlxGrMenu-app-list ) ;;; mostly not used because for now I just just one column with 10 rows (setq scr-res (screen_res) rows 3 cols 3 cell-col 141 cell-id 1) (count_calcula) (setq app-list (list "LC" "VT" "RlxBatch" "USB" "FX" "FIP" "LspUser1" "LspUser2" "LspUser2" "Spare")) (RlxGrMenu_Init) (RlxGrMenu_Doit) (RlxGrMenu_Exit) (princ) ) (defun RlxGrMenu_Init ()(princ "\nUnder construction - RlxGrMenu_Init ")) (defun RlxGrMenu_Doit ()(princ "\nUnder construction - RlxGrMenu_Doit ")) (defun RlxGrMenu_Exit ()(princ "\nUnder construction - RlxGrMenu_Exit ")) (defun c:RlxGrMenu ()(draw_menu)) (defun c:t1 ()(draw_menu)) (defun t1 ()(draw_menu))

I managed to get rid of the flickering but keeping snap enabled. Here is the new version: offset.lsp Instead of hiding the polyline before doing the osnap, I now keep the polyline hidden and render it with grvecs instead. Therefore no snapping to itself and no more flickering!

oh yeah , the good ol' days of AutoCad , think I started around version 2.22 , 1987/88 or something. In that time only pull down & screen menu's , no xrefs , no model / paper space yet, IBM screens and keyboards you could knock out T-Rex with. Downside is , part of you will always be stucked in the good old days. I probably know only a couple % there is to know about AutoCad , maybe even less. I still go back to the old *mnu files for my toolbars because I still don't like ribbons. I want my buttons simple and always on the same location. But I do like colored buttons so now & again I upgrade one of my apps , this one is almost 30 years old and I couldn't live without it

Incremental Numbering Suite Version 4.0 Released. The main feature of the new version is the introduction of a dedicated 'Content Builder' to facilitate the construction of an incrementing string from an arbitrary number of incrementing and/or static components. With this feature, the user now has the ability to independently control the increment amount and increment frequency for each component of the string, enabling multiple sections of the string to increment by different amounts and at different rates to one another. The new version also introduces the ability to load & save application configurations, streamlining the operation of the program for multiple numbering systems.

https://www.theswamp.org/index.php?topic=30650.msg378483#msg378483

Better armored version, proof against extravagant users ;******************* p o r d e s í a r g o ******************** ;************************ G L A V C V S ************************* ;************************** F E C I T *************************** (defun c:mueveSegmto (/ lstSg dist i se lado op pr pr1 pa pb p1 p2 p3 p4 sgC r aC aR asr dameSgmtos erroria errores error0) (defun erroria () (defun errores (mens) (setq *error* error0) (prin1) ) (setq error0 *error* *error* errores ) ) (defun asr (p1 p2 p3 / a b) (if (> (abs (- (setq a (angle p1 p2)) (setq b (angle p2 p3)))) PI) (if (< a b) (if (> (+ a PI PI) b) - +) (if (> (- a PI PI) b) - +) ) (if (> a b) - +) ) ) (defun dameSgmtos (x pk / f d p s a tam a1 a2 b1 b2 c1 c2 sa sp) (if (= (cdr (assoc 0 x)) "LWPOLYLINE") (progn (setq tam (* (* (getvar "PICKBOX") (/ (getvar "VIEWSIZE") (cadr (setq ss (getvar "SCREENSIZE"))) ) ) 2 ) x (if (= (rem (cdr (assoc 70 x)) 2) 1) (cons (assoc 10 (reverse x)) x) x) b2 (cdr (assoc 10 (cdr (member (cons 10 (setq b1 (cdr (assoc 10 x)))) x)))) c1 (cdr (assoc 10 (cdr (member (cons 10 (setq c2 (cdr (assoc 10 (reverse x))))) (reverse x))))) ) (while (and (setq a1 (cdr p) a2 f f (cdr (assoc (if pk 10 11) (setq x (cdr (member (setq p (assoc 10 x) ) x)))))) (not (setq i (inters f (cdr p) (polar pk (+ (setq a (angle f (cdr p))) 1.5708) tam) (polar pk (- a 1.5708) tam)) )) ) ) (setq sc (list (cdr p) f) f (cdr (assoc (if pk 10 11) (cdr (member (setq p (assoc 10 x)) x)))) sp (if f (list (cdr p) f) (list b1 b2)) sa (if a1 (list a1 a2) (list c1 c2)) ) (list sa sc sp) ) ) ) (erroria) (setq dist (getreal "\nDistance of traslation (ENTER to get the distance on screen): ")) (if (setq lstSg (dameSgmtos (entget (car (setq se (entsel "\nSelect any segment in LWPOLYLINE...")))) (setq pr (cadr se)))) (if (setq pr1 (getpoint (setq pr i) "\nSide to act...")) (if (setq op (asr (setq p2 (car (setq sgC (cadr lstSg)))) pr pr1)) (setq dist (if dist dist (distance pr1 (inters p2 (setq p3 (cadr sgC)) (polar pr1 (- (setq aR (angle p2 p3)) (/ pi 2)) 9999) (polar pr1 (+ aR (/ pi 2)) 9999) nil)) ) pa (polar p2 (setq a (op (angle p2 (setq p3 (cadr sgC))) (/ pi 2.0))) dist) pb (polar p3 a dist) px1 (inters pa pb (car (car lstSg)) p2 nil) px2 (inters pa pb p3 (cadr (last lstSg)) nil) r (entmod (subst (cons 10 px1) (cons 10 p2) (entget (car se)))) r (entmod (subst (cons 10 px2) (cons 10 p3) (entget (car se)))) ) ) ) (princ "\nSelected object is not LWPOLYLINE....Exiting...") ) (princ) )

@PGia I went out for my 40-50 km bike ride today and I've been thinking about this for a while. I tried OVERKILL-MR and I admit I wasn't able to figure out the right ranges to remove the excess without causing any damage to the rest of the drawing (perhaps someone can prove otherwise). For this reason, in my opinion, I think you should look for another solution. I assume your ultimate goal is to have a clean drawing on which to create a polygon topology. To do this, use '_mapclean' in C3D, activating the options in 'Cleanup Actions': - Delete duplicates - Erase short objects - Break crossing objects - Dissolve pseudonodes Repeat this 2 or 3 times. I don't think this will solve all the problems. But it will leave the drawing ready for you to try creating a polygon topology. The problematic polylines that remain in the drawing will appear with each attempt to create the topology. It's a laborious but safe process. I imagine you're confused because you suddenly have to do something you haven't done before. But I think you'll have no choice but to waste a little time learning.

This related post may be helpful in this regard.

A couple of loose ends to tie up the all-too-fast V.2 release: -Multiple renumbering is currently done based on the order of the objects in the database: this looks ugly if the dispersion is too random. -As PGia has suggested, perhaps I should leave a brief explanation of the code's functionality. So, let's get to it: I've added a couple of improvements to the code that makes up the new version of <<Something different>>, which I've attached below. What's New in Version 2.1 The philosophy of this command is to concentrate the greatest number of functions in the fewest user actions. In addition to the previous capabilities: - individual creation/renumbering of texts based on the cursor position - multiple renumbering of texts using a selection window, thanks to the momentary activation of the 'V' key... The following has been added: - readjustment of the renumbering criteria for multiple texts ('V' key option): from now on, renumbering will be done based on proximity to the first corner indicated on the screen of the selection window. That is, if the selection window is from Northwest to Southwest, the renumbering increment will be in order from least to greatest distance from the Northwest corner. - In addition, the definition of the real-time selection window is discontinuous to differentiate it from others. ;******* <<S o m e t h i n g d i f f e r e n t V.2.1>> ******* ;******************* p o r d e s í a r g o ******************** ;************************ G L A V C V S ************************* ;************************** F E C I T *************************** (defun c:txtIncrem (/ tam capa ind para a c cl txsel le l s dameTexto uconfig obtcad ent loc tipC nC ps add errores error0 v actTX ventanea pv n cj acdoc md listOrda pr lt f ) (defun errores (mens) (setq *error* error0) (while (>= (boole 1 (getvar "UNDOCTL") 8) 8) (vla-endundomark acdoc) ) (prin1) ) (defun dameTexto (cad / v r l daleVuelta) ;;; WRITE HERE THE CODE YOU NEED TO CUSTOMIZE THE TEXT YOU WANT TO ENTER OR CREATE (defun daleVuelta (a) (cond ((and (> a 64) (< a 91)) (if (> (setq a (+ a 1)) 90) (setq a -65) a)) ((and (> a 96) (< a 123)) (if (> (setq a (+ a 1)) 122) (setq a -97) a)) ((and (> a 47) (< a 58)) (if (> (setq a (+ a 1)) 57) (setq a -48) a)) ) ) (foreach v (reverse (vl-string->list cad)) (if (or (not r) (minusp r)) (setq l (cons (abs (setq r (daleVuelta v))) l)) (setq l (cons v l)) ) ) (vl-list->string (if (minusp r) (cons (if (= r -48) 49 (car l)) l) l)) ) (defun ventanea (/ p no se) (if (listp (setq p (cadr l))) (progn (redraw) (grvecs (list -7 pv (setq no (list (car pv) (cadr p))))) (grvecs (list -7 pv (setq se (list (car p) (cadr pv))))) (grvecs (list -7 no p)) (grvecs (list -7 se p)) ) ) ) (defun actTX (e / le) (entmod (subst (cons 1 tx) (assoc 1 (setq le (entget e))) le)) (setq tx (dameTexto tx)) nil ) (defun listOrda (cj pr / e n l) (vl-sort (while (setq e (ssname cj (setq n (if n (1+ n) 0)))) (setq l (cons (list (cdr (assoc 10 (entget e))) e) l)) ) '(lambda (a b) (< (distance pr (car a)) (distance pr (car b))) ) ) ) (setq error0 *error* *error* errores ) (setq acdoc (vla-get-activedocument (vlax-get-acad-object))) (while (>= (boole 1 (getvar "UNDOCTL") 8) 8) (vla-endundomark acdoc) ) (princ (setq s "Select PREVIOUS number text or type it... ")) (while (not para) (setq l (grread T 13 2)) (if (not (listp (cadr l))) (if (member (car l) '(2 3 11 25)) (cond ((or (= (cadr l) 13) (= (car l) 25) (= (car l) 11)) (if (and c (not (wcmatch c "*.*"))) (setq ind c para T) (if (not c) (setq para T)) ) ) ((> (cadr l) 31) (setq c (if c (strcat c (chr (cadr l))) (chr (cadr l)))) (prompt (strcat "\r" s c)) ) ((= (cadr l) 8) (if (setq c (if c (substr c 1 (- (strlen c) 1)))) (prompt (strcat "\r" s c)) ) ) (T (princ) ) ) ) (if (= (car l) 3) (if (and (setq e (nentselp (cadr l))) (= (cdr (assoc 0 (setq le (entget (setq e (car e)))))) "TEXT")) (if (not (wcmatch (setq ind (cdr (assoc 1 le))) "*.*")) (setq capa (cdr (assoc 8 le)) a (cdr (assoc 40 le)) cl (cdr (assoc 62 le)) para T) (princ "\n*** The selected object is not valid. Please, try again... ***") ) ) ) ) ) (setq para nil) (if (not capa) (while (not para) (if (and (setq e (car (entsel "\nLAYER/HEIGHT: Select a sample text object (ENTER or RIGHT CLICK to type it)... "))) (setq l (entget e)) ) (if (= (cdr (assoc 0 l)) "TEXT") (setq capa (cdr (assoc 8 l)) a (cdr (assoc 40 l)) para T) (princ "\n*** The selected object is not a TEXT. Please, try again... ***") ) (if (not capa) (if (setq capa (getstring "\nType Layer name: ")) (if (tblsearch "layer" capa) (if (not (setq a (getreal "\nType Height: "))) (setq capa (princ "\n*** A valid height has not been specified. Please, type it again... ***") capa nil) (setq para T) ) (setq capa (princ "\n*** Specified layer does not exist. Please, type it again... ***") capa nil) ) ) ) ) ) ) (setq tx (dameTexto ind) s nil) (while ;(and (setq l (grread T (if s 4 13) (if s 2 0))) (member (car l) '(5 3 2))) (and (setq l (grread T (cond (s 4) (v 4) (T 13)) (cond (s 2) ((and pv v) 1) (v 2) (T 0)))) (member (car l) '(5 3 2))) (prompt (strcat "\rSelect text to modify or insert new text \"" tx "\" (<V> for ON/OFF multiple selection or <RIGHT CLICK> for exit)")) (setq tam (* (getvar "pickbox") (/ (GETVAR "VIEWSIZE") (CADR (GETVAR "SCREENSIZE")))) para nil n nil) (if (= (car l) 2) (cond ((member (cadr l) '(86 118)) (setq v (not v)) ) ;;; HERE MORE CASES ?...(ascii "V") ) (if (or v (setq s (ssget "_C" (list (- (car (setq p (cadr l))) tam) (- (cadr p) tam)) (list (+ (car p) tam) (+ (cadr p) tam)) (list (cons 0 "TEXT")) ) ) ) (cond ((= (car l) 3) (if s (setq md (vla-startundomark acdoc) s (actTX (ssname s 0))) (if pv (if (setq cj (ssget "_C" pv (cadr l) (list (cons 0 "TEXT"))) lt (if cj (listOrda cj pv)) pv (if cj (vla-startundomark acdoc)) v (redraw) lt lt) ;;; (while (setq e (ssname cj (setq n (if n (1+ n) 0)))) (foreach f lt (actTX (cadr f)) ) ) (setq pv (cadr l)) ) ) ) ((and pv (= (car l) 5) (not s)) (ventanea) ) (T (princ) ) ;;; HERE MORE CASES ?... ) (cond ((= (car l) 3) (entmake (list '(0 . "TEXT") (cons 8 capa) (cons 62 (if cl cl 256)) (cons 40 a) (cons 1 tx) (cons 10 (list (car p) (cadr p) 0.0)) ) ) (setq tx (dameTexto tx)) ) (T (if (/= (car l) 5) (princ) ) ) ;;; HERE MORE CASES ?... ) ) ) ) (while (>= (boole 1 (getvar "UNDOCTL") 8) 8) (vla-endundomark acdoc) ) (princ) )

Here's my take on it: (defun c:foo (/ lm:unformat b el p r s sp tx) (cond ((setq s (ssget ":L" '((0 . "CIRCLE")))) (cond ((null (tblobjname "block" "Bubble")) (entmake '((0 . "BLOCK") (100 . "AcDbEntity") (67 . 0) (8 . "0") (100 . "AcDbBlockReference") (66 . 1) (2 . "Bubble") (10 0. 0. 0.) (70 . 2) ) ) (entmake '((0 . "CIRCLE") (100 . "AcDbEntity") (67 . 0) (8 . "0") (100 . "AcDbCircle") (10 0. 0. 0.) (40 . 1.) ) ) (entmake '((0 . "ATTDEF") (100 . "AcDbEntity") (67 . 0) (8 . "0") (100 . "AcDbText") (10 0. 0. 0.) (40 . 0.75) (1 . "") (50 . 0) (41 . 1) (51 . 0) (7 . "Standard") (71 . 0) (72 . 1) (11 0. 0. 0.) (100 . "AcDbAttributeDefinition") (280 . 0) (3 . "") (2 . "#") (70 . 8) (73 . 0) (74 . 2) (280 . 1) ) ) (entmake '((0 . "ENDBLK") (100 . "AcDbBlockEnd") (8 . "0"))) ) (command "_.ATTSYNC" "_NAME" "BUBBLE") ) ;;-------------------=={ UnFormat String }==------------------;; ;; ;; ;; Returns a string with all MText formatting codes removed. ;; ;;------------------------------------------------------------;; ;; Author: Lee Mac, Copyright © 2011 - www.lee-mac.com ;; ;;------------------------------------------------------------;; ;; Arguments: ;; ;; str - String to Process ;; ;; mtx - MText Flag (T if string is for use in MText) ;; ;;------------------------------------------------------------;; ;; Returns: String with formatting codes removed ;; ;;------------------------------------------------------------;; (defun lm:unformat (str mtx / _replace rx) (defun _replace (new old str) (vlax-put-property rx 'pattern old) (vlax-invoke rx 'replace str new) ) (if (setq rx (vlax-get-or-create-object "VBScript.RegExp")) (progn (setq str (vl-catch-all-apply (function (lambda () (vlax-put-property rx 'global actrue) (vlax-put-property rx 'multiline actrue) (vlax-put-property rx 'ignorecase acfalse) (foreach pair '(("\032" . "\\\\\\\\") (" " . "\\\\P|\\n|\\t") ("$1" . "\\\\(\\\\[ACcFfHLlOopQTW])|\\\\[ACcFfHLlOopQTW][^\\\\;]*;|\\\\[ACcFfHLlOopQTW]" ) ("$1$2/$3" . "([^\\\\])\\\\S([^;]*)[/#\\^]([^;]*);") ("$1$2" . "\\\\(\\\\S)|[\\\\](})|}") ("$1" . "[\\\\]({)|{") ) (setq str (_replace (car pair) (cdr pair) str)) ) (if mtx (_replace "\\\\" "\032" (_replace "\\$1$2$3" "(\\\\[ACcFfHLlOoPpQSTW])|({)|(})" str) ) (_replace "\\" "\032" str) ) ) ) ) ) (vlax-release-object rx) (if (null (vl-catch-all-error-p str)) str ) ) ) ) (setq sp (vlax-ename->vla-object (cdr (assoc 330 (entget (ssname s 0)))))) (foreach e (vl-remove-if 'listp (mapcar 'cadr (ssnamex s))) (setq r (/ (cdr (assoc 40 (setq el (entget e)))) 2.)) (setq p (cdr (assoc 10 el))) (cond ((setq tx (ssget "_C" (mapcar '- p (list r r r)) (mapcar '+ p (list r r r)) '((0 . "*TEXT"))) ) (setq r (* 2 r)) (setq b (vla-insertblock sp (vlax-3d-point p) "Bubble" r r r 0.)) (vla-put-textstring (car (vlax-invoke b 'getattributes)) (lm:unformat (cdr (assoc 1 (entget (ssname tx 0)))) nil) ) (entmod (append (entget (vlax-vla-object->ename b)) '((8 . "BUBBLE")))) (entdel e) (entdel (ssname tx 0)) ) ) ) ) ) (princ) )

Calculating an axis using angle bisectors a) Attempt number 1 (it was my first impulse, but I came up with a better one later) Advantages: - Pure LISP: doesn't depend on Express Tools, - It's faster Disadvantages: - The result isn't as good as @GP_'s "c:CPL" - It only accepts LWPOLYLINES and ignores arcs Basically, the approach is to obtain angle bisectors on each polyline, extend them to the other reference polyline, and use their midpoints. The result is acceptably good, but not as accurate as c:CPL. (defun c:creAxis (/ e e1 e2 l1 l2 lr p p0 p1 p2 px pm abis lii pmi pfi pi1 pi2 pf1 pf2 dameInters+Prox ordena) (defun dameInters+Prox (p0 a lp / p1 px pt1 pt2 dmin d pf) (setq pt1 (polar p0 a 1e8) pt2 (polar p0 (+ a PI) 1e8)) (foreach p lp (if p1 (if (setq px (inters pt1 pt2 p1 p)) (if dmin (if (< (setq d (distance px p0)) dmin) (setq dmin d pf px)) (setq dmin (distance px p0) pf px)) ) ) (setq p1 p) ) pf ) (defun ordena (pr lp / d dmin ps lr) (while lp (foreach p lp (if dmin (if (< (setq d (distance p pr)) dmin) (setq dmin d ps p) ) (setq dmin (distance p pr) ps p) ) ) (setq dmin nil pr ps lp (vl-remove ps lp) lr (append lr (list ps))) ) ) (if (and (setq e1 (car (entsel "\nSelect first LWPOLYLINE..."))) (= (cdr (assoc 0 (setq l1 (entget e1)))) "LWPOLYLINE") (not (redraw e1 3))) (if (and (setq e2 (car (entsel "\nSelect second LWPOLYLINE..."))) (= (cdr (assoc 0 (setq l2 (entget e2)))) "LWPOLYLINE") (not (redraw e2 3))) (progn (setq lp1 (reverse (foreach l l1 (if (= (car l) 10) (setq lr (cons (cdr l) lr)) lr))) lr nil; lp2 (reverse (foreach l l2 (if (= (car l) 10) (setq lr (cons (cdr l) lr)) lr))) lr nil; ) (if (< (distance (setq pi1 (cdr (assoc 10 l1))) (setq pi2 (cdr (assoc 10 l2)))) (distance pi1 (setq pf2 (cdr (assoc 10 (reverse l2)))))) (setq pmi (mapcar '(lambda (a b) (/ (+ a b) 2.0)) pi1 pi2) pfi (mapcar '(lambda (a b) (/ (+ a b) 2.0)) (setq pf1 (cdr (assoc 10 (reverse l1)))) pf2) ) (setq pmi (mapcar '(lambda (a b) (/ (+ a b) 2.0)) pi1 pf2) pfi (mapcar '(lambda (a b) (/ (+ a b) 2.0)) (cdr (assoc 10 (reverse l1))) pi2) ) ) (redraw e1 4) (redraw e2 4) (foreach l l1 (if (= (car l) 10) (if p1 (if p2 (setq abis (+ (/ (+ (angle p1 p2) (angle p2 (cdr l))) 2) (/ PI 2.)) x (princ) px (dameInters+Prox p2 abis lp2) lr nil pm (if px (mapcar '(lambda (a b) (/ (+ a b) 2.0)) p2 px)) lii (if px (append lii (list pm)) lii) p1 p2 p2 (cdr l) ) (setq p2 (cdr l)) ) (setq p1 (cdr l)) ) ) ) (setq p1 nil p2 nil lr nil) (foreach l l2 (if (= (car l) 10) (if p1 (if p2 (setq abis (+ (/ (+ (angle p1 p2) (angle p2 (cdr l))) 2.) (/ PI 2.)) px (dameInters+Prox p2 abis lp1); pm (if px (mapcar '(lambda (a b) (/ (+ a b) 2.0)) p2 px) (princ) ) lii (if px (append lii (list pm)) lii); p1 p2 p2 (cdr l) ) (setq p2 (cdr l)) ) (setq p1 (cdr l)) ) ) ) (setq lii (append (list pmi) (ordena pmi lii) (list pfi))) ) ) ) (entmake (append '((0 . "LWPOLYLINE") (100 . "AcDbEntity") (67 . 0) (8 . "0") (100 . "AcDbPolyline") (70 . 0) (60 . 0)) (list (cons 90 (length lii))) (mapcar '(lambda (a) (cons 10 a)) lii))) (princ) ) PS: It seems to work well, but I haven't tested it extensively. As I said at the beginning, there's a better approach, using angle bisectors, which I'll publish later.

Seneca said: “Homines dum docent discunt.” Which, roughly, means: Learn to explain and explain to learn

It will require more modification than just extending the bulge list - you also need to calculate the positions of the additional vertices. However, I really liked your suggestion (and it's also consistent with my existing Box Text program), and so I've updated the program to Version 1.3 to incorporate a new Filleted Rectangle textbox option (you may need to refresh the page to view the new version). Enjoy!

I guess you could do like (setq i (+ i 0.01)) 16 vertex poly would then create a 1600 vertex poly And then run overkill on the created polyline to remove all collinear vertexes.

Here's a proof-of-concept example for consideration - (defun update-attributes ( / bln idx ins map obj sel tag val ) (setq ;; List of ;; ((lower-left point) (upper-right point) "attribute value") map '( (( 0.0 0.0) (10.0 10.0) "abc") ((20.0 20.0) (30.0 30.0) "def") ) ;; Block name bln "YourBlock" tag "YourTag" ) (setq bln (strcase bln) tag (strcase tag) ) (if (setq sel (ssget "_X" (list '(0 . "INSERT") '(66 . 1) (cons 2 (strcat "`*U*," bln))))) (repeat (setq idx (sslength sel)) (setq idx (1- idx) obj (vlax-ename->vla-object (ssname sel idx)) ) (cond ( (/= bln (strcase (vlax-get-property obj (if (vlax-property-available-p obj 'effectivename) 'effectivename 'name))))) ( (setq ins (vlax-get obj 'insertionpoint) val (vl-some '(lambda ( itm ) (if (vl-every '<= (car itm) ins (cadr itm)) (caddr itm))) map) ) (vl-some '(lambda ( att ) (if (= tag (strcase (vla-get-tagstring att))) (progn (if (vlax-write-enabled-p att) (vla-put-textstring att val) ) t ) ) ) (vlax-invoke obj 'getattributes) ) ) ) ) ) ) (defun block-position-callback ( rtr arg ) (if (and arg (wcmatch (strcase (car arg) t) "qsave,save,saveas,plot,publish")) (update-attributes) ) (princ) ) ( (lambda ( key ) (vl-load-com) (foreach rtr (cdar (vlr-reactors :vlr-command-reactor)) (if (= key (vlr-data rtr)) (vlr-remove rtr) ) ) (vlr-set-notification (vlr-command-reactor key '( (:vlr-commandwillstart . block-position-callback) ) ) 'active-document-only ) (update-attributes) (princ) ) "block-position-reactor" ) There is no command to run the program: simply amend the block name, tag name, and map at the top of the code to suit your setup, and then load the program - the attributes will be automatically updated when the drawing is saved or plotted.

I did write something once to find and launch documents but its a little over the top probably. But Bigal also had a good suggestion , a program called everything.

@Steven P See what this does. again will use default browser. (startapp "explorer.exe" "https://www.youtube.com/watch?v=dQw4w9WgXcQ") So above can be (defun c:GetGoogle ( / Search Page) (setq Search (getstring "Enter Serch Term: [use '+' between terms] ")) ;; get search term, '+' between words (setq Page (strcat "https://www.google.com/search?q=" Search)) ;; google + search term address (startapp "explorer.exe" page) ) -edit didn't have the exe

actually quite nice Steven , think I'm gonna add this to one of my toolbars (if there's still room that is...) for opening things I also like : https://lee-mac.com/open.html

also shell commands - I've only used that once though: (defun c:GetGoogle ( / SearchTerm PageBase) (setq SearchTerm (getstring "Enter Serch Term: [use '+' between terms] ")) ;; get search term, '+' between words (setq PageBase "(command \"shell\" \"start microsoft-edge:http://google.com/search?q=") ;; google address (setq Page (strcat PageBase SearchTerm "\")" )) ;; google + search term address (eval (read Page)) ;; open 'Page' ) Guess what this does....

Even more reason to give weight to the opinions of those who have more experience in this area To the man with a hammer, everything looks like a nail.

I think it's time you started to learn AutoLISP @Nikon

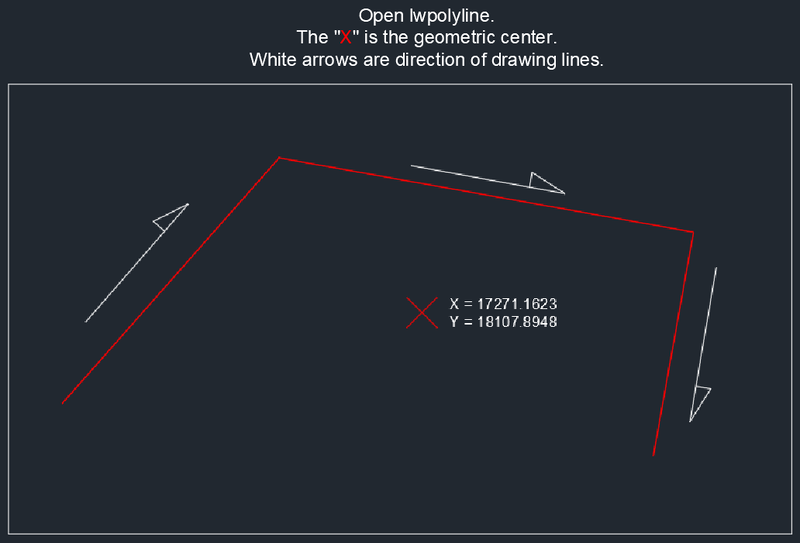

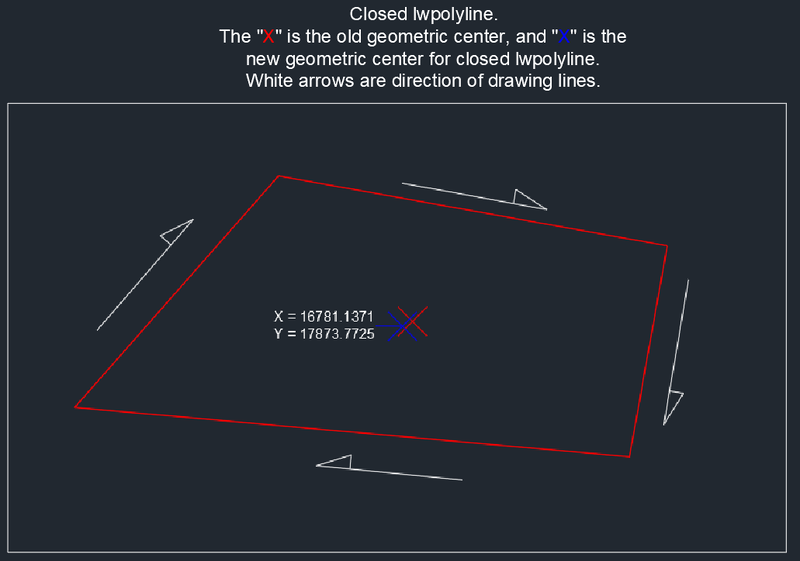

Okay, this is the sub-function for calculating geometric center for open or closed polygon made from polyline. ; ******************************************************************************************* ; Sub-Function : SX:geomCenter ; Description : Geometric center for open or closed lwpolyline for 2D polygons ; Arguments: : ent - Selected entity into the drawing ; Calling function : (SX:geomCenter ent) ; Author : Saxlle ; Date : August 11, 2025 ; ******************************************************************************************* (defun SX:geomCenter ( ent / ptlist sum_x sum_y sum_area temp_area i len temp_x temp_y j cen_x cen_y cen_pt) (setq ptlist (mapcar 'cdr (vl-remove-if-not (function (lambda (x) (= (car x) 10))) (entget ent)))) ;; point list (if (and (equal (cdr (assoc 0 (entget ent))) "LWPOLYLINE") (>= (length ptlist) 3)) (progn (setq sum_x 0.0 sum_y 0.0 sum_area 0.0 temp_area 0.00 i 0 ) (repeat (setq len (length ptlist)) (if (< (1+ i) len) (progn (setq temp_area (- (* (car (nth i ptlist)) (cadr (nth (1+ i) ptlist))) (* (car (nth (1+ i) ptlist)) (cadr (nth i ptlist)))) sum_area (+ sum_area temp_area) temp_x (+ (car (nth i ptlist)) (car (nth (1+ i) ptlist))) temp_y (+ (cadr (nth i ptlist)) (cadr (nth (1+ i) ptlist))) sum_x (+ sum_x (* temp_x temp_area)) sum_y (+ sum_y (* temp_y temp_area)) i (1+ i) ) ) (progn (setq j 0 temp_area (- (* (car (nth i ptlist)) (cadr (nth j ptlist))) (* (car (nth j ptlist)) (cadr (nth i ptlist)))) sum_area (+ sum_area temp_area) temp_x (+ (car (nth i ptlist)) (car (nth j ptlist))) temp_y (+ (cadr (nth i ptlist)) (cadr (nth j ptlist))) sum_x (+ sum_x (* temp_x temp_area)) sum_y (+ sum_y (* temp_y temp_area)) ) ) ) ) (setq sum_area (/ sum_area 2)) (if (not (equal sum_area 0.0)) (setq cen_x (/ sum_x (* sum_area 6)) cen_y (/ sum_y (* sum_area 6)) cen_pt (list cen_x cen_y) ) ) (prompt (strcat "\nThe geometric center is: " (rtos cen_x 2 2) "," (rtos cen_y 2 2))) (princ) ) (progn (cond ((equal (cdr (assoc 0 (entget ent))) "LWPOLYLINE") (prompt "\nSelected entity is POLYLINE and the number of vertices are lower than 3! Need at least 3 or more vertices!") (princ) ) ((equal (cdr (assoc 0 (entget ent))) "LINE") (prompt "\nSelected entity is LINE and the center is the midpoint!") (princ) ) ) ) ) ) An example video of how it works. geomCenter.mp4 Best regards.

You can actually calculate it, here is the code (you can change it for your purposes): (setq ptlist (mapcar 'cdr (vl-remove-if-not (function (lambda (x) (= (car x) 10))) (setq ent (entget (car (entsel "\nSelect the line:")))))) ;; point list sum_x 0 sum_y 0 vertices (cdr (assoc 90 ent)) ;; number of vertices for LWPOLYLINE ) (foreach pt ptlist (setq sum_x (+ sum_x (car pt))) ;; sum only the X vertices values ) (foreach pt ptlist (setq sum_y (+ sum_y (cadr pt))) ;; sum only the Y vertices values ) (setq sum_x (/ sum_x vertices) ;; dividing the total sum X by the number of vertices sum_y (/ sum_y vertices) ;; dividing the total sum Y by the number of vertices pt (list sum_x sum_y) ;; geometric center ) Below are the pictures with geometric center for open and closed polyline (picture 1 open, picture 2 closed). Picture 1. Picture 2. This is true. Best regards.

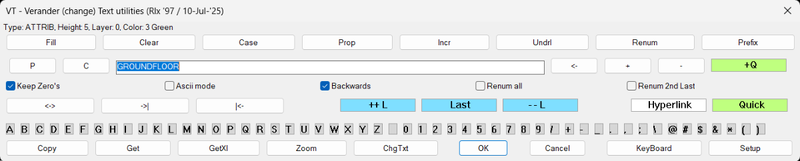

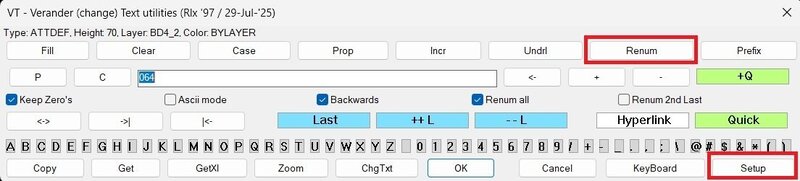

Load VT , start with VT (or C:VT) Click on one of the attdef's , you get the main dialog Click on setup (bottom right) and change difference to 5 , click on ok to return to main dialog Finaly click on Renum and select all attdefs , enter, done... VT uses grread in a constant loop so exit with escape, cancel or spacebar that will get you in quick menu and you can escape / Quit / cancel from there. Not all buttons will work because some are company specific like revision but for now it should get you what you need. VT.LSP

@Steven P did trusted paths above including check if running Bricscad which does not have trusted paths. Another way to push lisps to a pc is you can via lisp unzip a ZIP file to a location, advantage is only one file rather than copying a whole directory. I use this as part of install lisps. Its super fast. Just need a "Filename" (startapp (strcat "powershell -command Expand-Archive -Path '" filename "' -DestinationPath 'C:/xxx-CAD-TOOLS' -FORCE")) (alert "programs unzipped to C:/xxx-CAD-TOOLS")

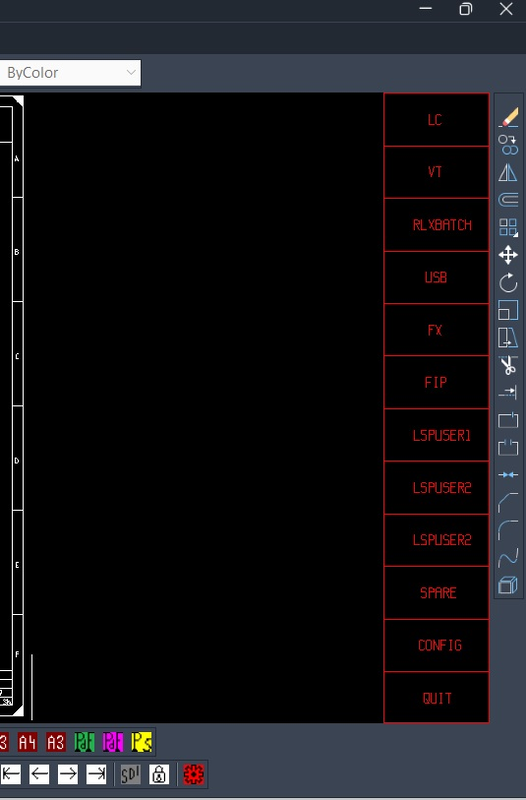

This reminds me on SCREENMENU (picture 1), but you're solution are better . One old programmer with a lot experience in programming, in AutoCAD, told me about SCREENMENU when I tried to do something. And I forget to mention, I have never done anything with SCREENMENU .

That looks good. Years ago I had FastCAD which had a menu very similar for inserting blocks. My current LISP to try to do similar used DCL and buttons, however a couple of tweaks this could (pretty much) copy what was in FastCAD (it was about the best bit of FastCAD). Example call say 'Doors', your pop-up menu appears and instead of text an image of the block to insert (can make a simplified block using vector graphics, same way as your text). I'll add another line to my to-do list. EDIT. A comment I was going to make last night. You reminded me. The vector letters are handy to keep somewhere - in a DCL for example you can create an image (or image button), using vector letters but add colours to highlight text:

Here is a version that only uses lisp. You will have to download grsnap: https://www.lee-mac.com/grsnap.html It does flicker when I am preventing it from snapping to itself, rest seems to work fine. Keyboard input works a s well. Give it a try: offset.lsp

have done a sort of messenger in the past with (m)text so just wanted to try something else. With vectors a simple redraw and your plate is clean again. I was / am considering adding background but for now wanted to keep it fast & furious due to workload (turning my boss's promises into reality)

Hi I’m attaching the code. But first, a brief explanation of how it works. The function is implemented by calling MiGRTexto with one parameter: the desired height for the real-time texts (this should be a value between 0.5 and 1) Therefore, it can be placed inside a main function that can be called from the command line (e.g., (defun c:myCommand)). As for the code that provides functionality, it's actually very simple: it consists of a text next to the right CROSSHAIR and an MTEXT below it. These must be properly managed so that they dynamically update their size, location and content—it's that straightforward. From there, it’s just a matter of adding code to achieve whatever final functionality the user needs. In the attached code, a small emulator for the "pline" command is implemented, triggered by a LEFT CLICK event. This event calls funcionPrincipal, which is provided with two arguments: the screen point indicated and the entity name (or nil) of the object under the PICKBOX at that location. These two arguments should be enough to enable any subsequent operation. It’s important to note that the entire behavior relies on GRREAD, and therefore on mouse and keyboard events. These events are handled using several clauses within a cond expression, which can be extended or modified by the user. I haven’t implemented any code to add object snap functionality. Doing so would considerably complicate the code, and for some users, it may not be necessary. In any case, suggestions and improvements (regarding snapping or any other proposals) are welcome in this thread—for those (myself included) who may want to improve or add new features. I won’t go on any further. Now, the code... ;******************* p o r d e s í a r g o ******************** ;************************ G L A V C V S ************************* ;************************** F E C I T *************************** (defun MiGRTexto (factor / l se e le txTmp txTmp1 txOk tam p pa pt pt1 i? v1 polil alt tx para erroria errores error0 textoGR1 textoGR2 funcionPrincipal) (defun erroria () (defun errores (mens) (setq *error* error0) (vla-delete txTmp) (vla-delete txTmp1) (redraw) (if e (redraw e 4)) (prin1) ) (setq error0 *error* *error* errores ) ) (defun funcionPrincipal (pt e) (setvar 'LASTPOINT pt) ;;;INICIO(START) EMULAD(T)OR "pline" (if polil (entmod (append (entget polil) (list (cons 10 pt)))) (if (entmake (list '(0 . "LWPOLYLINE") '(100 . "AcDbEntity") '(100 . "AcDbPolyline") (cons 8 "0") (cons 90 2) '(70 . 128) '(62 . 256) (cons 10 pa) (cons 10 pt) ) ) (setq polil (entlast)) ) ) (setq pa pt) ;;;FIN(END) EMULAD(T)OR "pline" ) (defun textoGR1 () ;THIS FUNCTION RETURN TEXT STRING TO DISPLAY ABOVE CURSOR. ADJUST IT TO SUIT YOUR NEEDS ;ESTA FUNCIÓN DEVUELVE EL TEXTO A MOSTRAR SOBRE EL CURSOR. MIDIFÍCALA SEGÚN LO NECESITES (rtos (distance (getvar 'LASTPOINT) p) 2 3) ) (defun textoGR2 (lp / lp MT) ;ESTA FUNCIÓN DA EL FORMATO NECESARIO AL MTEXT QUE SE MOSTRARÁ BAJO EL CURSOR (foreach l lp (if MT (setq MT (strcat MT (car l) " {\\fLucida Sans Unicode|b0|i0|c0|p34;\\C4;" (cadr l) "}")) (setq MT (strcat (car l) " {\\fLucida Sans Unicode|b0|i0|c0|p34;\\C4;" (cadr l) "}")) ) (setq MT (if (equal l (last lp)) MT (strcat MT "\\P"))) ) ) (defun dameGRT2 (le / cl to) ;THIS FUNCTION RETURN THE LIST OF PAIRS THAT textoGR2 NEEDS TO FORMAT CONTENTS OF MTEXT. ADJUST IT TO SUIT YOUR NEEDS ;ESTA FUNCIÓN DEVUELVE LA LISTA DE PARES QUE NECESITA textoGR2 PARA GENERAR LA CADENA DE TEXTO QUE NECESITA EL MTEXT (list (list "Object" (setq to (cdr (assoc 0 le)))) (list "Layer" (cdr (assoc 8 le))) (list "Color" (if (setq cl (cdr (assoc 62 le))) (itoa cl) "BYLAYER")) (list "XData?" (if (assoc -3 le) "YES" "NO")) ) ) (erroria) (setq txTmp (vla-AddText (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))) "0" (VLAX-3D-POINT '(0 0)) 0.1) txTmp1 (vla-AddMText (vla-get-modelspace (vla-get-activedocument (vlax-get-acad-object))) (vlax-3d-point '(0 0)) 5000 "0") i? T ) (vla-put-color txTmp 1) (vla-put-visible txTmp 0) (vla-put-color txTmp1 2) (vla-put-visible txTmp1 0) (while (and (not para) (setq l (grread nil 13 0))) (setq tam (* (getvar "PICKBOX") (/ (getvar "VIEWSIZE") (cadr (getvar "SCREENSIZE"))) 2 factor ) ) (if e (redraw e 4)) (setq e (if (setq se (if (listp (setq p (cadr l))) (nentselp p))) (if (and (not (member (vlax-ename->vla-object (car se)) (list txTmp txTmp1))) (member (cdr (assoc 0 (setq le (entget (car se) '("*"))))) '("LWPOLYLINE" "POLYLINE" "LINE" "SHAPE" "3DFACE" "INSERT" "TEXT" "MTEXT" "ATTRIB") ) ) (car se) ) ) ) (if (and i? e) (vla-put-visible txTmp1 1) (vla-put-visible txTmp1 0)) (prompt (strcat "\rLWPOLYLINE mode: " (if pa "next" "first") " point... (Press \'F10\' for " (if i? "DEACTIVATE" "ACTIVATE") " real-time reporting)")) (cond ((= (car l) 5) (if (not v1) (setq v1 (vla-put-visible txTmp 1) v1 T)) (setq pt (list (+ (car p) (* tam 0.8)) (+ (cadr p) (/ tam 2.2)))) (redraw) (if pa (grvecs (list 7 pa p))); THIS LINE IS PART OF THE "pline" EMULATOR CODE. DISABLE IT IF YOU DONT WANT TO USE THE EMULATOR IMPLEMENTED IN funcionPrincipal ; ESTA LINEA FORMA PARTE DEL EMULADOR "pline". DESACTIVALO SI ELIMINAS EL CÓDIGO EMULADOR IMPLEMENTADO EN funcionPrincipal (vlax-put-property txTmp 'InsertionPoint (vlax-make-variant (vlax-3d-point pt))) (vlax-put txTmp 'Height tam) (vlax-put txTmp 'TextString (textoGR1));<<<-- MODIFICAR ESTA LINEA DE CÓDIGO PARA QUE 'TextString MUESTRE EL TEXTO DESEADO (if (and i? e) (progn (redraw e 3) (setq pt1 (list (car pt) (- (cadr p) (/ tam 2.)))) (vlax-put-property txTmp1 'InsertionPoint (vlax-make-variant (vlax-3d-point pt1))) (vlax-put txTmp1 'Height tam) (vlax-put txTmp1 'TextString (textoGR2 (dameGRT2 le))) ) ) ) ((= (car l) 3) (if pa (funcionPrincipal p (car se)) (setq pa p))); ((= (car l) 25) (setq para T)); BOTON DERECHO = SALIR ((member (cadr l) '(67 99)) (if polil (setq para (entmod (subst (cons 70 1) (assoc 70 (entget polil)) (entget polil)))))); ((= (cadr l) 21) (setq i? (not i?))) ;;; AQUI DEBAJO EL CODIGO PARA GESTIONAR EL RESTO DE OPCIONES ;;; BELOW YOU CAN ADD MORE CLAUSES TO 'cond' TO EXTEND THE CODE FUNCTIONALITY (T ;REST OF CASES: WE DO NOTHING ) ;| .... .... |; ) ) (vla-delete txTmp) (vla-delete txTmp1) (redraw) (if e (redraw e 4)) (princ) )

This returns the serial number of the motherboard. It is more unique than the hard drive's serial number and also more unique than the variant of this same function that uses "Select * from Win32_BaseBoard". (defun obt_UUID (/ LObj SObj OSObj UUID) (setq LObj (vlax-create-object "WbemScripting.SWbemLocator") SObj (vlax-invoke LObj 'ConnectServer nil nil nil nil nil nil nil nil) OSObj (vlax-invoke SObj 'ExecQuery "SELECT UUID FROM Win32_ComputerSystemProduct") ) (vlax-for Obj OSObj (setq UUID (vlax-get Obj 'UUID)) ) (foreach Obj (list LObj SObj OSObj) (and Obj (vlax-release-object Obj)) ) UUID ) This might be a good option if you want your program to continue working when the user changes their hard drive but not their motherboard.

I guess using GRREAD to pick a point in real time and behind the scenes do a search box looking for text and in particular a match say "ABC" in "ABCDEFGH" if yes then zoom in on that text. I am not good at GRREAD code so some one else may be able to help. Search box.part based on a pick point. (setq off 18) ; needs to be changed to suit a dwg. (while (setq pt (getpoint "\nPick point ")) (setq pt1 (polar pt (* 0.25 pi) off)) (setq pt2 (polar pt (* 0.75 pi) off)) (setq pt3(polar pt (* 1.25 pi) off)) (setq pt4 (polar pt (* 1.75 pi) off)) (setq pts (list pt1 pt2 pt3 pt4 pt1)) (setq ss (ssget "CP" pts '((0 . "TEXT")))) (if (= ss nil) (princ "\n nothing found ") (princ (strcat "\n" (cdr (assoc 1 (entget (ssname ss 0)))) " found")) ) )

;| Adapted from an original idea by ElpanovEvgeniy 26.02.2010 https://www.theswamp.org/index.php?topic=30650.msg378483#msg378483 ******************* p o r d e s í a r g o ******************** ************************ G L A V C V S ************************* ************************** F E C I T *************************** |; (defun c:offSetea (/ se e pS c? c?c d dk r r1 pu p0 p1 p2 p3 o pt1 pt2 pt3 px1 px2 pa pb ct-r a42 op lgr bd fe *s* para asr dameCentroRadio erroria errores error0) (defun erroria () (defun errores (mens) (setq *error* error0) (entmod fe) (prin1) ) (setq error0 *error* *error* errores ) ) (defun asr (p1 p2 p3 / a b) (if (> (abs (- (setq a (angle p1 p2)) (setq b (angle p2 p3)))) PI) (if (< a b) (if (> (+ a PI PI) b) - +) (if (> (- a PI PI) b) - +) ) (if (> a b) - +) ) ) (defun dameCentroRadio (pt1 pt2 a42 / d radio h aP th centro) (setq radio (/ (setq d (distance pt1 pt2)) (* 2 (sin (/ (setq th (* 4 (atan a42))) 2)))) ; Radio del arco h ((if (> (abs th) PI) - +) (sqrt (- (* radio radio) (* (/ d 2) (/ d 2))))); Distancia del centro al punto medio aP (+ (angle pt1 pt2) (* (/ pi 2) (if (> a42 0) 1 -1))) ; Ángulo perpendicular centro (list (+ (/ (+ (car pt1) (car pt2)) 2) (* h (cos aP))) (+ (/ (+ (cadr pt1) (cadr pt2)) 2) (* h (sin aP)))) ) (list centro radio) ; Devuelve centro y radio ) (erroria) (if (setq se (entsel "\nSelect LWPOLYLINE...")) (if (= (cdr (assoc 0 (entget (setq e (car se))))) "LWPOLYLINE") (progn (setq c? (= (vla-get-closed (setq o (vlax-ename->vla-object (setq e (car se))))) :vlax-true) c?c (equal (vlax-curve-getPointAtParam o (vlax-curve-getStartParam o)) (vlax-curve-getPointAtParam o (setq pu (vlax-curve-getEndParam o))) 1e-6) p1 (fix (vlax-curve-getParamAtPoint o (vlax-curve-getClosestPointTo o (setq pS (cadr se))))) p2 (if (= p1 (1- pu)) (if c? 0 (1+ p1)) (1+ p1)) p0 (if (zerop p1) (if c? (1- pu)) (1- p1)) p3 (if (= p2 pu) (if (or c? c?c) 1) (1+ p2)) pt1 (vlax-curve-getPointAtParam o p1) pt2 (vlax-curve-getPointAtParam o p2) r (vlax-curve-getPointAtParam e (vlax-curve-getParamAtPoint o (vlax-curve-getClosestPointTo o pS))) pt0 (if p0 (vlax-curve-getPointAtParam o p0) (polar pt1 (+ (angle pt1 pt2) (/ PI 2.)) 100)) pt3 (if p3 (vlax-curve-getPointAtParam o p3) (polar pt2 (+ (angle pt1 pt2) (/ PI 2.)) 100)) a42 (cdr (assoc 42 (member (list 10 (car pt1) (cadr pt1)) (setq fe (entget e))))) ) (while (and (not para) (setq lgr (grread nil 13 0))) (if (or (member (cadr lgr) '(107 75)) (= (car lgr) 25) (not (listp (cadr lgr)))) (if (= (car lgr) 25) (setq para (entmod fe) bd T) (if (member (cadr lgr) '(107 75)) (setq *s* (not *s*)) ) ) (if (zerop a42) (setq d (distance (setq r1 (if *s* (progn (entmod fe) (setq para T dk (getreal "\nType the OFFSET distance (ENTER or RIGHT CLICK to indicate point on screen): ")) (getpoint r (if dk "\nSide to act on... " "\nPick a point on the screen... ")) ) (progn (prompt (strcat "\r " (if d (rtos d 2 3) "0.0") "...Press \'k\' to activate keyboard input...")) (cond ((= (car lgr) 5) (cadr lgr)) ((= (car lgr) 3) (setq para T) (cadr lgr)) ) ) ) ) (setq r (inters pt1 pt2 (polar r1 (setq a (+ (angle pt1 pt2) (/ PI 2.))) 3) (polar r1 (+ a PI) 3) nil)) ) px1 (inters pt0 pt1 (setq pa (polar pt1 (setq a ((asr pt1 r r1) (angle pt1 pt2) (/ pi 2.0))) (if dk dk d))) (setq pb (polar pt2 a (if dk dk d))) nil) px2 (inters pt2 pt3 pa pb nil) ) (setq ct-r (dameCentroRadio pt1 pt2 a42) d (- (distance (if *s* (progn (entmod fe) (setq para T dk (getreal "\nType the OFFSET distance (ENTER or RIGHT CLICK to indicate point on screen): ")) (getpoint r (if dk "\nSide to act on... " "\nPick a point on the screen... ")) ) (progn (prompt (strcat "\r " (if d (rtos (abs d) 2 3) "0.0") "...Press \'k\' to activate keyboard input...")) (cond ((= (car lgr) 5) (cadr lgr)) ((= (car lgr) 3) (setq para T) (cadr lgr)) ) ) ) (setq c (car ct-r)) ) (abs (cadr ct-r)) ) px1 (polar pt1 (angle (if (minusp d) pt1 c) (if (minusp d) c pt1)) (abs (if dk dk d))) px2 (polar pt2 (angle (if (minusp d) pt2 c) (if (minusp d) c pt2)) (abs (if dk dk d))) ) ) ) (if (not bd) (foreach l (list (list p1 (list (car px1) (cadr px1))) (list p2 (list (car px2) (cadr px2)))) (vla-put-coordinate o (car l) (vlax-make-variant (vlax-safearray-fill (vlax-make-safearray 5 '(0 . 1)) (cadr l)))) ) ) ) ) (alert "No LWPOLYLINE selected") ) (alert "NOTHING selected") ) (princ) ) One last small improvement that displays the cursor offset in real time (command line) during the first phase of the command. A very useful little feature, I think.

Never stop thinking about problems, even when you are doing something outside.... Nice @GLAVCVS!

My effort... Just Text... ;;; Combine different overlapping text alphabetically. ;;; ;;; https://www.cadtutor.net/forum/topic/98013-is-it-possible-for-combining-different-texts-that-overlapping/#findComment-671805 ;;; ;;; By SLW210 (a.k.a. Steve Wilson) ;;; (defun c:CombTxtABC ( / ss i ent txts sorted-text result-text base-point) ;; Get string value (defun get-text-entity (ent) (cdr (assoc 1 (entget ent))) ) ;; Get insertion point (defun get-ins-point (ent) (cdr (assoc 10 (entget ent))) ) ;; Sort alphabetically (defun sort-by-text (a b) (if (equal (cadr a) (cadr b)) nil (if (or (null (cadr a)) (null (cadr b))) (null (cadr a)) (< (cadr a) (cadr b)) ) ) ) ;; Prompt user (setq ss (ssget '((0 . "TEXT")))) ; Only allow TEXT (not MTEXT) (if ss (progn (setq txts '()) ;; Loop through (setq i 0) (while (< i (sslength ss)) (setq ent (ssname ss i)) (if (and ent (eq (cdr (assoc 0 (entget ent))) "TEXT")) (setq txts (cons (list (get-ins-point ent) (get-text-entity ent) ent) txts)) ) (setq i (1+ i)) ) ;; Sort by content (setq sorted-text (vl-sort txts 'sort-by-text)) ;; Combine all (setq result-text "") (foreach text-item sorted-text (setq result-text (strcat result-text (cadr text-item))) ) ;; Insertion point from first text (setq base-point (car (car sorted-text))) ;; Create new TEXT with combined string (entmake (list (cons 0 "TEXT") (cons 8 "0") ; Layer (cons 10 base-point) (cons 40 1.0) ; Height (cons 1 result-text) (cons 7 "Standard") ; Text style (cons 72 1) ; Center justified (cons 11 base-point) ) ) ;; Delete original text (foreach text-item sorted-text (if (and (listp text-item) (cdr (assoc 0 (entget (caddr text-item))))) (entdel (caddr text-item)) ) ) (princ (strcat "\nCombined text: " result-text)) ) (princ "\nNo valid TEXT selected.") ) (princ) ) Text/MText... ;;; Combine different overlapping text/Mtext alphabetically. ;;; ;;; https://www.cadtutor.net/forum/topic/98013-is-it-possible-for-combining-different-texts-that-overlapping/#findComment-671805 ;;; ;;; By SLW210 (a.k.a. Steve Wilson) ;;; (defun c:CombTxt_MTxtABC ( / ss i ent txts sorted-text result-text base-point) ;; Get string value (defun get-text-entity (ent) (if (eq (cdr (assoc 0 (entget ent))) "MTEXT") (cdr (assoc 1 (entget ent))) ; For MTEXT (cdr (assoc 1 (entget ent))) ; For TEXT ) ) ;; Get insertion point (defun get-ins-point (ent) (cdr (assoc 10 (entget ent))) ) ;; Sort alphabetically (defun sort-by-text (a b) (if (equal (cadr a) (cadr b)) nil (if (or (null (cadr a)) (null (cadr b))) (null (cadr a)) (< (cadr a) (cadr b)) ) ) ) ;; Prompt user (setq ss (ssget '((0 . "TEXT,MTEXT")))) ; Allow both TEXT and MTEXT (if ss (progn (setq txts '()) ;; Loop through (setq i 0) (while (< i (sslength ss)) (setq ent (ssname ss i)) (if (and ent (or (eq (cdr (assoc 0 (entget ent))) "TEXT") (eq (cdr (assoc 0 (entget ent))) "MTEXT"))) (setq txts (cons (list (get-ins-point ent) (get-text-entity ent) ent) txts)) ) (setq i (1+ i)) ) ;; Sort by content (setq sorted-text (vl-sort txts 'sort-by-text)) ;; Combine all (setq result-text "") (foreach text-item sorted-text (setq result-text (strcat result-text (cadr text-item))) ) ;; Insertion point from first text (setq base-point (car (car sorted-text))) ;; Create new text with combined string (entmake (list (cons 0 "TEXT") (cons 8 "0") ; Layer (cons 10 base-point) (cons 40 1.0) ; Height (cons 1 result-text) (cons 7 "Standard") ; Text style (cons 72 1) ; Center justified (cons 11 base-point) ) ) ;; Delete original (foreach text-item sorted-text (if (and (listp text-item) (cdr (assoc 0 (entget (caddr text-item))))) (entdel (caddr text-item)) ) ) (princ (strcat "\nCombined (M)Text: " result-text)) ) (princ "\nNo valid Text or MText entities selected.") ) (princ) )

Another option, more respectful of the original format, could be to replace your Entmakex with this one. (entmakex (foreach as el (setq l (if (setq v (cond ((= (setq c (car as)) 0) '(0 . "TEXT")) ((member c '(8 1 40 50 7 72)) as) ((= c 71) (cons c (cadr (assoc (cdr as) '((1 2) (2 1) (3 0) (4 0) (5 0)))))) ((= c 73) '(73 . 2)) ((member c '(10 11)) (cons c p2)) ) ) (append l (list v)) l ) ) ) )

Hi The easiest way is to explode up the text. You can add at the end (vla-explode (vlax-ename->vla-object (setq eu (entlast)))) (entdel eu)

@leonucadomi @PGia I'm attaching a new version V.3 that can also renumber block attributes. It also includes some other new features. However, I'm letting you know that <Something different> is going on 'holidays' and won't be serving any more requests for a while I'm attaching the description and new features of V.3: - Individual creation/renumbering of TEXTs and MTEXTs based on the cursor position - Multiple renumbering of TEXTs/MTEXTs via selection window (option key 'V') based on proximity to the first corner indicated on the screen of the selection window. That is: if the selection window is from Northwest to Southeast, the renumbering increment will be in order from least to greatest distance from the Northwest corner Added in this version: - Ability to detect and renumber block attributes using the same criteria as 'TEXT' and 'MTEXT' attributes. (Note: This may not work for block attributes with multiple levels of nesting.) - New functionality (by pressing the 'A' key) to change text alignment on the fly. A preview of how it works: SDifferent_V3.mp4 SDifferent_V3.lsp

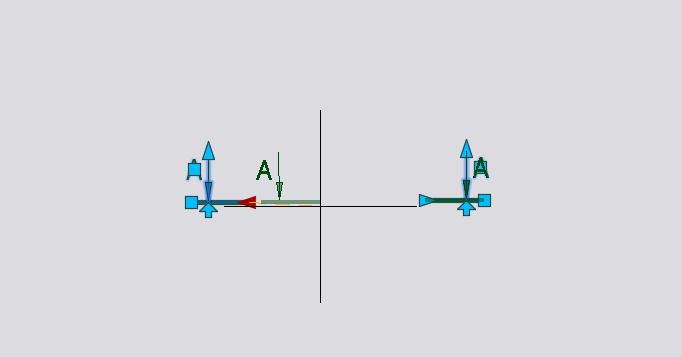

@EIA You can use a dynamic block. А-А.dwg

Why not something different...? ;************************ G L A V C V S ************************* ;************************** F E C I T *************************** (defun c:txtIncrem (/ tam capa ind para a txsel lstent le l s dameTexto errores error0) (defun errores (mens) (setq *error* error0) (prin1) ) (defun dameTexto (/ tx) ;;; WRITE HERE THE CODE YOU NEED TO CUSTOMIZE THE TEXT YOU WANT TO ENTER OR CREATE (cond ((= (strlen (setq tx (itoa (setq ind (+ ind 1))))) 1) (strcat "00" tx) ) ((= (strlen tx) 2) (strcat "0" tx) ) (T tx) ) ) (while (not para) (if (setq ent (car (entsel "\nSelect index text..."))) (if (= (cdr (assoc 0 (setq lstent (entget ent)))) "TEXT") (if (wcmatch (setq ind (cdr (assoc 1 lstent))) "#,##,###,####") (setq ind (atoi ind) capa (cdr (assoc 8 lstent)) a (cdr (assoc 40 lstent)) para T) (princ "\n*** The selected object is not valid. Please, try again... ***") ) ) (setq para T) ) ) (setq error0 *error* *error* errores ) (setq tam (* (getvar "pickbox") (/ (GETVAR "VIEWSIZE") (CADR (GETVAR "SCREENSIZE")))) para nil) (princ "\nSelect text to modify or insert new text (RIGHT CLICK for exit)...") (while (and (setq l (grread T (if s 4 13) (if s 2 0))) (member (car l) '(5 3))) (if (setq s (ssget "_C" (list (- (car (setq p (cadr l))) tam) (- (cadr p) tam)) (list (+ (car p) tam) (+ (cadr p) tam)) (list (cons 0 "TEXT")) ) ) (cond ((= (car l) 3) (entmod (subst (cons 1 (dameTexto)) (assoc 1 (setq le (entget (ssname s 0)))) le)) ) ;Here are other possible cases ) (cond ((= (car l) 3) (entmake (list '(0 . "TEXT") (cons 8 capa) (cons 40 a) (cons 1 (dameTexto)) (cons 10 (list (car p) (cadr p) 0.0)) ) ) ) ;Here are other possible cases ) ) ) (princ) )

https://www.lee-mac.com/unformatstring.html

Only one DIMALIGNED call is required, e.g.: (defun c:mydimalign ( / e p x ) (if (and (setq e (car (entsel))) (= "LWPOLYLINE" (cdr (assoc 0 (setq x (entget e))))) ) (foreach g x (cond ( (/= 10 (car g))) ( p (command "_.dimaligned" p (setq p (cdr g)) "@5<180")) ( (setq p (cdr g))) ) ) ) (princ) )

@pondpepo9 I can't tell you if what you are looking for exists unless you can be more specific on what you want. Ideally, post a DWG with the Before and After and explain in more detail what the workflow should be. Then if someone has something they are willing to share, write, or alter - we can let you know. PLEASE NOTE: This is not a forum just to order up free programs. We prefer helping those who wish to learn programming and need a place to start, which is the purpose of this forum.
