Indeed, if the block has attributes, (entmod) becomes more complicated: it requires going through transformation matrices and applying them to the attributes. The move command would be simpler... Here is the mhupp code adapted for proper operation: Merits to Mhupp for his code ;;----------------------------------------------------------------------------;; ;; Modify Text or Blocks to align Horozontal or Vertical ;; https://www.cadtutor.net/forum/topic/99091-i-need-a-lisp-to-align-blocks-and-texts-vertically/ (defun C:ATB () (C:AlignTextBlock)) (defun C:AlignTextBlock (/ vars vals pt1 pt2 vector mode ent ed pt newpt) (vl-load-com) (setq vars '(OSMODE ORTHOMODE) vals (mapcar 'getvar vars) ) (mapcar 'setvar vars '(0 1)) (setq pt1 (getpoint "\nAlignment Point: ")) (setq pt2 (getpoint pt1 "\nSelect Horozontal or Vertical:")) (setq vector (mapcar '- pt2 pt1)) (if (eq (car Vector) 0.0) (setq mode 'V) (setq mode 'H)) (while (setq ss (ssget '((0 . "TEXT,INSERT")))) (foreach ent (vl-remove-if 'listp (mapcar 'cadr (ssnamex SS))) (setq ed (entget ent) pt (cdr (assoc 10 ed)) newpt (if (eq mode 'V) (list (car pt1) (cadr pt) (caddr pt)) (list (car pt) (cadr pt1) (caddr pt))) ) (vla-Move (vlax-ename->vla-object ent) (vlax-3d-point pt) (vlax-3d-point newpt)) ; (if (or (not (assoc 11 ed)) (eq (cdr (assoc 11 ed)) '(0.0 0.0 0.0))) ;test if 11 doesnt exist or is 0,0,0 ; (setq ed (subst (cons 10 newpt) (assoc 10 ed) ed)) ; (setq ed (subst (cons 11 newpt) (assoc 11 ed) ed)) ; ) ; (entmod ed) ) ) (mapcar 'setvar vars vals) (princ) ) (princ "\nAlignTextBlock Lisp Loaded") (princ "\nType ATB or AlignTextBlock to run command")

Very quickly try these changes: (setq alpty (cadr alpt)) ---> (setq alptx (car alpt)) (setq newpt (list inptx alpty)) --> (setq newpt (list alptx inpty))

ah yes. https://www.cadtutor.net/forum/topic/98598-just-a-funny-basic-toolbar/

Try this also. Seemed to work and makes a vector list code of objects. VECTORIZE.lsp

That would be The Dragon, RLX maybe? He had a menu but not sure if that is the one you're thinking off? (I was impressed but been too busy this year to get into using it)

Didn't someone have a lisp that created a menu system in model space ? on the right side of the current view.

Still starting from the mhupp code, I think this corresponds to your request: align all the blocks to the position of a block. Same for text or mtext. (defun C:ABC ( / vars vals ss ssref pt_ref pt2 vector mode ent ed pt newpt) (vl-load-com) (setq vars '(OSMODE ORTHOMODE) vals (mapcar 'getvar vars) ) (mapcar 'setvar vars '(0 1)) (princ "\nSelect Block or Texte.") (while (null (setq ss (ssget '((0 . "*TEXT,INSERT")))))) (princ "\nSelect ONE texte or block to align selection") (while (null (setq ssref (ssget "_+.:E:S" '((0 . "*TEXT,INSERT")))))) (setq pt_ref (cdr (assoc 10 (entget (ssname ssref 0))))) (setq pt2 (getpoint pt_ref "\nSelect Horozontal or Vertical:")) (setq vector (mapcar '- pt2 pt_ref)) (if (eq (car Vector) 0.0) (setq mode 'V) (setq mode 'H)) (foreach ent (vl-remove-if 'listp (mapcar 'cadr (ssnamex SS))) (setq ed (entget ent) pt (cdr (assoc 10 ed)) newpt (if (eq mode 'V) (list (car pt_ref) (cadr pt) (caddr pt)) (list (car pt) (cadr pt_ref) (caddr pt))) ) (vla-Move (vlax-ename->vla-object ent) (vlax-3d-point pt) (vlax-3d-point newpt)) ) (mapcar 'setvar vars vals) (princ) )

I Just try to avoid using command. apparently their is a bug in autocad 2026 and newer that balloons lisp to 276 seconds when it only took .24 second in older versions. just figured everything contained in the block id would move when updating. cant test right but does adding the 66 . 0 exclude single text outside of blocks? vla-move works for me keep it simple.

@mhupp If you want to keep (entmod) in your code and make it efficient, you can refine your filter (ssget) to exclude blocks with attributes. (setq ss (ssget '((0 . "TEXT,INSERT") (66 . 0))))

notice your lisp name is MoveLayerAllLayouts that mean other tabs other than model? ssget "_X" wont pick up things on other tabs if they are on that layer. So if your moving everything might assume your deleting the old layer. if that's the case just rename it. no need to mess with ssget and will pick up everything. (vl-cmdf "_.-Rename" "LA" old new)

Using @BIGAL suggestion for ssget to only pick up text and blocks set in a while loop so you can align multiple things to the same axis. also added a visual to choose between horizontal or vertical alignment. AlignT&B.lsp

After quickly looking into this... Unchecking the box is equal to no limit. Had a little time at work so... quickly tested. ;;; Uncheck the Max leader points in the Multileader Style dialog box. (or set a value). | ;;; | ;;; https://www.cadtutor.net/forum/topic/99083-looking-for-lisp-to-uncheck-max-leader-points-for-all-mleader-styles/#findComment-678964 | ;;; | ;;; By SLW210 (a.k.a. Steve Wilson) | ;;; | ;;;*************************************************************************************************************************************| ;;;*************************************************************************************************************************************| (defun c:UnchkMLdrPnts (/ acApp doc dict obj) (vl-load-com) (setq acApp (vlax-get-acad-object)) (setq doc (vla-get-ActiveDocument acApp)) (setq dict (vla-Item (vla-get-Dictionaries doc) "ACAD_MLEADERSTYLE")) (vlax-for obj dict (if (vlax-property-available-p obj 'MaxLeaderSegmentsPoints) (vla-put-MaxLeaderSegmentsPoints obj 0) ;; 0 = unlimited ) ) (princ "\nMax leader points box is unchecked.") (princ) )

Hi thanks for you replies. Eventually I realized that it must have been an issue with having too many layers at once. I just selected and exported 1 layer at a time and it worked well

Besides what @mhupp stated, try turning off antivirus, anti-malware, etc. Could be simply having portions of the install blocked. You might look and make sure you are installing as admin, make sure you do a "COMPLETE UNINSTALL" (AutoCAD has a procedure for this, not sure about BricsCAD), then reinstall as admin with antivirus, etc turned off.

A snippet here, this appears to set clipboard text to plain text - removes formatting (fonts etc). (defun c:TXTCBNF ( / htmlfile result ) ; TXT: text, CB: Clip Board, NF: No Format ;; Set clipboard text to no format (setq result (vlax-invoke (vlax-get (vlax-get (setq htmlfile (vlax-create-object "htmlfile")) 'ParentWindow) 'ClipBoardData) 'getData "Text")) (vlax-release-object htmlfile) ;; Put no format text into clipboard (vlax-invoke (vlax-get (vlax-get (setq htmlfile (vlax-create-object "htmlfile")) 'ParentWindow) 'ClipBoardData) 'setData "Text" result) (vlax-release-object htmlfile) (princ) ) Always many ways to do the same thing! If you are OK to do LISPs else just ask (A part of a larger LISP of mine, so think this works... but it might not - my one puts in some thoughts between grabbing the clip board text and resetting it such as mm2 goes to 'squared', some company texts to upper case if not and so on)

What are the "objects" you are pasting? What are the reference "points", are they actual points in the drawing or just coordinates to be entered manually? Do you have an example drawing?

Good day I would like to share this lisp for anyone need it Regards extcoord-extract_coords of anything -REV20.lsp

From HERE. Also mentioned in that post was Terry Millers GetVectors, but he has a new site now. AutoLISP Code

You could try these, the first one, test, will return lists for each line with the 4 values for the 2 end points (x1, y1, x2, y2). You need to also select a reference point to measure these points to. I tend to draw the thumbnail in a 75x75 square, reference point is top left corner and all the thumbnail entities are lines - nothing else - function name test The second one I haven't adjusted, copied straight from my library, blockthumbrecord, select the lines, select the reference point and it will return some results in a new notepad window... so not been adjusted you might need to add a function in there (LM: functions from Lee Macs website). Also the notepad will add in other stuff that is handy for me - a good learning exercise to look at the code and adjust it so it works for you. Both will give you sets of points for each line in a selection which you can copy and paste for your needs. Note that the vector graphics cannot do fractions, so maybe best set your snaps and grid to '1' and to get a smooth curve, a few short lines and make sure that the ends all touch. (defun c:test ( / ) (defun LM:round ( n ) (fix (+ n (if (minusp n) -0.5 0.5))) ) (princ "\nSelect LINES for thumbnail: ") ;;Get entities (setq ss (ssget '((0 . "LINE")))) (if (not ss) ;check for nil selection set (progn (princ "Nothing selected.") (exit) ) ;end progn ) ;end if ;;get list of entities (setq LinesList (list)) (setq acount 0) (setq BasePoint (getpoint "\Select Top Left Corner of Tumbnail (75x75 square)")) (setq BasePoint (reverse (cdr (reverse BasePoint)))) (while (< acount (sslength ss)) ;loop for every entity in the set (setq en (ssname ss acount)) ;get entity name (setq ed (entget en)) ;get entity definition (setq pt1 (reverse (cdr (reverse (cdr (assoc 10 ed)))))) ;; X and Y only (setq pt1 (mapcar '- BasePoint pt1)) ;; Shift by basepoint (setq pt1 (mapcar 'LM:round (mapcar 'abs pt1))) ;; Absolute value rounded to nearest 1 (setq pt1 (list (rtos (car pt1) 2 0) (rtos (cadr pt1) 2 0) )) ;; List items to strings (setq pt2 (reverse (cdr (reverse (cdr (assoc 11 ed)))))) ;; X and y Only (setq pt2 (mapcar '- BasePoint pt2)) ;; Shift by basepoint (setq pt2 (mapcar 'LM:round (mapcar 'abs pt2))) ;; Absolute value rounded to nearest 1 (setq pt2 (list (rtos (car pt2) 2 0) (rtos (cadr pt2) 2 0) )) ;; List items to strings (setq pt1 (append pt1 pt2)) ;; Create thumbnail definition line (setq LinesList (append LinesList (list pt1)) ) ;; Add definition line to thumb. definition (setq acount (+ acount 1)) ) ;;end while LinesList ) (defun c:blockThumbrecord ( / ss LinesList acount en ed pt1 pt2 tempblock f ) ;;Opens notepad wth lines coordinates (defun LM:lst->str ( lst del / str ) (setq str (car lst)) (foreach itm (cdr lst) (setq str (strcat str del itm))) str ) ;;Get entities (setq ss (ssget '((0 . "LINE")))) (if (not ss) ;check for nil selection set (progn (princ "Nothing selected.") (exit) ) ;end progn ) ;end if ;;get list of entities (setq LinesList (list)) (setq acount 0) (while (< acount (sslength ss)) ;loop for every entity in the set (setq en (ssname ss acount)) ;get entity name (setq ed (entget en)) ;get entity definition (setq pt1 (cdr (assoc 10 ed))) (setq pt1 (list "list" (rtos (abs (car pt1)) 2 0) (rtos (abs (cadr pt1)) 2 0) )) (setq pt2 (cdr (assoc 11 ed))) (setq pt1 (append pt1 (list (rtos (abs (car pt2)) 2 0) (rtos (abs (cadr pt2)) 2 0) "TxCol"))) (setq LinesList (append LinesList (list pt1)) ) (setq acount (+ acount 1)) ) ;;end while ;;write to a temp file (if (strcat (getvar "TEMPPREFIX") "Thumbnail.txt")(vl-file-delete (strcat (getvar "TEMPPREFIX") "Thumbnail.txt"))) (setq tempblock (strcat (getvar "TEMPPREFIX") "Thumbnail.txt")) ;;add check if this exists (setq f (open tempblock "w")) ;;open file (write-line " (Defun Sel--**FUNCTIONNAME**-- ( origin BgCol TxCol ImgTile Control / BlkList return) " f) (write-line " (if (= Control \"Vector\") " f) (write-line " (progn " f) (write-line " (start_image ImgTile) " f) (write-line " (fill_image (- origin 0) 0 (+ origin 85) 85 BgCol) " f) (write-line " (setq BlkList (list " f) (setq acount 0) (while (< acount (length LinesList)) (write-line (strcat "(" (LM:lst->str (nth acount LinesList) " ") ")" ) f) (setq acount (+ acount 1)) ) (write-line " )) ; end setq end list" f) (write-line " (setq Xoff 0)(setq YOff 0)" f) (write-line " (CreateVector BlkList XOff YOff TxCol)" f) (write-line " (end_image)" f) (write-line " ); end progn" f) (write-line " (setq Return \"--**FUNCTION NAME TO INSERT BLOCK**--\")" f) (write-line " ) ; end if" f) (write-line " )" f) (write-line "" f) (write-line "; -OK- ;" f) (close f) ;;open notepad & file ;; (startapp "c:/windows/notepad.exe" tempblock) (vl-catch-all-apply (function (lambda () (setq obj (vlax-get-or-create-object "WScript.Shell")) (vlax-invoke obj 'Run (strcat "c:/windows/notepad.exe \"" tempblock "\"")) ;; or notepad++ if that is used. (setvar 'cmdecho 0) (vlax-invoke obj 'AppActivate "Notepad") ; Title bar name of application. ++ for notepad++ but still works? ) ) ) (if obj (vlax-release-object obj)) (princ) ) These should make it possible to easily get the coordinates to make something like this as a thumbnail: (The Engineers keep asking me to add a legend.... so I do) The second LISP makes up the code I need for my block selection routine, thumbnail graphic, saved in the code, see the image I like, click and paste

As far as I remember the numbers are pairs of points, in your '(' 18 ad 17, 16 and 15..... with the X coordinate to the left and Y to the TOP (unlike usual CAD where Y is counted from the bottom) So your code has an odd number of numbers - I think they need an even number. CAD is off for the evening now, but that might help. You could also post the link to Lees code - usually there is an explanation in there, and also perhaps a screen shot of what you are getting or any errors.

@Tsuky works as well, not sure what @sd2006 is struggling with. The one I posted works the same as the OP's in first post for horizontal align, I just added the vertical align and some error checking. Home today, so also tested in AutoCAD 2000i.

Copy what @SLW210 posted in the other thread into a text file save it as .lsp and load that instead of abc.lsp. The command to type to run SLW210's Lisp is "AlignXY"

You have a topic on this lisp already. please take the time to read it. Bạn đã có một chủ đề về Lisp này rồi. Xin hãy dành chút thời gian để đọc nó.

Nice code SLW210. I did get the error that "acad" is a protected symbol, so its better to use a different name for that one. The code worked fine regardless. We can also do the same thing with entmod: (defun c:unlimitedmleaders (/ e enx) (foreach e (vl-remove-if-not (function (lambda (a) (= (car a) 350))) (dictsearch (namedobjdict) "ACAD_MLEADERSTYLE") ) (setq enx (entget (cdr e))) (entmod (subst '(90 . 0) (assoc 90 enx) enx)) ) (princ) )

@mhupp's LISP works for me, but I took a stab at it anyway. I just tweaked the original abc.lsp, I would prefer if you would post a link to the original so I can properly credit the author. For more information, Kent Cooper has quite a few LISPs for aligning blocks for certain and probably (M)Text, etc. (as well as sorting spacing etc.) on the Autodesk Forums, they should be easy to locate. This worked on your provided drawing as well as one I made for test with Polylines, Lines, Blocks, Mtext, Text and Attributes. ;;; Align selected objects in X or Y direction with reference object. | ;;; | ;;; https://www.cadtutor.net/forum/topic/99091-i-need-a-lisp-to-align-blocks-and-texts-vertically/ | ;;; | ;;; Modified from the provided abc.lsp (author unknown) by SLW210 (a.k.a. Steve Wilson) | ;;; | ;;; Was horizontal only, added vertical align option, error and undo. | ;;; | ;;; *****************************************************************************************************| (defun c:AlignXY (/ *error* OS mode ss albl alpt alptx alpty ctr ename inpt inptx inpty newpt olderr ) ;; Error handler (setq olderr *error*) (defun *error* (msg) (if (/= msg "Function cancelled") (princ (strcat "\nError: " msg)) ) (if OS (setvar "OSMODE" OS) ) (command "_.UNDO" "_End") (setq *error* olderr) (princ) ) ;; Save and set system vars (setq OS (getvar "OSMODE")) (setvar "OSMODE" 0) ;; Start UNDO group (command "_.UNDO" "_Begin") ;; Ask user for alignment direction (initget "Horizontal Vertical") (setq mode (getkword "\nAlign [Horizontal/Vertical] <Horizontal>: ")) (if (null mode) (setq mode "Horizontal") ) ;; Select objects (princ "\nSelect blocks or text to align evenly: ") (if (not (setq ss (ssget))) (progn (princ "\nNothing selected.") (*error* "Function cancelled") (exit) ) ) ;; Select reference object (if (not (setq albl (entsel "\nSelect reference text or block: ")) ) (progn (princ "\nNo reference selected.") (*error* "Function cancelled") (exit) ) ) (setq albl (car albl)) (setq alpt (cdr (assoc 10 (entget albl)))) (if (not alpt) (progn (princ "\nInvalid reference object.") (*error* "Function cancelled") (exit) ) ) (setq alptx (car alpt)) (setq alpty (cadr alpt)) ;; Loop through selection (setq ctr 0) (while (setq ename (ssname ss ctr)) (setq inpt (cdr (assoc 10 (entget ename)))) (if inpt (progn (setq inptx (car inpt)) (setq inpty (cadr inpt)) ;; Decide new point (cond ((= mode "Horizontal") (setq newpt (list inptx alpty)) ) ((= mode "Vertical") (setq newpt (list alptx inpty)) ) ) (command "move" ename "" inpt newpt) ) ) (setq ctr (+ ctr 1)) ) ;; End UNDO group cleanly (command "_.UNDO" "_End") ;; Restore vars and error handler (setvar "OSMODE" OS) (setq *error* olderr) (prompt "\nAlignment complete.") (princ) )

Perhaps this would help after you determine the primary dimensions of desired ellipsoid.

Use my above lisp AlignTextBlock that has @Tsuky fix. align.mp4

added a "*" to ssget to pick up mtext or text. updated the foreach to pull the vla-objects name from the selection set. ;;----------------------------------------------------------------------------;; ;; Modify Text or Blocks to align Horozontal or Vertical ;; https://www.cadtutor.net/forum/topic/99091-i-need-a-lisp-to-align-blocks-and-texts-vertically/ (defun C:ATB () (C:AlignTextBlock)) (defun C:AlignTextBlock (/ vars vals pt1 pt2 vector mode ent ed pt newpt) (vl-load-com) (setq vars '(OSMODE ORTHOMODE) vals (mapcar 'getvar vars) ) (mapcar 'setvar vars '(0 1)) (setq pt1 (getpoint "\nAlignment Point: ")) (setq pt2 (getpoint pt1 "\nSelect Horozontal or Vertical:")) (setq vector (mapcar '- pt2 pt1)) (if (eq (car Vector) 0.0) (setq mode 'V) (setq mode 'H)) (while (setq ss (ssget '((0 . "*TEXT,INSERT")))) (foreach obj (mapcar 'vlax-ename->vla-object (vl-remove-if 'listp (mapcar 'cadr (ssnamex SS)))) (setq pt (vlax-safearray->list (vlax-variant-value (vla-get-InsertionPoint obj))) newpt (if (eq mode 'V) (list (car pt1) (cadr pt) (caddr pt)) (list (car pt) (cadr pt1) (caddr pt))) ) (vla-Move obj (vlax-3d-point pt) (vlax-3d-point newpt)) ) ) (mapcar 'setvar vars vals) (princ) ) (princ "\nAlignTextBlock Lisp Loaded") (princ "\nType ATB or AlignTextBlock to run command")

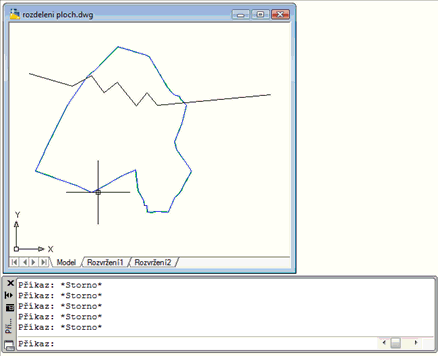

i try to write an extra function to split the area from a polyline like the image but i can not understand how he do this (defun userpt ( / pl vlist pts ptb p1 p2 dir len perp tval korak min-korak iter max-iterations big pA pB vertsA vertsB v i areaA target) (setq pl (car (entsel "\nSelect Polyline: "))) (if (not pl) (progn (princ "\nNo selection.") (exit)) ) (setq vlist (getver_lwpoly pl)) (if (< (length vlist) 3) (progn (princ "\nInvalid polygon.") (exit)) ) (setq p1 (nth 0 vlist)) (setq p2 (nth 1 vlist)) (setq dir (mapcar '- p2 p1)) (setq len (distance p1 p2)) (setq dir (mapcar '(lambda (x) (/ x len)) dir)) (setq perp (list (- (cadr dir)) (car dir) 0.0)) (setq pts (getpoint "\nFirst point: ")) (setq ptb (getpoint "\nSecond point: ")) (command "_area" "e" pl) (setq target (/ (getvar "area") 2.0)) (setq tval 0.0) (setq korak 1.0) (setq min-korak 0.0001) (setq max-iterations 60) (setq iter 0) (setq big 100000.0) (princ "\nSolving...") (while (< iter max-iterations) (setq pA (mapcar '+ pts (mapcar '(lambda (x) (* x big)) dir))) (setq pB (mapcar '- pts (mapcar '(lambda (x) (* x big)) dir))) (setq pA (mapcar '+ pA (mapcar '(lambda (x) (* x tval)) perp))) (setq pB (mapcar '+ pB (mapcar '(lambda (x) (* x tval)) perp))) (setq vertsA '()) (setq vertsB '()) (foreach v vlist (setq i v) (if (> (+ (* (- (car i) (car pA)) (- (cadr pB) (cadr pA))) (* (- (cadr i) (cadr pA)) (- (car pA) (car pB)))) 0) (setq vertsA (cons i vertsA)) (setq vertsB (cons i vertsB)) ) ) (setq areaA 0.0) (foreach v vertsA (setq areaA (+ areaA (car v))) ) (if (< areaA target) (setq tval (+ tval korak)) (setq tval (- tval korak)) ) (setq korak (/ korak 1.2)) (if (< korak min-korak) (setq korak min-korak) ) (setq iter (1+ iter)) ) (princ "\nCreating polygons...") ;; polygon A (entmakex (append (list (cons 0 "LWPOLYLINE") (cons 100 "AcDbEntity") (cons 100 "AcDbPolyline") (cons 90 (length vertsA)) (cons 70 1) ) (mapcar '(lambda (p) (cons 10 p)) vertsA) ) ) ;; polygon B (entmakex (append (list (cons 0 "LWPOLYLINE") (cons 100 "AcDbEntity") (cons 100 "AcDbPolyline") (cons 90 (length vertsB)) (cons 70 1) ) (mapcar '(lambda (p) (cons 10 p)) vertsB) ) ) (princ "\nDone .") (princ) ) Can any one help ? Thanks

I used to use JTB Align Plus - JTB World. I need IT to reinstall, haven't needed it recently, so I'll probably wait until I need, but pretty sure it will do everything the OP wants and more. I have a LISP, but IIRC it may need a lot of tweaking for the OPs usage.

I ran into something similar with batch DXF → DWG. One thing to watch is SAVE vs SAVEAS — in batch, SAVE doesn’t always behave as expected, especially if the drawing has no proper name yet. Also, FILEDIA needs to be set to 0 or the process can stop on dialogs. For small batches, the LISP solutions above should work fine. For larger batches, I found using accoreconsole with a simple script more reliable.

(setq oldLayer (getstring T "\nEnter the name of the layer to move FROM: ")) ;; Prompt for target layer (setq newLayer (getstring T "\nEnter the name of the layer to move TO: "))

The block att misaligned text.

Thank you so much. This has been annoying me for decades. Pity I only found out how to fix it right on my retirement.

I find working in BricsCAD very similar to AutoCAD. For the dynamic blocks would just replaced them with the BricsCAD version or just stick to standard blocks. In terms of clarity I don't see any differences.. The AutoCAD UI is a bit nicer, it AutoCAD Map offers some features BricsCAD doesn't if you don't user them it wont make a difference for you. It feels 100% natural… very similar to using AutoCAD. Common commands they are nearly identical … you also have the ability to define the alias just like in AutoCAD(pgp file). Load custom menus /toolbars (mns). Load Custom Lintypes(lin).. I would research more about what tools you depend on? What Commands? importing, exporting tools? Cleanup tools? And cross check to ensure BricsCAD covers that adequately.

You posted this in the AutoCAD LT Forum, are you using AutoCAD LT? Can you post the notepad .txt file and the .dwg?

I have found if you do a support request Bricscad are very good and do respond. I am running Bricacad V25 with Win 11, I7, 16gb, NVIDIA GEOFORCE GTX and works fine, yes have locked up on occasions but task manager always allows me to close BRICSCAD, normally a programming problem, infinite loop etc. Did have a fatal error opening a DWG sent via Email, which I think corrupted the large dwg. Have downloaded and installed multi versions over time and had no problems.

Thanks, I'll give it a try.

This uses nentsel to select the attribute iteslf inside the block along with a while loop to keep adding to sum until you not select anything. untested & done in notepad. BlockSum.lsp

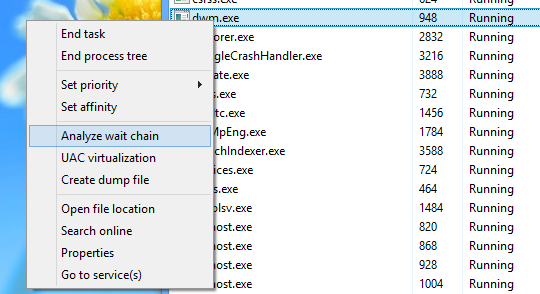

Posting on their official forums would get this more att. System wide freeze/crash is pretty serious. hopefully just stuck in a loop or something and not a virus. Try booting in safe mode or disconnected from the internet. remove any software or add-ins that were installed recently. Check if windows needs to update. before the whole os freezes you need to look at the wait chain for the process. Go into task manger > Details right click analyze wait chain for BricsCAD process might have some answers on why its freezing. One of our software didn't like onedrive running before itself and would freeze until it was closed. had to remove onedrive from the startup process and start it later.

Can you provide your computer, OS and graphics card/driver specifications? Are there any error messages? OS crash logs?

Have a close look at my Water Supply program which should facilitate your work significantly. Trial version is outdated now. https://autolispprograms.wordpress.com/water-supply-2/

My 5 cent (defun c:LLD () (c:LayerLegend)) (defun c:LayerLegend ( / df i l ln p1 pt sp DSC ENT NM ) ;; Lee Mac 2011 (vl-load-com) (if (and (setq pt (getpoint "\nSpecify Point for Legend: ")) (setq ln (* 100 (getvar 'TEXTSIZE))) ;(getdist "\nSpecify Length of Lines: " pt)) (setq pt (trans pt 1 0)) (setq i -1) (setq sp (* 2.5 (getvar 'TEXTSIZE))) ) (while (setq df (tblnext "LAYER" (null df))) (if (/= 16 (logand 16 (cdr (assoc 70 df)))) (setq l (cons (cdr (assoc 2 df)) l)) ) (setq l (acad_strlsort l)) )) (foreach n l (setq ent (vlax-ename->vla-object (tblobjname "LAYER" n))) (setq dsc (vlax-get-property ent 'Description)) (setq nm (vlax-get-property ent 'name)) (setq lc (itoa (vla-get-color ent ))) (entmakex (list (cons 0 "LINE") (cons 8 n) (cons 6 "ByLayer") (cons 62 256) (cons 10 (setq p1 (polar pt (* 1.5 pi) (* (setq i (1+ i)) sp))) ) (cons 11 (polar p1 0. ln)) (cons 370 -1) ) ) (entmakex (list (cons 0 "TEXT") ;*** (cons 1 (strcat n " : " lc " : " dsc)) ;* (the string itself) (cons 6 "BYLAYER") ; Linetype name (cons 7 (getvar 'TEXTSTYLE)) ;* Text style name, defaults to STANDARD, not current (cons 8 n) ; layer (cons 10 p1) ;* First alignment point (in OCS) (cons 11 p1) ;* Second alignment point (in OCS) (cons 39 0.0) ; Thickness (optional; default = 0) (cons 40 (getvar 'TEXTSIZE)) ;* Text height (cons 41 1.0) ; Relative X scale factor, Width Factor, defaults to 1.0 (cons 62 256) ; color (cons 71 0) ; Text generation flags (cons 72 0) ; Horizontal text justification type (cons 73 1) ; Vertical text justification type (cons 210 (list 0.0 0.0 1.0)) (cons 370 -1) ))) (princ) )

AutoCAD has PDFSHXTEXT to convert the vector lines/arcs that once were SHX texts back to texts. Post the converted PDF file from ZWCAD. Sounds like you need to use something better than ZWCAD if it isn't capable of doing what you need. This still goes back to you need to use TTFs.

Hello, for a project I needed to find the shortest way between two points in a network, so I searched for a pathfinding algorithm in AutoLISP. Since I did not find anything - here comes my implementation of the A* pathfinding algorithm. (If you don't know what A* is - I got my information here: http://en.wikipedia.org/wiki/A*_search_algorithm) The program finds the shortest way in a network of polylines between two points, the polylines representing the paths you are allowed to move along. Two polylines are considered connected if one of their vertices match. The resulting path is returned as a new polyline. The program and a test.dwg are attached to this post. I would like to extent the network/edges in a way, that polylines are also considered connected if the vertice of one of them is on the line of another. I could use some help with that. I hope this is useful for someone. astar_01.lsp test_01.dwg

A version also for closed polylines. Minimally tested... centerPline_v2.LSP

I would highly recommend Blender. As Irm mentioned, it's free, and it can do pretty much everything that the expensive programs can do. But, if you're creating your models in Autocad, It is a little tricky to export them to take into Blender, but it is possible, and I have a video on my Youtube channel that shows how to do it.

I think it was a Renault car it had only 3 wheel studs so the front hub would look something like that. Note the internal groove for a seal. Thats where the section would show that clearly.

The above could alternatively be written: (defun LM:data->xdata ( x ) (cond ( (= 'str (type x)) (list (cons (if (handent x) 1005 1000) x))) ( (= 'real (type x)) (list (cons 1040 x))) ( (= 'int (type x)) (list (cons (if (< -32769 x 32768) 1070 1071) x))) ( (= 'list (type x)) (append '((1002 . "{")) (apply 'append (mapcar 'LM:data->xdata x)) '((1002 . "}")))) ( (list (cons 1000 (vl-prin1-to-string x)))) ) )
