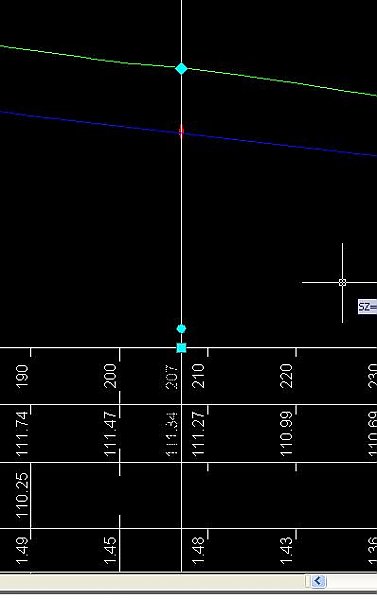

spittle Posted May 13, 2009 Posted May 13, 2009 I want to create a single label on my profile view to give me my Chainage, Ground Level, Proposed Invert Level, and level difference for points that I choose along my alignment. Is this possible? this is to add information to the existing bandsets that I have at specific horizontal alignment bends. Unfortunately I only need these at bends over 11.25deg so changing my band styles to add information at these points is not an option. Plus doing that always overlaps texts so is pretty useless. Currently all I've been able to do use one that shows your chainage and a level that you pick in the profile as shown in the attached JPEG. Quote
