JoshK Posted May 28, 2009 Posted May 28, 2009 Hello Guys & Gals, I am pretty stuck, and was wondering if someone could help me. I have created an object, which I have attached to this post. The problem I am having is making the object one piece and in 3D, I have tried joining the pieces together and extruding, and switching to Isometric SE viewport, but it doesn't seem to work. If anyone could give me a hand with this piece, and just explain how they did it, I would appreciate it very much! Thank you very much, for whatever help you can contribute! Josh Foot Of Bike Stand.dwg Quote
JD Mather Posted May 29, 2009 Posted May 29, 2009 You have used combinations of hatch, solids and surfaces. Use all solids. You might go through the tutorials in my signature. This stuff should have been covered in your training. Quote

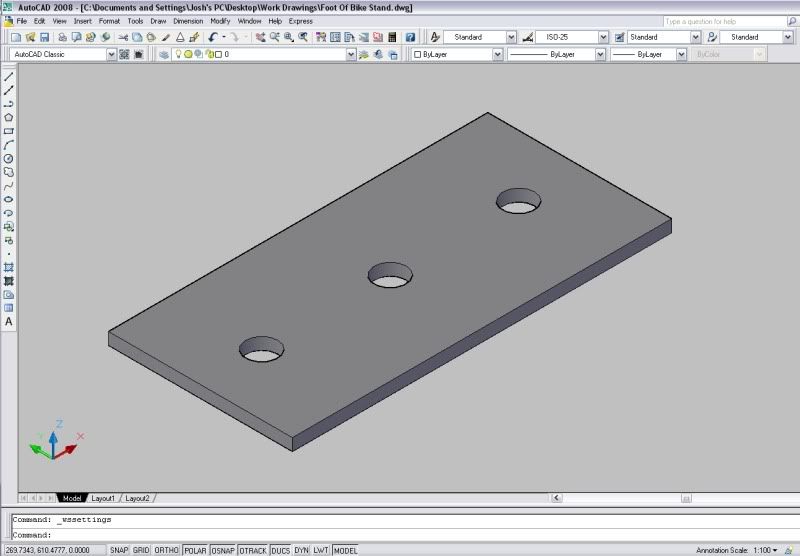

JoshK Posted May 29, 2009 Author Posted May 29, 2009 Thank you very much, I will give this a try. I appreciate your help very much, it's great having such AutoCAD genius's around! Once again, thank you guys! Edit: I did it, and here is my results, thanks again guys! Quote
stevsmith Posted May 30, 2009 Posted May 30, 2009 Not a problem Josh. Another hint would be, Try not to use the Line command when doing 3d. Stick to pollylines & closed shapes like Rectangle and Circle. Extruding these will give you a true solid. Quote
JD Mather Posted May 30, 2009 Posted May 30, 2009 Not a problem Josh. Another hint would be, Try not to use the Line command when doing 3d. Stick to pollylines & closed shapes like Rectangle and Circle. Extruding these will give you a true solid. Actually I would not even use Extrude for something like this. Presspull is faster (one operation instead of extrude and subtract) and presspull isn't finicky about lines, polylines, arcs, circles, splines or any combination. Quote
stevsmith Posted May 30, 2009 Posted May 30, 2009 Presspull is faster I suppose it is, but then again alot of people dont use upto date cad software post 2007 Quote
JoshK Posted May 30, 2009 Author Posted May 30, 2009 Where may I access this "Presspull" action, i'm using 2008 by the way! Thank you guys! Quote
Cad64 Posted May 30, 2009 Posted May 30, 2009 Just type PRESSPULL at the command line. Or select it from the DASHBOARD. Quote
JoshK Posted May 31, 2009 Author Posted May 31, 2009 Oh ok thank you, I've got it now! The only thing I need to know now, isn't about 3D modeling, but I don't see a point in making another thread. So here is my question, how do you get your model into the paper space so you can put it into like a third angle projection, with a solid model in the top right hand corner? With a title block and everything, I need to learn for my job. Once again thank you for any help! Quote
Cad64 Posted May 31, 2009 Posted May 31, 2009 Click on your Layout tab. There should already be a viewport, so double click inside the border to activate model space. Now do a Zoom Extents. This will center and zoom in on your model to fill the viewport. Check this link for more info: http://www.we-r-here.com/cad/tutorials/level_2/2-8.htm Quote
