How to show hidden lines of a 3d model.

[humaironline]

I made a tool for my company in 3D. Now i want to take its print in different views in 2d mode.



But i am unable to set their hidden line.



how to show it..



Pls help me.

punching tool.dwg

[humaironline]

I made a tool for my company in 3D. Now i want to take its print in different views in 2d mode.



But i am unable to set their hidden line.



how to show it..



Pls help me.

punching tool.dwg

[stevsmith]

Im not sure if 2006 has the flatshot command.

[ReMark]

Follow these instructions and you'll get what you want using the SOLPROF command.



http://www.ellenfinkelstein.com/AutoCAD_tips_convert_3d_2d.html

[ReMark]

No need to double post. Thank you.

[Cad64]

Duplicate threads have been merged.

[David Bethel]

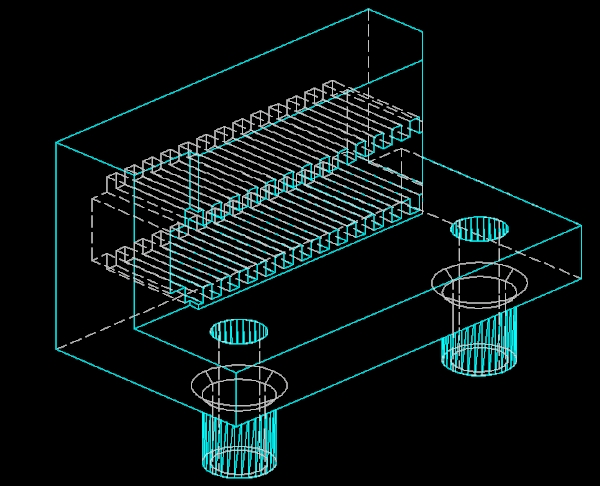

I didn't quite understand your exact request. Do you want to hidden lines like this? -David

[humaironline]

Yes David Bethel thats it...i realy want it...

how did you do it...pls send me the way ....



humair

[David Bethel]

I use DXB plotting for this type of work.

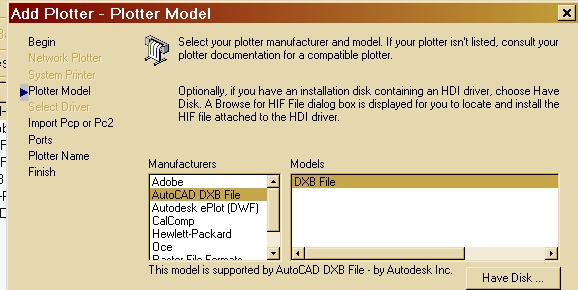

• Configure a DXB plotter - See attached

• Setup the view you want

• Plot 2 files with different names, 1 with hidden lines ON , 1 with hidden lines OFF

• Make a new layer

• Set LTYPE to HIDDEN

• I set CECOLOR to 8

• DXBIN the plot file with hidden lines OFF

• Set LTYPE to CONTINUOUS or BYLAYER

• I set CECOLOR to 4

• DXBIN the plot file with hidden line ON

• I set CECOLOR back to BYLAYER

Hope this helps. -David

[humaironline]

No. its difficult to do it... for me...

but sir, i request you to do it withing modeling area. not in plot area.



i did not find my answer yet................

any one help me...

[rkent]

I made a tool for my company in 3D. Now i want to take its print in different views in 2d mode.



But i am unable to set their hidden line.



how to show it..



Pls help me.



Checkout OBSCUREDLTYPE and OBSCUREDCOLOR.
