cmjay83 Posted June 23, 2009 Posted June 23, 2009 Hi I am very new to inventor I am using 2010 at the minute. I have a problem. I need to draw a tube approx 910mm high X 89o/d. I have go to put 7 holes in it straight through, I am not sure how to do this. I can do it on a square or a rectangular face but it won't let me do it on this because it's round? Appreciate any reply Cheers Quote
Devented Posted June 23, 2009 Posted June 23, 2009 Try using the default xy, yz, or xz planes (depending on orientation of your tube). you can sketch on these. then just use rectangular array feature. Quote
shift1313 Posted June 23, 2009 Posted June 23, 2009 also when you draw on one of these planes(assuming they are in the center of your tube) you can extrude cut in two directions at the same time. Quote
eribiste Posted June 23, 2009 Posted June 23, 2009 Yep, as suggested, expand the origin tree, make a suitable plane visible then sketch on it, not forgetting to project geometry so you can constrain and dimension your features as you need. I presume you're familiar with the F7 slice graphics command? When you hit return and extrude, use the cut and mid-plane options to create your apertures. Hope this helps Quote
cmjay83 Posted June 24, 2009 Author Posted June 24, 2009 Hi all thanks for the reply. But still having trouble creating a plane it seems to let me create one across the top and bottom of the tube, but won't let me create one vertically. Thanks Apreciate response. Quote
eribiste Posted June 24, 2009 Posted June 24, 2009 I wonder if you're doing all the right steps. To do what you want to achieve I wouldn't use the Work Plane tool. In the Model Browser, lower left pane on the screen where all your steps are recorded there is an icon for Origin. If you expand that by clicking on the little plus sign next to it the three 'creation' planes show up. Run the cursor over each one in turn, and one of them should intersect your tube, if you constrained the original circle sketch to the screen origin right at the start of your model. When you find the plane you like, RMB and check Visibility. You should now have the appropriate plane visible on screen, bissecting the tube, and you can sketch on this plane just like you can with a work plane. Hope that works out for you. Quote
MarkFlayler Posted June 24, 2009 Posted June 24, 2009 Try this document for a more precise description. http://imaginit.rand.com/files/Placing Features On Cylindrical Shapes.pdf Quote
MarkFlayler Posted June 24, 2009 Posted June 24, 2009 And something I wrote on why you need to use Origin Planes: http://imaginit.rand.com/files/The BORN Technique.pdf Quote

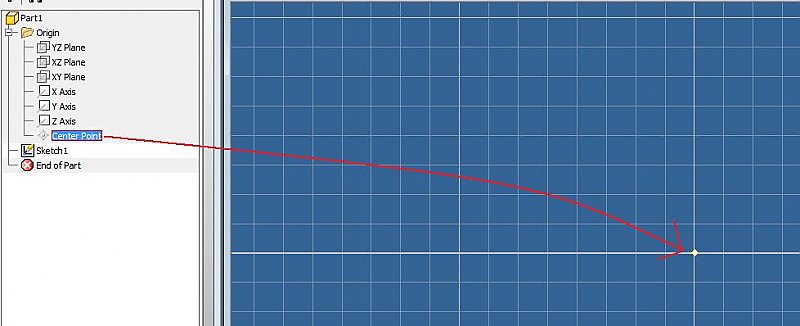

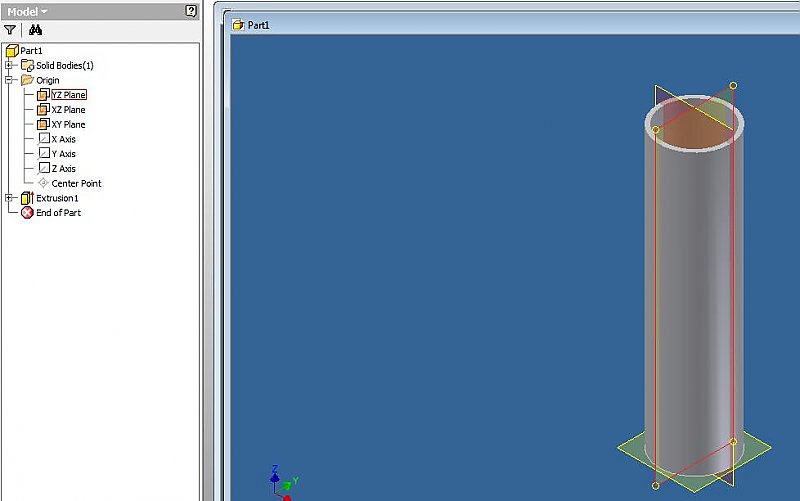

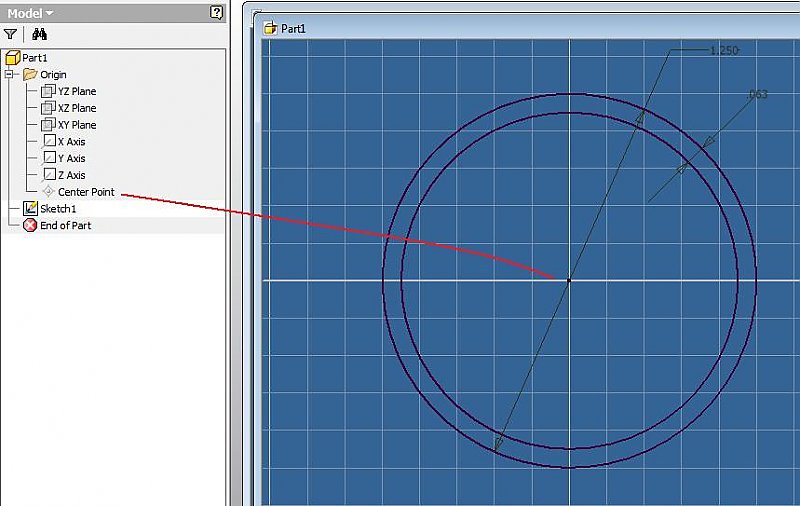

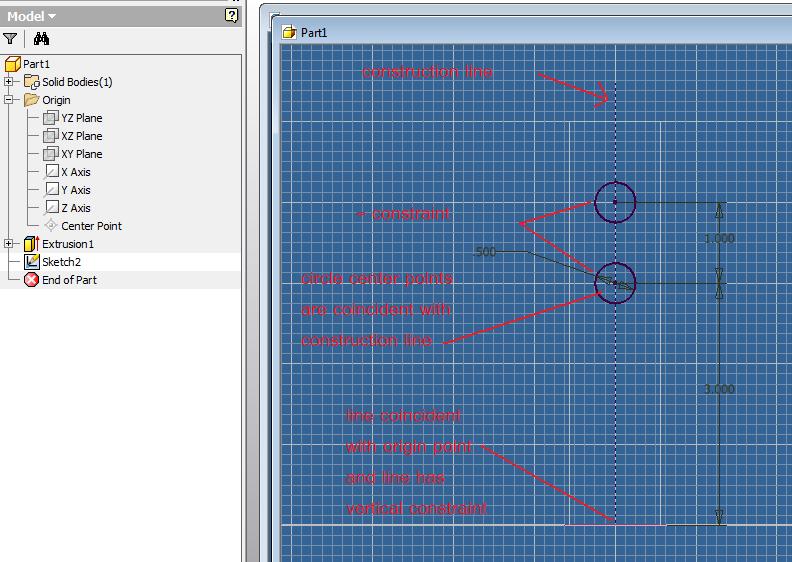

shift1313 Posted June 24, 2009 Posted June 24, 2009 Here are a couple screen shots for you. The first one shows you the origin point. This point is (0,0,0) and where your yz, xz and xy planes intersect. The second picture shows you my tube cross section drawn at the center point. Notice both circles are fully constrained, coincident with the center point and given a Diameter(and offset for inner circle). Third picture shows you that tube extruded and the 3 planes with Visibility on. you can see my planes bisect the tube(yz and xz) and the tube rests on the xy plane. This allows you to use these planes and not need to create a reference plane. The 4th pic might be a little hard to read but its the two holes sketched on one of those planes and dimmensioned. Quote
