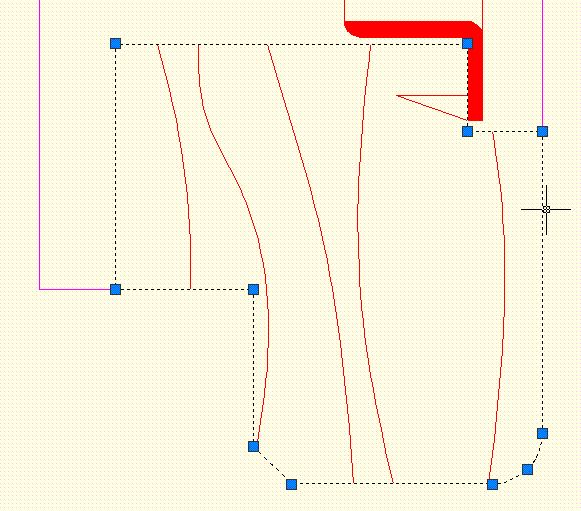

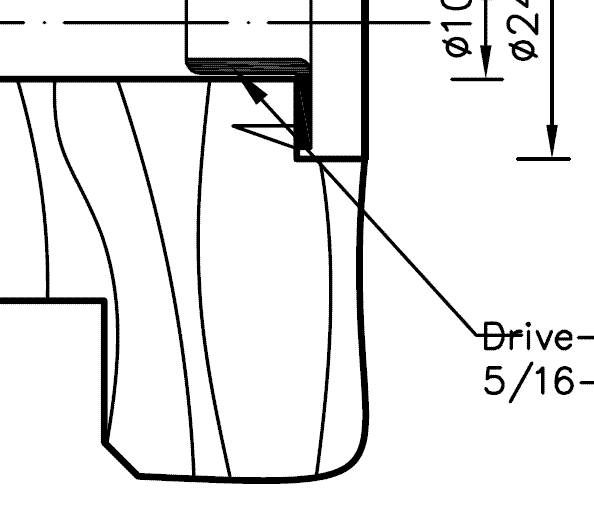

gomitell Posted June 25, 2009 Posted June 25, 2009 I have a wooden profile drawing placed in model space as block. When I export it to PDF (using Adobe PDF driver included in Adobe Acrobat 7.0 Professional) straight lines appears as curves. Outner polyline is made by using straight lines and fillet. Inside the profile there are splines. Why polyline looks different on drawing and in PDF? Why polyline is 'bended' like spline? How to repair the drawing? Does anyone got simillar problem? Quote
gomitell Posted June 25, 2009 Author Posted June 25, 2009 Why polyline looks different on drawing and in PDF? Why polyline is 'bended' like spline? How to repair the drawing? Does anyone got simillar problem? I think that the problematic is setting 'convert smooth lines to curves' at Adobe PDF Settings page in Advanced tab. The funny thing is that it affect all of my company's drawings -uh! :wink: Quote
