About Line

[musyas]

Can anyone figure what is this all about. If I make a single LINE with a thickness(width of 20) then the output view is normal rectangular shape, what should i fix to make it as normal line with a normal thickness??



PS: Sorry for Bad english

[ReMark]

Sounds like you are using Pline (polyline) that has a width of something other than "0". Try typing PLINEWID at the command line and setting it to zero. Does that solve your problem?



OR...



The line is being assigned a width that was set in the Layer Properties Manager. Did you bother to check?

[musyas]

THIS my sequence!

[ReMark]

THIS my sequence!



I'm not sure what it is you are trying to say.

[musyas]

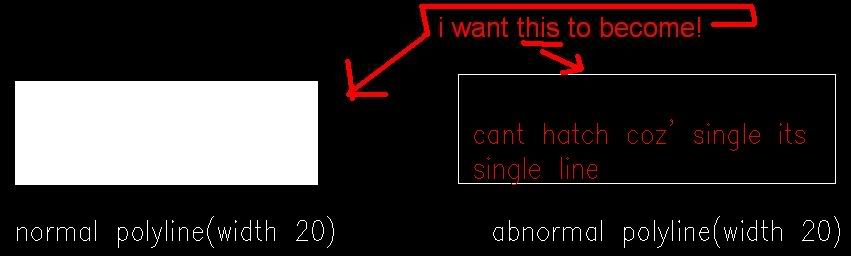

What i mean when i'm making a single polyline with a widht of 20, it turns it into rectungular.. just like in the second image..

[ReMark]

I see no images. Maybe I've been temporarily struck blind.



Reset PLINEWID to "0". You'll end up with a line that has no width and thus it won't look like a rectangle. That should solve your problem.



If you have a bunch of lines that have width already then use the Pedit command with the Multiple option. Select all the polylines and reset the width to "0".

[eldon]

Perhaps FILLMODE has got changed? It needs to be set at 1 for solid lines.

[ReMark]

musyas:



If FILLMODE is set to 0 then a polyline with a width other than zero will take on the appearance of a rectangle.

[musyas]

That' is the command what i'm searching for.. Thank you! you're nice!

[eldon]

you're nice!



Must be referring to ReMark

[ReMark]

Thank you! you're nice!



Must be referring to eldon.



I was nice...once. I promised never to let it happen again.
