hole in a surface...

[el reisubroc]

Hi all!

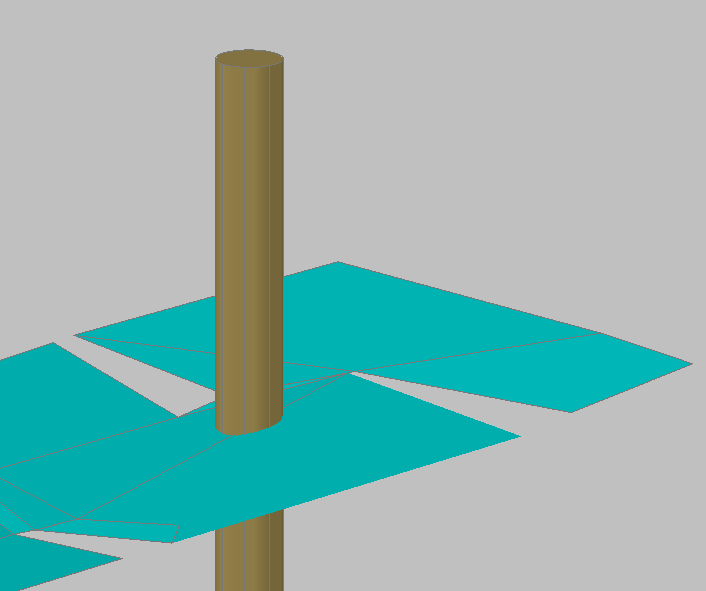

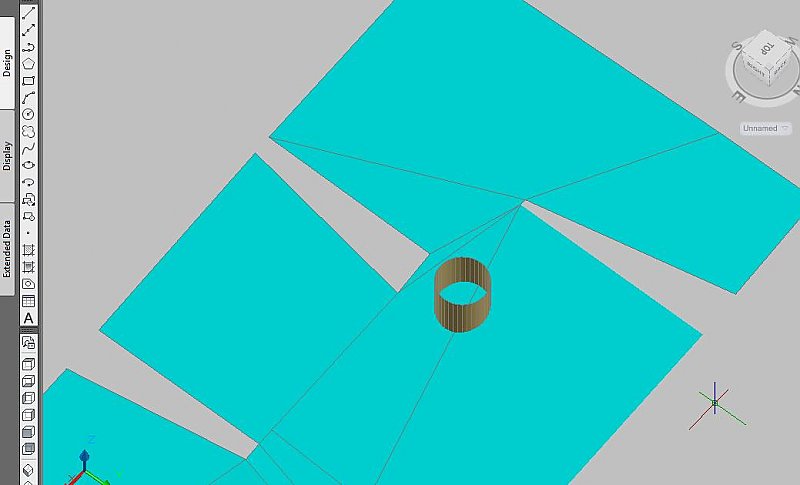

Im trying to create a circular hole in a not planar surface, but i dont know how to do this.

I attach the image.



Thank You

[stevsmith]

Hello el reisubroc, and welcome to the forums.



It looks like the cylinder you have made in not a solid object.

What you would need to do is create a circle and then use the extrude command to pass the circle through the surface. This will then turn the cylinder into a solid item. The next command you need to use would be subtract.

You will need to follow the instructions on the command line.

(you can also hit the F1 key while in the subtract command and a small demo will appear.)

[el reisubroc]

Thanks for answer me!!



I try to subtract the 3dface with the cylinder ... but autocad dont let me because it cant select the 3dface.



here is the code message:



"Command: subtract

Select solids, surfaces, and regions to subtract from ..

Select objects: 1 found

Select objects:

Select solids, surfaces, and regions to subtract ..

Select objects: Specify opposite corner: 1 found

Select objects:

No solids, surfaces, or regions selected.

Command: '_3DFOrbit Press ESC or ENTER to exit, or right-click to display

shortcut-menu.

Command: *Cancel*"





Thx for your help!!:wink:

[stevsmith]

can you upload the .dwg file so i can have a better look at it please.

it can be difficult to tell from images.



I will also need to have a look at it tomorrow. it is my bedtime here in the uk. 22:15pm

I will post back tomorrow my friend.

[el reisubroc]

Sure ... here is it!!



thank you for your time!!

dwg file .el reisubroc.dwg

[stevsmith]

Ive just noticed that you said the objects and non-planar.



You need to covert the shapes around the cylinder using the

convtosurface command. then use the subtract command.

[el reisubroc]

Ive just noticed that you said the objects and non-planar.



You need to covert the shapes around the cylinder using the

convtosurface command. then use the subtract command.





I did it!!! You´re the Man!!

Thanks Steve!!!!

[stevsmith]

Not a problem my good man.



Take it easy.

[Tankman]

Not a problem my good man.



Take it easy.



Steve, we can't all open 2010 *.dwg files.

It's just nice to view files posted. Just my opinion.



For posting, I might suggest saving and posting in earlier formats.

I use '07 (desktop), '05 laptops. Save to 2000 for posts or communicating with clients.

[stevsmith]

Steve, we can't all open 2010 *.dwg files.

It's just nice to view files posted. Just my opinion.



Sorry Tankman. But it wasn't me who uploaded the file. even though i should have said what u suggested.



Again, my appologies.

[Cad64]

Steve, we can't all open 2010 *.dwg files.

It's just nice to view files posted. Just my opinion.



For posting, I might suggest saving and posting in earlier formats.

I use '07 (desktop), '05 laptops. Save to 2000 for posts or communicating with clients.



Or you can convert the file yourself with DWG TrueView.
