Hi guys;



Im working on drawings which basically rely on xref for ease of work in terms of it always being updated; eg road layouts, pipe layouts, Land Topo.

on presentation of development plan drawings there are certain portions that needs to be in greyscale to put emphasis on an xref whose lines are at 100% screening. vice versa for the other xrefs in terms of emphasis for other sheets.



Is there a way to present in greyscale entire xrefs without changing the colors of the layers in the xref itself?

the only solution i do is to make a separate xref drawing of road, pipe layout and structure which is entirely on a single color i setup on 80% screening; so noob :oops: ^_^



there is a way I browsed in the forums but it uses autolisp.

I just wanted to know if autolisp is the only way to make this happen :P



TIA

Share this post


Link to post
Share on other sites
lpseifert

If the color of the entities in the xref are 'bylayer'...

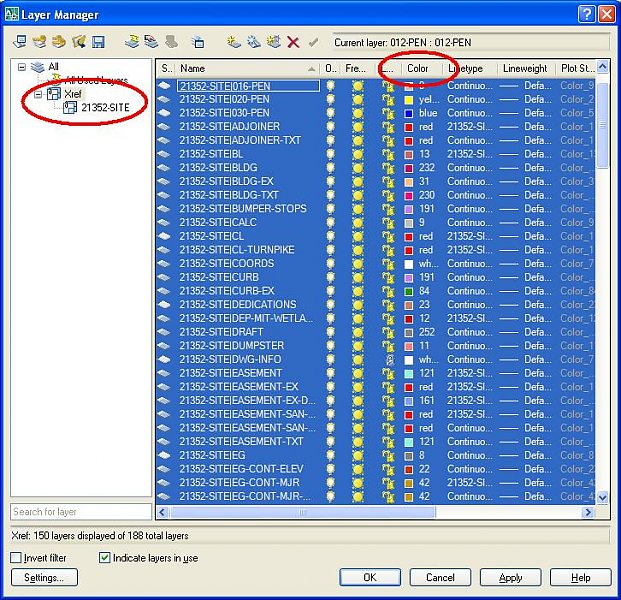

Layer Manager > use the tree to filter the xref layers

Select all the xref layers (Ctlr+A)

Change the color to grey.

If you want the colors to remain grey, set Visretain =1


Share this post


Link to post
Share on other sites
nocturne00

i dont really use STB, im more on the CTB.



Great help seifer; thanks for the help. it saves me a lot of time instead of making new greyscaled xrefs...^_^

I thought of this method once but never tried it thinking that when i reload the xref, all colors will revert to its original :P



but I really thought there was a command for this ^_^



Thanks again

Share this post


Link to post
Share on other sites
lpseifert

This should work in most cases... change the "9" to what color you want

(command "-layer" "c" "9" "*|*" "")

Share this post


Link to post
Share on other sites
asos2000

take a look at that variable



VISRETAIN

this system variable controls the properties of xref-dependent layers



0 ) Dont save the layer properties

1 ) Save the layer properties

Share this post


Link to post
Share on other sites
nocturne00

not exactly what I was lookin for,

I already use visretain, visretain is concerned with saving or not saving any changes made to xref layers.

the previuos post is what im currently using to manipulate greyscaling of the xref.

Share this post


Link to post
Share on other sites
charby5770

I also found that the viewport "properties" affects plot style.



I had views set to 2DWIREFRAME but VP plot style was set to SHADED and it wouldn't plot in gray scale or monochrome until I set it to WIREFRAME.

Share this post


Link to post
Share on other sites
Ski_Me

Dude I know your kinda new but the thread is nearly 10 years old. I think he figured it out by now.

Share this post


Link to post
Share on other sites
charby5770

So you're saying that no one else has had or will have that problem again?



And it's “you're"

Share this post


Link to post
Share on other sites
Dana W

You need a period after the closing quote, even though it is used in an incomplete sentence.



Thread necromancy is universally considered bad form in internet forums. It smacks of someone merely after 'face time'.

Share this post


Link to post
Share on other sites
tombu

A lot of 10 year old issues have been solved or can easily be worked around with constantly evolving software. With the current version of AutoCAD you can "Xref In Greyscale" even if nothing in the Xref is set ByColor.

Threads that haven't been active in over two years should automatically be closed to new postings.

Share this post


Link to post
Share on other sites
halam
..Threads that haven't been active in over two years should automatically be closed to new postings.



No. We are talking Autodesk / AutoCAd developments here.. LOL that is a whole other pace.
