Rib Section Problem

Recommended Posts

Laurel

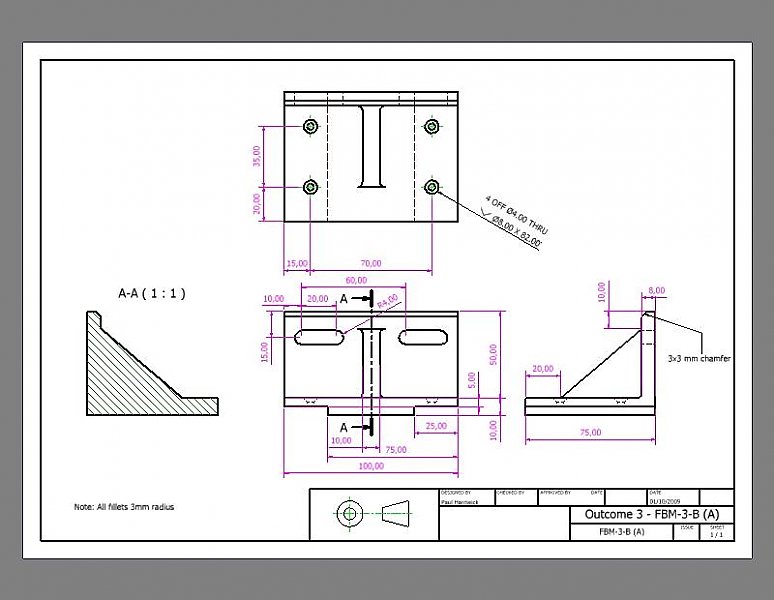

This inventor drawing is one that I have submitted as part of a course I am attending. I have been asked to resubmit it with an amendment - The rib through which the section plane cuts, should not be hatched on the cross-section view.



Could someone please explain how I can achieve this, as I cannot seem to get inventor to produce this view.



Thanks.

Web Section.jpg

Share this post


Link to post
Share on other sites
JD Mather

Are you familiar with the rules for section views with ribs?



Right click on the hatch and hide visibility.

Make sure the boundary of the view is highlighted and hit S on the keyboard.

Project Geometry and select the edges needed to rebuild boundary of rib. Right mouse button Done.

Add the sketch lines for the boundaries of the rib (you will probably want to change the line weight of the sketched boundaries as well).

Fill the bounded area with desired hatch. Exit sketch



If you can't figure it out attach your files here.

Share this post


Link to post
Share on other sites
pgcust

JD.

Could he just move the section line to the side of the rib?



chris

Share this post


Link to post
Share on other sites
JD Mather
JD.

Could he just move the section line to the side of the rib?



chris



I guess that might work as an easy workaround - would require a couple of off-sheet views. The view on sheet should show the section line as he has it though.

Share this post


Link to post
Share on other sites
pgcust

I would have thought the original section is correct,why would he want a section that isnt true?

Share this post


Link to post
Share on other sites
JD Mather
I would have thought the original section is correct,why would he want a section that isnt true?



If you consult any drafting standards book it is standard practice to not show ribs in section even though the cutting plane goes through the rib.



The purpose is for clarity in conveying 3D information in a 2D medium (paper). Try it and you will see it does look much better aesthetically.



This is one of the arguments that those who don't know how to do 3D CAD will present against Inventor and the like - it won't create proper sections (actually SolidWorks will) according to standard practice.



Of course it can be done just takes a bit of user input.

Share this post


Link to post
Share on other sites
pgcust

You learn something new everyday.Has this standard changed with advent of cad programs?

JD,are there any tests around to check on my level of inventor use?

Share this post


Link to post
Share on other sites
JD Mather

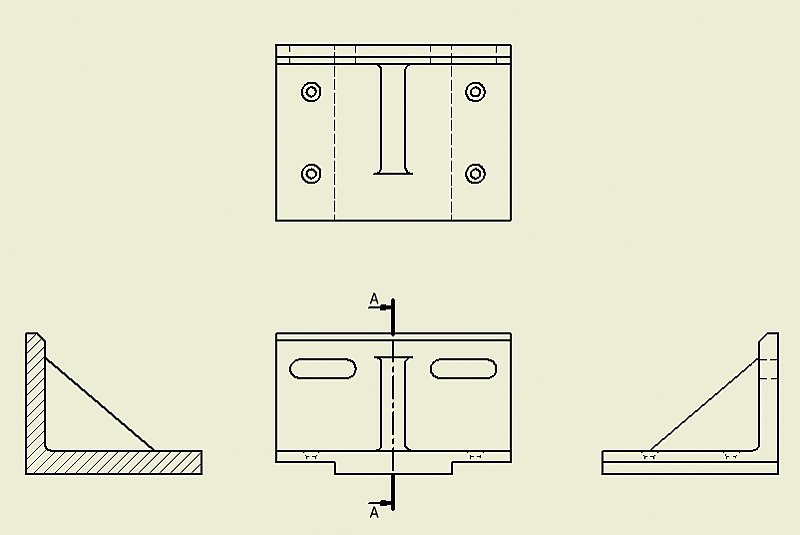

This is the way standard practice normally shows ribs in section.

Rib in Section.jpg

Share this post


Link to post
Share on other sites
Laurel

Thank you everyone for your input (especially JD for showing me how to do this :) ).



It's alway nice when one of your posts starts a debate that might show other people how to do it too.

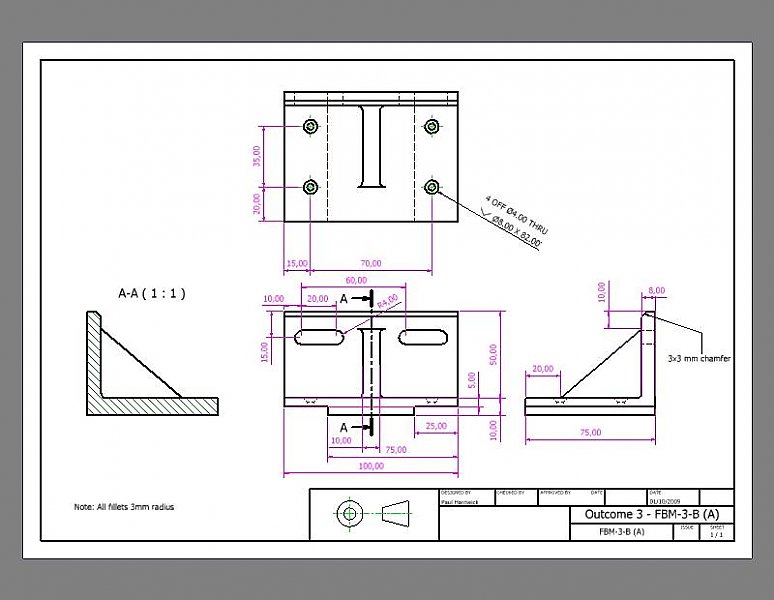

Here's my amended drawing.

Web Section 2.jpg

Share this post


Link to post
Share on other sites
Enfiel3D

Is there any other solution to wipe out portion of the hatch without hiding automatic hatch and recreating boundary for sketch-based hatching?

Share this post


Link to post
Share on other sites
jori

i like this drawing

iam new student

today we took about rib and sectional views

Share this post


Link to post
Share on other sites
