kalaka Posted April 10, 2010 Posted April 10, 2010 I would like to dimension and add text to an ink on mylar elevation. I had it scanned into a *.tif, and one end of the image was distorted. I don't need to manipulate the image, just use it as an accurate reference to position the dimensions. Any advise is appreciated! Quote
kalaka Posted April 10, 2010 Author Posted April 10, 2010 Thanks- I have done that, the problem is with the distortion of the image... Quote
nukecad Posted April 10, 2010 Posted April 10, 2010 Try scanning the image again to get a scan without the distortion? Quote
Tankman Posted April 10, 2010 Posted April 10, 2010 Perhaps scan in two parts, size, and attached the two images together. I just did this the other day, first time, worked fine. Quote
kalaka Posted April 11, 2010 Author Posted April 11, 2010 Thanks for the info- So what I understand from the above posts is that *.tif should work for this, and the problem is with my scan. Quote
Car5858 Posted April 11, 2010 Posted April 11, 2010 Can you scan the document to .png file? Or convert the .tif to a .png? Quote
kalaka Posted April 11, 2010 Author Posted April 11, 2010 Yes, I can. What is the advantage of that? Quote

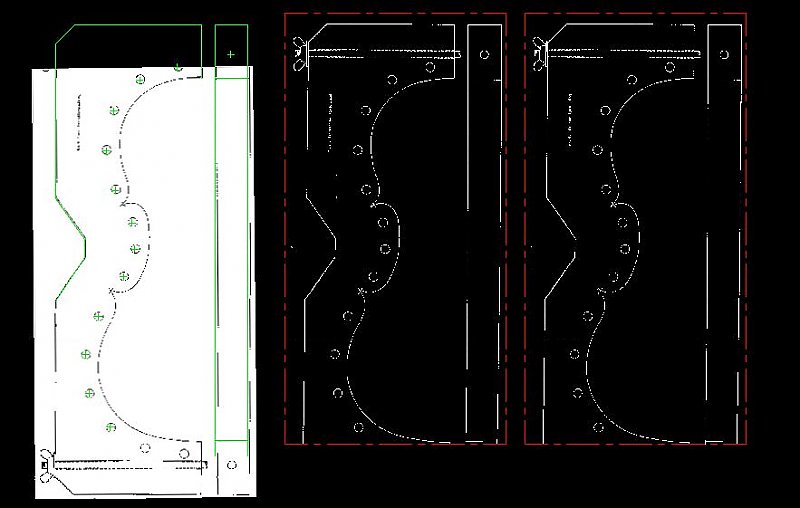

Car5858 Posted April 11, 2010 Posted April 11, 2010 Sometimes the image can be can be altered easily. The image on the right is a jpeg, tif in the center and png on the right. Depending on your back groung color viewing of it image is sometimes better with the png. With the png I can sharpen the image to get fine lines, using a negative function in the photo editing software, will result in the lines represented with one or two pixles in width. These are easy to follow without worry from the distortion the backgroung of the image may produce in other formats. Although this attachment is a jpeg image I hope you can see the difference. When I xref raster images into AutoCad they show up much better than this image. Quote
Coosbaylumber Posted April 12, 2010 Posted April 12, 2010 I often scan in plans a lot larger than 24 by 36. They come in via the TIF format, usually in some sort of 200-250 DPI range. They go on to some converter and in to Autocad eventially. On the scans I get the paper seems to turn a few degrees while passing through the machine. Thus dead straight lines often come out on an arc. The distortion at one end can ony be mitigated via re-scanning the page, but in opposite feed direction. You can play around with Photoshop to aleviate the situation you described but also spend a lot of time there too. When I get to one particular scanned project software, it will come in at dead square in appearances. Tracing or conversion only magnifyies the situation. That X for Y factor is all shot, and the image is only then used for reference. Wm. Quote
