Exploding?

[sportsguy0502]

Hey guys, Im not really a beginner, but not an expert on autocad, but i would like to know how to explode an object, like they have it on this weeks image of the week. I cant do it or find out how to, so any help?

[JD Mather]

Whatever you do don't use Explode.

Use Move.

Modern CAD programs like Autodesk Inventor have tools for creating exploded views.

[sportsguy0502]

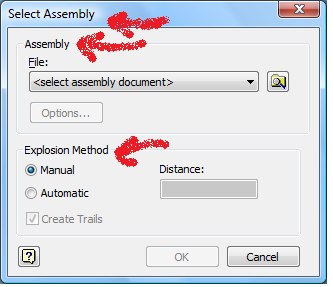

JD, thanks for the reply, but i cant find that dialog box on autocad 2011, im not to sure if they have it on there. So can you tell me where i could find that?

[JD Mather]

...i cant find that dialog box on autocad 2011,.... So can you tell me where i could find that?





Modern CAD programs like Autodesk Inventor have tools for creating exploded views.



Not in AutoCAD.

[ReMark]

Modern CAD programs like Autodesk Inventor have tools for creating exploded views.

Is that clearer?

AutoCAD is just a starter program. It isn't designed to be as powerful as Inventor.

[MikeScott]

Hmm.. I wonder if that's something you could make a lisp for, or if it'd need too much tweaking?



Like, pick a centerpoint, then pick the parts (as blocks only), then assign a "MAX TRAVEL" distance and then the program will base the direction of travel on the angle from the centerpoint to the insertion points of the blocks.
