Lisp, Blocks & Box

[Lt Dan's legs]

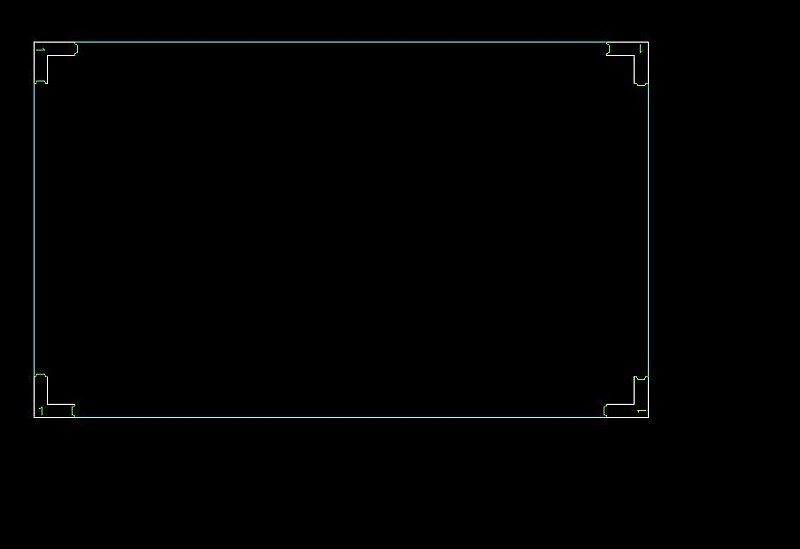

I'm looking for a simple lisp that puts a block (name: corner) in all corners of a rectangle. it needs to turn with the box. the block is at 0º in the upper left hand corner. I know there's something out there like this but I couldn't find it.

[Lt Dan's legs]

I meant to upload a pic

[alanjt]

Sounds like someone needs to learn LISP. :wink:

[Lee Mac]

In the language of pseudocode...



• Prompt for Block Selection [selection/getstring ~ check validity (findfile)]

• Prompt for box Selection (check object validity)

• Get Vertices of Box (dxf group code 10 - multiple entries)

• Sort Points by x then y, or vice versa and insert block with correct rotation at each point. (Alternatively, perhaps get First Derivative of curve near vertex to determine rotation.

[alanjt]

Don't forget to check for direction of polygon.



[Lee Mac]

Haha nice one Alan



You're such a tease lol

[alanjt]

Haha nice one Alan



You're such a tease lol



HaHa, thanks.

I was looking for Gile's Clockwise routine, but then I remembered I could just use the formula to check the area of a triangle (given 3 points), so I just used that.

[Lt Dan's legs]

It goes along with the the code you helped me with the first time. When I create this I want the corners to fill in. I'd like them to come in automatically but if I have to select them than that's fine



(defun c:COMP1 (/ blockname p1 p2 d d1)
 ;; modified by Reid b.
 (vl-load-com)
 (setq blockname "1compartment")
 (if (and (or (tblsearch "block" blockname)
              (findfile (strcat blockname ".dwg"))
              (alert (strcat blockname " cannot be found!"))
          )
          (setq p1 (getpoint "\nSpecify block insertion point: "))
          (setq d (getdist p1 "\nSpecify box width: "))
          (setq d1 (getdist p1 "\nSpecify box length: "))
     )
   ((lambda (block)
      (foreach x (vlax-invoke block 'GetDynamicBlockProperties)
        (cond ((eq (vla-get-propertyname x) "DISTANCE")
               (vla-put-value
                 x
                 (cond
                   ((>= 0.125 (/ d 0.125)) 0.125)
                   ((< 0.125 (setq num (/ d 0.125))) (* 0.125 (fix num)))
                   (0.125)
                 )
               )
              )
              ((eq (vla-get-propertyname x) "DISTANCE1")
               (vla-put-value
                 x
                 (cond
                   ((>= 0.125 (/ d1 0.125)) 0.125)
                   ((< 0.125 (setq num (/ d1 0.125))) (* 0.125 (fix num)))
                   (0.125)
                 )
               )
              )
        )
      )
      (vl-catch-all-apply (function (lambda () (vla-explode block) (vla-delete block))))
    )
     (vla-insertblock
       (if
         (or (eq acmodelspace
                 (vla-get-activespace
                   (cond (*AcadDoc*)
                         ((setq *AcadDoc* (vla-get-activedocument (vlax-get-acad-object))))
                   )
                 )
             )
             (eq :vlax-true (vla-get-mspace *AcadDoc*))
         )
          (vla-get-modelspace *AcadDoc*)
          (vla-get-paperspace *AcadDoc*)
       )
       (vlax-3d-point (trans p1 1 0))
       blockname
       1.
       1.
       1.
       0.
     )
   )
 )
 (princ)
)



http://www.cadtutor.net/forum/showthread.php?t=47619

[alanjt]

It's really nice of you to completely remove my name from my code.

[Lee Mac]

I can't believe that...

[Lt Dan's legs]

It's really nice of you to completely remove my name from my code.



I copied this code from http://www.cadtutor.net/forum/showthread.php?t=47619&page=4



I thought I selected all but I guess I missed it. Look at comment #38



I promise your name is on this code. I've never claimed to know lisp



I did clip out

        (angle (trans p1 1 0) (trans p2 1 0)) ;; modified by Reid b.

[alanjt]

I can't believe that...

:lol:

[Lt Dan's legs]

Could you point me to the right thread?

[alanjt]

What thread?
