Inventor 2011+Deep Exploration

[IronHorse]

I use Deep Exploration 6.1.2 (Cad version) to create .3DS files from

.ITP and .IAM. But when i convert files from Inventor 2010/2011 and use the new "solid" feature. Deep Exporation cut all solids except one!

Any Idé

[JD Mather]

...cut all solids except one!

Any Idé



Here is an idea - attach that one solid here so that others can take a look.

[IronHorse]

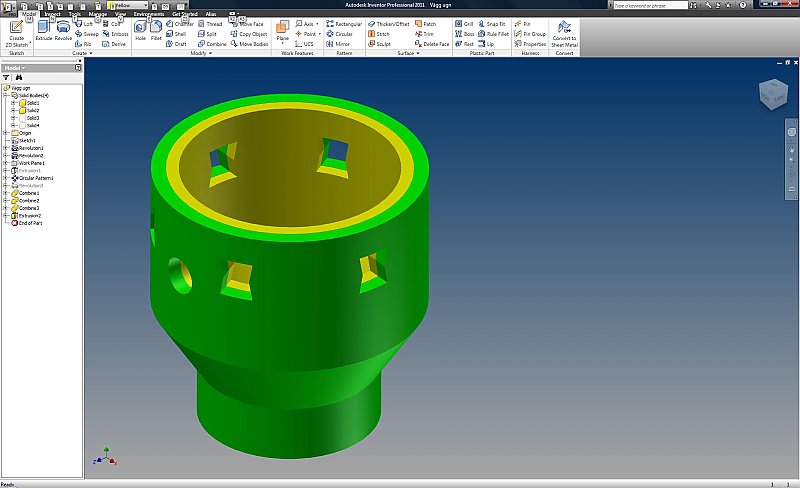

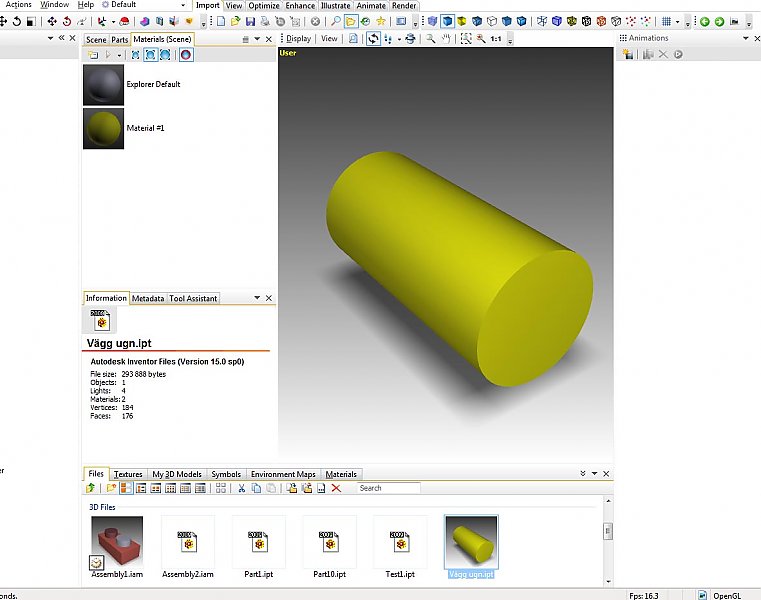

Here is my objects..

I attache my .iam also, I use Inventor 2011

[JD Mather]

Those look like pictures - not solid models. Must zip and attach ipt file(s).

[IronHorse]

I created new example, first one slightly to big for 250kb limit. This one very easy example, two solids and one cut through. When I open with deep exploration It only detects the lower (blue) solid ?? I tried alternative import, but that gives no result at all. However If I make this example as traditionel parts and make assembly It works with Deep exploration. Also If I take this part and save as .iges file It also works?!

Testpart.zip

[JD Mather]

Sounds like that program does not read Inventor multi-body solids correctly. For simple solution go to the Manage tab and select Make Components to push out to individual parts and assembly (or use IGES as you have discovered).
