problem of components size???

[tungho]

Hi everyone,

I am new in ACA Electrical. I am using ACA Electrical 2011 now. I am facing some problems with it. Can anyone help me to fix it out?!

I follow the acad_elec_2010_getstart to practice, after i drew the Hydraulic components finish, i want to go back to change something in the Electrical drawing ( sheet 02). But, all the electrical components were changed the size ( 100 time bigger) and also the feature of them .

I have tried for some different sheets, but can't get back the original size and feature of components.

Can anyone help me!

Thanks!!

[ReMark]

Your symbols were 100 times larger? How is that possible? Did anything else scale up in the drawing besides the symbols?



Electrical schematics should be drawn at a 1:1 scale.

[tungho]

the scale is 1:1.

After i created a new project to try some components, some SW/ components are work well, some are changed?! Could it be the software problem?! Because the technician who installed for me used trial version to key in the product key.

[ReMark]

I used the trial version for the full 30 days before switching it over to fully licensed and did not encounter any such problem.



Think about where you may have made a global change of some sort.



Are we talking just one drawing or more than one where the problem happens?

[Dawn_Lilly]

There is one thing you can check;

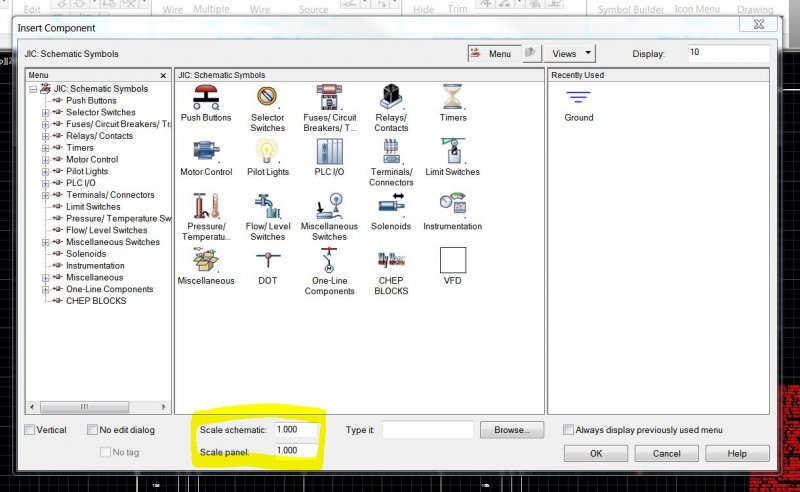

The insert component dialog box. Make sure your scaling is set to 1

See Below;





I hope this helps...
