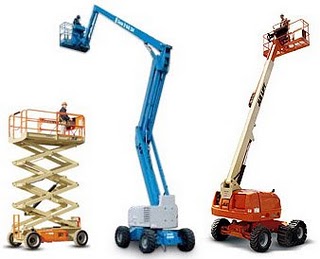

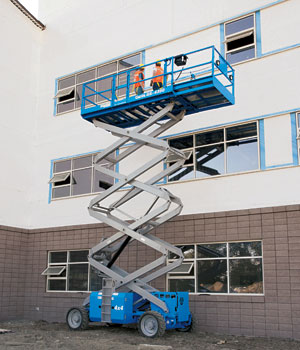

skipsophrenic Posted July 1, 2010 Posted July 1, 2010 Hi all, Got a quick problem, Has anyone got a generic detail of an elevated platform for people working underneath a bridge? Sorry to bother you all with this. I've posted pics below of the type(s) i'm on about. Quote
skipsophrenic Posted July 5, 2010 Author Posted July 5, 2010 thread bumpety bump bump Sorry about this, Just an update, I've googled and used all the sites I know and still had no joy. Quote
skipsophrenic Posted July 5, 2010 Author Posted July 5, 2010 I have tried to do this but the best I have been able to do is trace around a generic profile, If I had all the right dimensions this would not be a problem, but as it is, all i have is an outline which is not very accurate. Quote
daft vader Posted July 6, 2010 Posted July 6, 2010 If you go to here http://www.nationwideplatforms.co.uk/pdfs/gs15.pdf the side elevations are to scale if its any help. most of the hire sites have the same drawings Quote
Geordie Posted July 6, 2010 Posted July 6, 2010 These are just from a PDF but they are to scale and might help Ewp1.dwg Ewp2.dwg Boom1.dwg Quote
Tankman Posted July 7, 2010 Posted July 7, 2010 thread bumpety bump bump Sorry about this, Just an update, I've googled and used all the sites I know and still had no joy. 'Bout time you skipped into the forums! All missed ya! I think I might find a generic drawing for ya. Later gater! Welcome home! :wink: Check your email. Sent you a simple drawing. Quote
