Adding additional text to Dimension Text Override

[Lt Dan's legs]

hope you don't mind lee. Look at lee's code and replace the 13th line of lee's code with

                    (subst (cons 1 (strcat s " [" (rtos n 2 3) "]\n" (rtos n 3))) (assoc 1 (entget e))

\n = new line



look at (rtos n 2 3)

the n after rtos is your measurement which was defined in the 7th line of lee's code see (setq n (distof s)))

see below for the number after the n and the last number is how many decimal places you want

1Scientific2Decimal3Engineering4Architectural5Fractional

[RoguePiper]

Actually got it using the \X, just needed the double \\ in the string.

[Kerry Brown]

Personally, in that case, I'd use a dimension Style with the Alternate Units set.

... even if it meant having to change styles programmatically you'd be in front because the dimension would retain it's associativity.



An alternative would be to apply dim over-rides to the specific dimensions you wanted to display with the Alternate Dimensions .. again retaining associativity.



Another alternative to programming a solution is to dim-override modify one dimension manually ( you'd need linear and aligned) then simply use MatchProperties to apply the settings to other dimensions

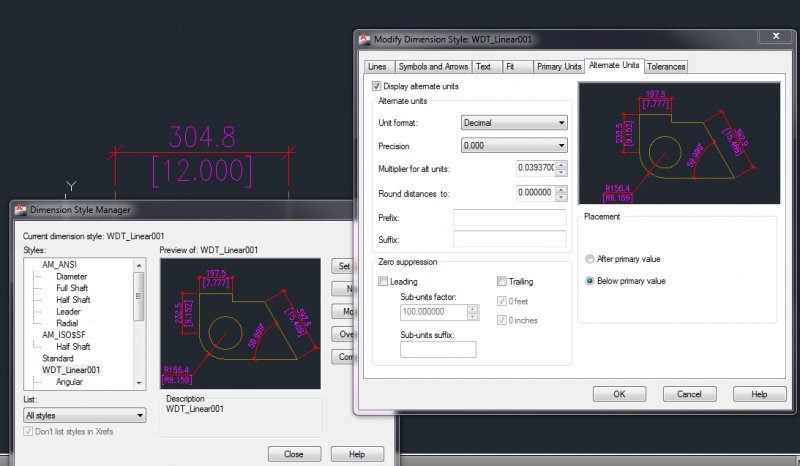

a piccy:

[RoguePiper]

The alternate units won't work in this case. The drawing is not to scale and all dimensions are put in with text overrides. I have been able to achieve the results I want with the base that Lee started me on.

[RoguePiper]

Done. Works like I want it to.



(defun c:ImpDim ( / ss )
 ;; © Lee Mac 2010

 (if (setq ss (ssget "_:L" '((0 . "DIMENSION"))))
   (
     (lambda ( i / e s n )
       (while (setq e (ssname ss (setq i (1+ i))))
         (if (and (setq s (cdr (assoc 1 (entget e)))) (setq n (/ (distof s) 25.4)))
           (entupd
             (cdr
               (assoc -1
                 (entmod
           (subst (cons 1 (strcat s "\\X[" (rtos n 2 3) "\"]")) (assoc 1 (entget e))
                     (entget e)
                   )
                 )
               )
             )
           )
         )
       )
     )
     -1
   )
 )

 (princ)
)

[Lee Mac]

Glad you got it working in the end mate - was working all day so couldn't get back to you sooner. The only thing I would ask is to mark where you modified with your initials or other - this is standard coding practice.
