Getting points locations at devided distance

[Michaels]

Suppose that I have a room and I want to divide it into specific points.

My codes are running well up to the crossing points. I mean How can I support

the X and Y for the divided points at X and Y as well ?



(defun c:cen (/ pt1 pt3 pt2 pt4 XLen YLen Xnum Ynum)
 (setq pt1 (getpoint"\n Specify The Left corner: ")
pt3 (getcorner pt1 "\n Specify the Right corner: ")
)
 ;; ******** the rest of rectangl points ****************
 (setq pt2 (list (car pt3)(cadr pt1))
pt4 (list (car pt1)(cadr pt3))
)
 ;; ****** Lengths of X and Y **************
 (setq XLen (distance pt1 pt2)
YLen (distance pt1 pt4)
)
 ;; ****** divide the X and Y **************
 (setq Xnum (getint "\n Specify Number of X elements: ");; for instance 5
Ynum (getint "\n Specify Number of Y elements: ");; for instance 4
)


[JohnM]

Could you explain in more detail?

Do you just want to collect the point of the intersections of the x’s and y’s?

Use the polar function and the repeat function

[BIGAL]

Can not see any problem you just need a loop within a loop



(repeat Xnum

(repeat ynum

( do your thing here)

)

(setq xnum (+ xnum Xlen))

)

Edited August 12, 2010 by BIGAL
typo

[Michaels]

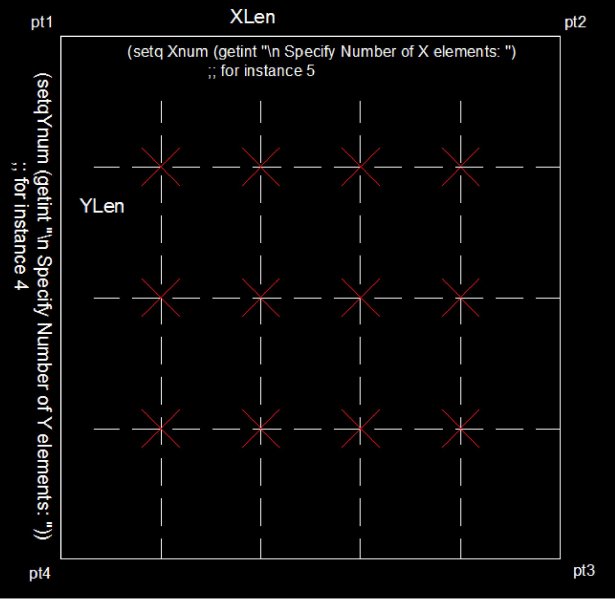

The crosses in RED are what I would like to get. Although these points

are would be changed according to user input.



Many thanks



Michaels

[fixo]

I wrote this lisp for enforcements some moons ago

Looks like this is exactly what you looking for

Change to suit



~'J'~

grid_cross.LSP

[Michaels]

I wrote this lisp for enforcements some moons ago

Looks like this is exactly what you looking for

Change to suit~'J'~



Thanks fixo,



I have two questions about your codes ,

- Why did you use the following since you didn't use it later in the routine ?

- And what does it mean?

pc (mapcar (function (lambda (x y)(* (+ x y) 0.5)))





It is really works fine, But I am looking forward to learing how codes are running and should be built with according to user inputs.



Any suggestion from any one would be highly appreciated.



Regards

[fixo]

Sorry,

I can't to expalin the things good because of my english level

and by this reason I'm afraid to mix something

Feel free to change the code to your suit



~'J'~

[Michaels]

Sorry,

I can't to expalin the things good because of my english level

and by this reason I'm afraid to mix something

Feel free to change the code to your suit

~'J'~



Thank you so much for your reply.



I do understand.



Best Regards,

[Michaels]

Hello,



I still worndering how to get the intersection points in the pose.



Any idea ?



Best regards,

[JohnM]

what are you not understanding?

do you know how to use the polar and repeat functions?

[Michaels]

what are you not understanding?

do you know how to use the polar and repeat functions?



Yes I do.



But my question was about the intesection of the lines that would be made by repeat function.



Regards,

[JohnM]

do you need to show the lines?

or do you just want the coordinates of the intersections?



if you could explain in great detail maybe i could help

[Michaels]

do you need to show the lines?

or do you just want the coordinates of the intersections?

if you could explain in great detail maybe i could help



Thanks for your concerns,



I would like to get the coordinates of the intersections to insert a specific block at the end of routine.



Thanking you.

[Tharwat]

It's a very interesting thread for unknown limits of points to be created.



Regards,

[Michaels]

It's a very interesting thread for unknown limits of points to be created.

Regards,



Thanks,



But I wonder why nobody could solve or give an answer to my thread !! !! !!



Hope this won't be that complicated .



Regards,

[JohnM]

When I asked if you knew the polar and repeat function you replied yes, so I thought you had it figured out.

First of all are the elements the lines or the spaces between the lines?

[Lee Mac]

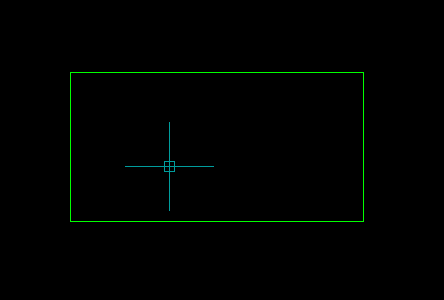

With a touch of ObjectArx from Alexander Rivilis:







;; An example of Dynamic Grid creation using a grRead substitute,
;; Program by Lee Mac, using DynDraw by Alexander Rivilis
;; (http://www.maestrogroup.com.ua/support/dyndraw.zip)

(defun c:DynGrid ( / *error* line vers step bit v m n p1 p2 p3 p4 i j pi/2 prev )
 ;; © Lee Mac 2010

 (defun *error* ( msg )
   (or (wcmatch (strcase msg) "*BREAK,*CANCEL*,*EXIT*")
       (princ (strcat "\n** Error: " msg " **")))
   (redraw) (princ)
 )

 (defun line ( s e )
   (entmakex
     (list
       (cons 0 "LINE")
       (cons 10 s)
       (cons 11 e)
     )
   )
 )

 (setq vers
   '((18.0 . "2010")
     (17.2 . "2009")
     (17.1 . "2008")
     (17.0 . "2007")
     (16.2 . "2006")
     (16.1 . "2005")
     (16.0 . "2004")
     (15.6 . "2002"))
 )

 (setq step 1e-6
       bit (if (eq "X86"
                 (strcase
                   (getenv "PROCESSOR_ARCHITECTURE")
                 )
               )
             "x32" "x64"
            )
 )

 (cond
   (
     (not
       (setq v
         (cdr
           (assoc
             (atof
               (getvar 'ACADVER)
             )
             vers
           )
         )
       )
     )
    (princ "\n** Not Compatible in this Version **")
   )
   (
     (not
       (and
         (not (initget 6))
         (setq m
           (getint "\nSpecify Number of Rows: ")
         )
         (not (initget 6))
         (setq n
           (getint "\nSpecify Number of Columns: ")
         )
         (setq p1
           (getpoint "\nPick First Corner Point: ")
         )
       )
     )
     (princ "\n*Cancel*")
   )
   (
     (and
       (null dyndraw)
       (not
         (arxload
           (strcat "DynDraw" v
             (if (eq "2010" v) bit "") ".arx"
           )
         )
       )
     )
    (princ "\n** Arx File not Found **")
   )
   (
     (vl-acad-defun 'UpdateGridCallBack)

     (setq p2
       (dyndraw "UpdateGridCallBack"
         "\nPick Second Point [Columns/Rows] : "
         "Columns Rows"
         (+ 1 2 128 2048)
         -1
         nil
       )
     )

     (redraw)

     (if (vl-consp p2)
       (progn
         (setq i    (/ (- (cadr p2) (cadr p1)) m)
               j    (/ (- (car  p2) (car  p1)) n)
               pi/2 (/ pi 2.)
               p3   (cons (car p2) (cdr p1))
               p4   (cons (car p1) (cdr p2))
         )
         (
           (lambda ( k )
             (repeat (1- n)
               (apply (function line)
                 (mapcar
                   (function
                     (lambda ( point ) (trans point 1 0))
                   )
                   (list (polar p1 0 (* (setq k (1+ k)) j))
                         (polar p4 0 (* k j))
                   )
                 )
               )
             )
           )
           0
         )
         (
           (lambda ( k )
             (repeat (1- m)
               (apply (function line)
                 (mapcar
                   (function
                     (lambda ( point ) (trans point 1 0))
                   )
                   (list (polar p1 pi/2 (* (setq k (1+ k)) i))
                         (polar p3 pi/2 (* k i))
                   )
                 )
               )
             )
           )
           0
         )
       )
     )
   )
 )
 (princ)
)

(defun UpdateGridCallBack ( argument )

 (cond
   (
     (eq 'STR (type argument))

     (cond
       (
         (eq "Columns" argument)

         (initget 6)
         (setq n
           (cond
             ( (getint (strcat "\nSpecify Number of Columns <" (itoa n) "> : ")) )
             ( n )
           )
         )
       )
       (
         (eq "Rows" argument)

         (initget 6)
         (setq m
           (cond
             ( (getint (strcat "\nSpecify Number of Rows <" (itoa m) "> : ")) )
             ( m )
           )
         )
       )
       (
         (princ "\n** Invalid Keyword **")
       )
    )

    (setq argument t)
   )
   (
     (vl-consp argument)

     (or prev (setq prev argument))

     (if (< step (distance prev argument))
       (progn
         (setq prev argument p2 argument)

         (setq i    (/ (- (cadr p2) (cadr p1)) m)
               j    (/ (- (car  p2) (car  p1)) n)
               pi/2 (/ pi 2.)
               p3   (cons (car p2) (cdr p1))
               p4   (cons (car p1) (cdr p2)))

         (redraw)
         (grvecs (cons 256 (list p1 p3 p3 p2 p1 p4 p4 p2)))

         (
           (lambda ( k )
             (repeat (1- n)
               (grvecs
                 (cons 256
                   (list (polar p1 0 (* (setq k (1+ k)) j))
                         (polar p4 0 (* k j))
                   )
                 )
               )
             )
           )
           0
         )
         (
           (lambda ( k )
             (repeat (1- m)
               (grvecs
                 (cons 256
                   (list (polar p1 pi/2 (* (setq k (1+ k)) i))
                         (polar p3 pi/2 (* k i))
                   )
                 )
               )
             )
           )
           0
         )
       )
     )
   )
 )
 argument
)



You will need this Arx file in your support path (make sure you pick the right version/bit width):



http://www.maestrogroup.com.ua/support/dyndraw.zip

[wrmurphy81]

Have you tried using DIVIDE or MEASURE at the command line? DIVIDE will divide a line or arc into equal parts and MEASURE will place a point at any given distance that you specify.
