Lisp to find partially overlaping dimension

[Guest kruuger]

Hello

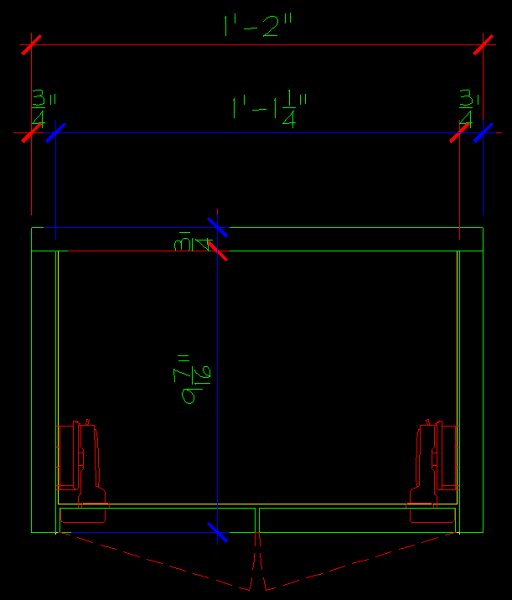

Is there any lisp routine to find overlapping dimension (like on picture below)

It's hard to see dim's like this. It happen very often when we use DIMCONTINUE.

And it cause big problem in manufacturing process.



Someone can help:(

Thank you



Kruuger

[Michaels]

Try the command

overkill



That might help you a lot.

[Guest kruuger]

Hi Michaels

I know overkill but this is not exactly what i want.

OV delete dims. We need to play with fuzz distance.

I'm not so good in lisp to fix OV to work for me



thanks

kruuger

[Tharwat]

You can use this code to select all dimensions according to their style name ,

(sssetfirst nil(ssget "_X" '((0 . "DIMENSION")(3 . "[color="red"][b]YourStyleName[/b][/color]"))))



Tharwat

[Guest kruuger]

You can use this code to select all dimensions according to their style name ,

(sssetfirst nil(ssget "_X" '((0 . "DIMENSION")(3 . "[color=red][b]YourStyleName[/b][/color]"))))

Tharwat

my all dims are with the same style.

what i want achive is too find these overlap dims (maybe flag them) and of course correct these mistakes.

kruuger

[Lee Mac]

You could check for intersections between the dimensions, however this method will only use the boundingbox of the dimensions and so will not be 100% accurate.



To demonstrate my point, try this code on two overlapping dimensions:



(defun c:test ( / e1 e2 )
 (vl-load-com)

 (if
   (and
     (setq e1
       (LM:SelectifFoo
         (lambda ( x )
           (eq "DIMENSION" (cdr (assoc 0 (entget x))))
         )
         "\nSelect First Dimension: "
       )
     )
     (setq e2
       (LM:SelectifFoo
         (lambda ( x )
           (eq "DIMENSION" (cdr (assoc 0 (entget x))))
         )
         "\nSelect Second Dimension: "
       )
     )
   )
   (foreach x
     (LM:GroupbyNum
       (vlax-invoke
         (vlax-ename->vla-object e1) 'IntersectWith
         (vlax-ename->vla-object e2) AcExtendNone
       )
       3
     )
     (command "_.point" "_non" x)
   )
 )

 (princ)
)

;;-------------------=={ Select if Foo }==--------------------;;
;;                                                            ;;
;;  Continuous selection prompts until the predicate function ;;
;;  foo is validated                                          ;;
;;------------------------------------------------------------;;
;;  Author: Lee McDonnell, 2010                               ;;
;;                                                            ;;
;;  Copyright © 2010 by Lee McDonnell, All Rights Reserved.   ;;
;;  Contact: Lee Mac @ TheSwamp.org, CADTutor.net             ;;
;;------------------------------------------------------------;;
;;  Arguments:                                                ;;
;;  foo - predicate function taking ename argument            ;;
;;  str - prompt string                                       ;;
;;------------------------------------------------------------;;
;;  Returns:  selected entity ename if successful, else nil   ;;
;;------------------------------------------------------------;;

(defun LM:SelectifFoo ( foo str / e )
 ;; © Lee Mac 2010
 (while
   (progn
     (setq e (car (entsel str)))

     (cond
       (
         (eq 'ENAME (type e))

         (if (not (foo e)) (princ "\n** Invalid Object Selected **"))
       )
     )
   )
 )
 e
)

;;-----------------=={ Group by Number }==--------------------;;
;;                                                            ;;
;;  Groups a list into a list of lists, each of length 'n'    ;;
;;------------------------------------------------------------;;
;;  Author: Lee McDonnell, 2010                               ;;
;;                                                            ;;
;;  Copyright © 2010 by Lee McDonnell, All Rights Reserved.   ;;
;;  Contact: Lee Mac @ TheSwamp.org, CADTutor.net             ;;
;;------------------------------------------------------------;;
;;  Arguments:                                                ;;
;;  l - List to process                                       ;;
;;  n - Number of elements by which to group                  ;;
;;------------------------------------------------------------;;
;;  Returns:  List of lists, each of length 'n'               ;;
;;------------------------------------------------------------;;

(defun LM:GroupByNum ( l n / a b )
 ;; © Lee Mac 2010
 (while l
   (
     (lambda ( i )
       (while (< 0 i)
         (setq a (cons (car l) a) l (cdr l) i (1- i))
       )
       (setq b (cons (reverse a) b) a nil)
     )
     n
   )
 )
 (reverse b)
)

[David Bethel]

That one is pretty much bad drafting habits. Continuations should be just that. A continuation in the same direction of the previous dim. Not overlays. -David

[Guest kruuger]

Thanks Lee for the code.

Probably now this needs to be combined with checking of DXF code for dim's to see if the dimensions are continued, maybe one dim include another etc.



Is it possible to make reactor for DIMCONTINUE command?

After command we move cursor to the left or right side of dimension and new dimension flip to correct side.



kruuger

[Lee Mac]

I'm afraid the IntersectWith method is as far as I'm willing to pursue this.

[Guest kruuger]

old thread but finally wrote something. not beauty but it is working

thanks to Lee for (LM:RotatePointsByMatrix)

kruuger

FindOverlappedDimensions.lsp
