Introduction - and guitar modelling questions

[SBJ]

Hi all



I've used this forum in the past to find out various answers to questions that I've had and always great success - so many thanks for that.



I am reasonably confident in the 2d world but with the acquisition of a CNC router I'm keen to exploit the 3d world!



I'm kind of doing this in my spare time because I want to build a guitar. I can model it in 2D, extrude it and make a simple 3D shape but that's where I get stuck.

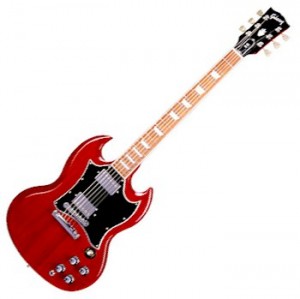

I dont know how to do the variable fillets(?) like in this picture





Is there an easy way to do this?



rgds



Stuart

Edited September 20, 2010 by SBJ
Edited to change hosting of picture.

[Cad64]

Please read the rules regarding your membership: http://www.cadtutor.net/forum/showthread.php?9177-Why-should-I-register



You are not allowed to post links to file hosting sites until you have 10 posts, which is why the forum software moderated your thread and removed it from view. I have approved your thread and moved it to the 3D Modeling section.



If you want to attach images, please upload them here in the forum. You can't do this from the "Quick Reply". You have to click the "Go Advanced" button. Then scroll down and click the "Manage Attachments" button.

[hoss]

If you draw the body and neck in 2D and extrude each part individually, it should be an easy task to fillet them separately with different radius, if this is what you meant by "variable fillets"

[SBJ]

Thanks for the reply, Hoss. I dont think that I explained myself very clearly. I was talking about the setcion on either side of the guitar boby which is filleted. The fillet tapers from the centre of the guitar to each end. I guess that you could make the original shape oversize, fillet it then do a boolean subtraction to remove the excess. However, that doesn't seeem like an elegant solution and I'm wondering if there's an alternative way of doing it?

[JD Mather]

The fillet tapers...

Autodesk Inventor has a variable radius fillet tool.
