text walk along curve

[blueshake]

hi,all

I search the forum,and lee has wrote a lot of routine for this.

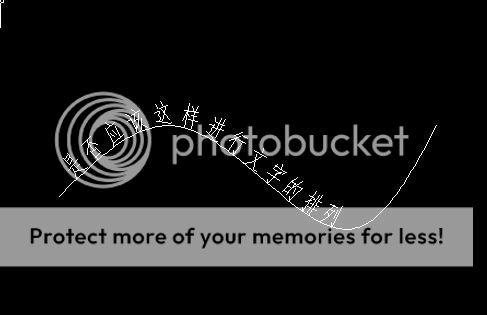

but I found that it seems it don't play this trick.see the picture.

is there any lisp can play this magic?thanks.

[Tiger]

I can't see the picture at all, just get a big red X. Can you upload the image directly here instead? Or describe the issue?

[blueshake]

sorry,update the picture host now.

[Tiger]

So...what is it about your request that Lee's program can't do?

[Tharwat]

Use arctext command from Express menu .



arctext



Tharwat

[Lee Mac]

You can't with a single text item (without using the ArcAligned Text Custom Object from Express Tools), but I did experiment with the idea of using multiple items here:



http://lee-mac.com/slinkytext.html

[blueshake]

So...what is it about your request that Lee's program can't do?

in this site http://lee-mac.com/slinkytext.html ,it work now.

[blueshake]

Use arctext command from Express menu .



arctext



Tharwat



arctext only work for arc,not any curve.

[blueshake]

You can't with a single text item (without using the ArcAligned Text Custom Object from Express Tools), but I did experiment with the idea of using multiple items here:



http://lee-mac.com/slinkytext.html

that is what I want ,thank you.

[Lee Mac]

that is what I want ,thank you.



Happy I could be of assistance BlueShake.

[m4rdy]



http://lee-mac.com/slinkytext.html



Wow, finally.........

[Lee Mac]

Wow, finally.........



Well - thanks for your comment, but it's less than ideal with individual text items - however, save creating a custom object in Arx, it was the best I could come up with...

[blueshake]

hi,lee

I test your codes.it is amazing.

here comes my remark.

can we arrange the string in average?

e.g. I have a sting "ABCD" and I choose the curve (circle).then I may want to place them in average.see the picture.the same to any curve.

anyway.that is just my thought.

[Lee Mac]

hi,lee

I test your codes.it is amazing.



Thanks!



here comes my remark.

can we arrange the string in average?

e.g. I have a sting "ABCD" and I choose the curve (circle).then I may want to place them in average.see the picture.the same to any curve.

anyway.that is just my thought.



By 'average', do you mean equispaced along the curve? If so, one could retrieve the length of the curve, divide by the number of characters in the string to get the spacing, calculate the points for each character and the first derivative of the curve at such points, then position accordingly.



Lee

[blueshake]

Thanks!







By 'average', do you mean equispaced along the curve? If so, one could retrieve the length of the curve, divide by the number of characters in the string to get the spacing, calculate the points for each character and the first derivative of the curve at such points, then position accordingly.



Lee

yes.

Lee,can you change your codes to do this if you are free?I don't have the ability to do this.:)thank you.

[blueshake]

hi,Lee ,dig into your codes a little.



here comes my confuse.

1.according to documents,we can use "strlen" function to get the length of a string.

but if the sting contain wide char ,how can we can get the char numbers of a string.

e.g. if the string is "abc" , the "strlen" return 3.so we can know that string "abc" has three chars.

but if the string is "汉字", the "strlen" also return 4.but actually it only has two chars.

do we have other way to get the char numbers of a string?



2.how can I get the length of a curve??



thank you for time.

[Lee Mac]

1.according to documents,we can use "strlen" function to get the length of a string.

but if the sting contain wide char ,how can we can get the char numbers of a string.

e.g. if the string is "abc" , the "strlen" return 3.so we can know that string "abc" has three chars.

but if the string is "汉字", the "strlen" also return 4.but actually it only has two chars.

do we have other way to get the char numbers of a string?



How about something like:



(length (vl-string->list [i]<string>[/i]))



2.how can I get the length of a curve??



(vlax-curve-getDistatPoint entity (vlax-curve-getEndPoint entity))

[blueshake]

@Lee.

it seems not work.still return 4.

to achieve the function I mentioned above.I think we simple do the following steps.

1.select the curve and the string.

2.break up string a single char sets and stored them.

3.according to the counts of the char sets, resolve the equispaced points along the curve.

4.place the char in the relative point with a rotated point tangential angle.



question:

1.how to break up the string.

2.how to get the equispaced points.

3.how to get the points' tangential angle in the curve.

it seems complicated to me.

[Lee Mac]

1)

(mapcar 'chr (vl-string->list <string>))



2) Get length of curve using:



(vlax-curve-getDistatPoint entity (vlax-curve-getEndPoint entity))



Divide it by the number of characters to get spacing, then use vlax-curve-getPointatDist with the spacing as an increment.



3)

(angle '(0. 0. 0.) (vlax-curve-getFirstDeriv entity (vlax-curve-getParamatPoint entity point)))

[alanjt]

Don't forget to account for direction of curve.
