2D Projecto into 3D Surface.

Hyginks

By Hyginks
in AutoCAD 3D Modelling & Rendering

 Share

Recommended Posts

Hyginks Rookie

Hyginks

Posted
Posted

Does anyone know if Autocad 2009 is able to project a 2D rectancle onto the surface of a sphere, and if so, how?



Thanks

ReMark Grand Master

ReMark

Posted
Posted

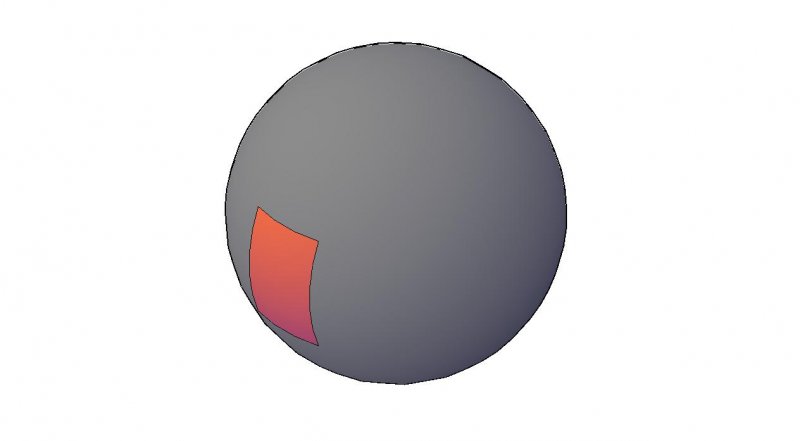

Yes I believe it could be done by extruding four separate lines then using the Imprint command. Example:
