adding corners in sheet metal environment

[rdharvey]

i have produced a sheet metal clamp but for some reason it won't let me add corners?? also once i have done this how do i produce the flat pattern?? Also the attatch file box keeps saying its an invalid file!? any ideas why??

[Be_cool]

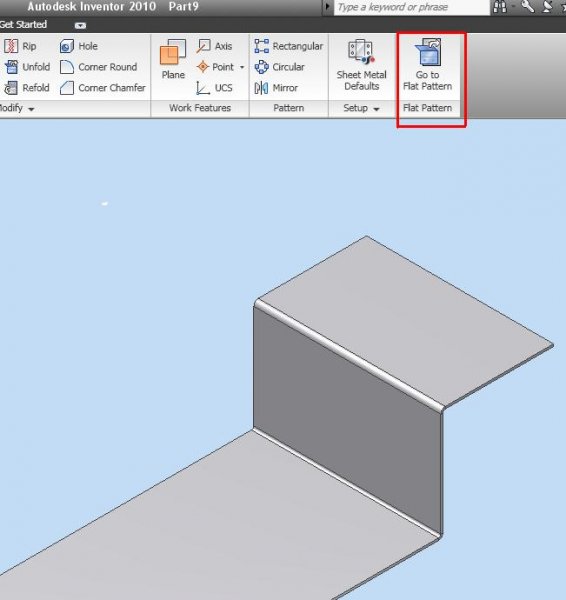

Just click icon to go in flat pattern mode...

Can you attach image of the clamp?



[JD Mather]

...the attatch file box keeps saying its an invalid file!? any ideas why??



Did you roll up the EOP?

Did you zip the file?

[rdharvey]



The flat pattern button isnt there for some reason :/

[rdharvey]

Did you roll up the EOP?

Did you zip the file?



I tried both jd.

[rdharvey]

BIRDUCLAMP-SM.zip Ah it was sending it to .rar not zip and the up loader wouldn't load the file.

[Be_cool]

Right click and...



[rdharvey]

ok so i have selected the flat pattern. but the part doesnt go flat. do i have to change any parameters of the model or anything? not used the sheet metal much :/

[Be_cool]

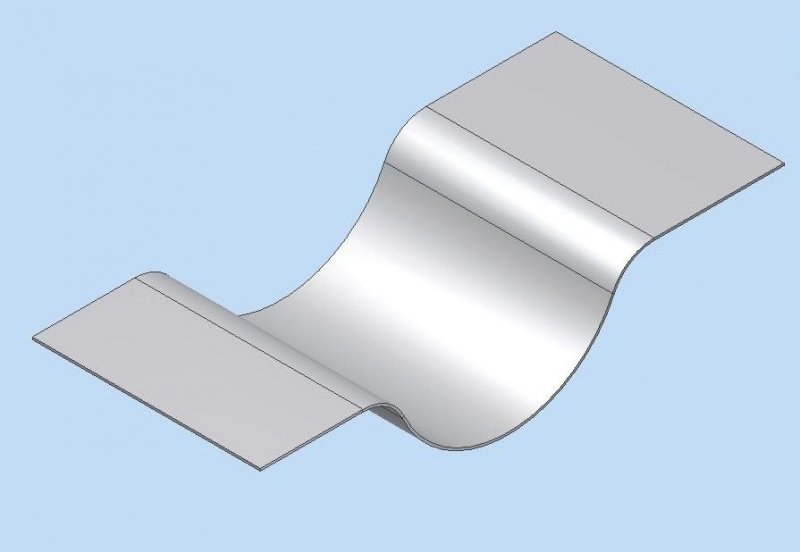

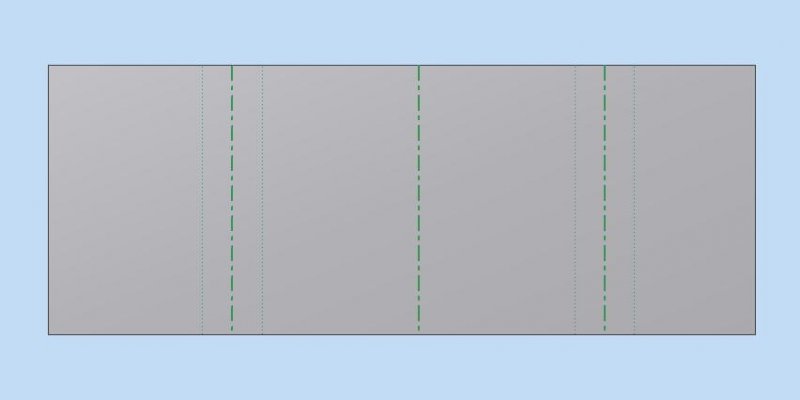

Just draw contour of your clamp and use contour flange tool...deffine thickness before, and that's it.





Regards

Aleksandar

[rdharvey]

awesome! it works thanks dude!

[Be_cool]

We are here to help each other



Regards

Aleksandar

[Hopinc]

Hi Guys,



The reason Rob could not unfold his parts is that he had not set his "Sheet Metal Defaults" to match his chosen material thickness. Inventor could not therefore work out a viable solution.



For anyone else having a similar problem make sure that these parameters match. If you are not using the system default material thickness setting, simply untick it and put the material thickness in the adjacent box.



Regards all,



Dave
