Flat pattern when bend part is being used

[LaLLe]

I´m working on a school project in which I've used a square pipe from content center and given it a radius with bend part.

The problem arises when i try to make the idw drawing. Inventor wont give me the "flat pattern". I know i can calculate the true unfolded length of the pipe but it would be so much easier if inventor could straighten it in inventor.

Another alternative would be a way to dimension an arc length.

Hope you can help, none of my teachers can

[JD Mather]

Zip and attach the file here.

[LaLLe]

Which file. The idw or the ipt

[LaLLe]

Here is the ipt.

60 x 60 x 2 - 3866 mm bue.zip

[kencaz]

I would not bother trying to flatten that unless you had holes or slots to cut. It's just a matter of the arc length...

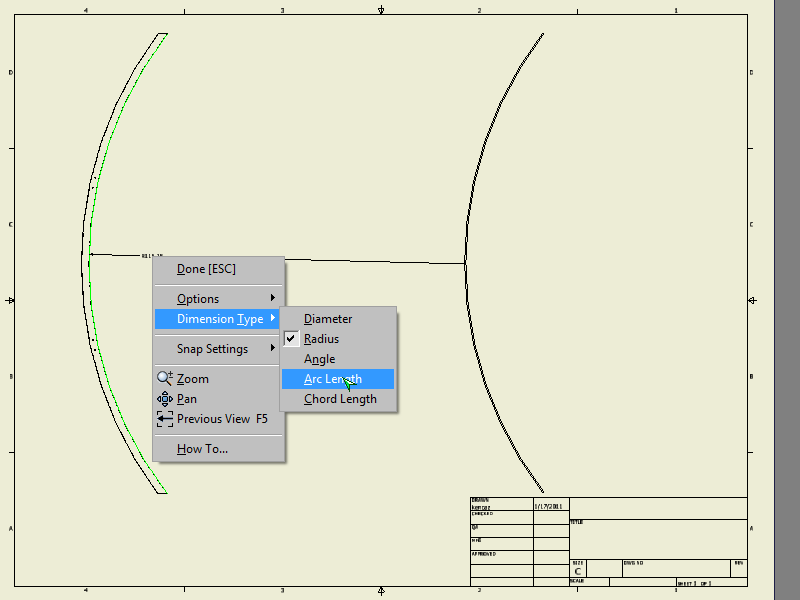

Select the line in your idw, right click select dim type "arc length"





KC

[LaLLe]

Thanks for the help but as you see there are holes in the pipe.
