erasing inside a box...help

Recommended Posts

ejmmfc

Hello all



My first post, so apologies if not in the right place.



I am a novice user and on searching the forums I cannot find a thread which answers this questions in a language I can understand. I should add I just dont get other code orientated answers to similar posts.



I am working on a town plan and need to delete a number of lines within a box. This is so frustrating as using a rectangle everytime does not allow for easy erasing. I've already wasted hours trygint o find a solution. If only it had some kind of cut command for inside a polyline??...like photoshop...:x



I have seen the threads discussing extrim but this only trims...no good!



All comments and help would be really appreciated one very frustrated cad user!



Thank you and Kind Regards



Ejam

Share this post


Link to post
Share on other sites
Jack_O'neill

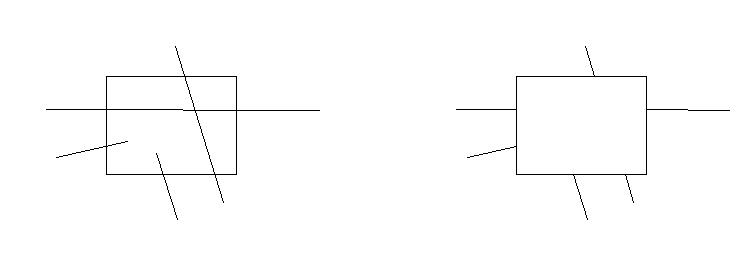

Is something like this what you are trying to do? If so, try the "trim" command.




After re-reading your post, I realize now that you said trimming wasn't enough. I don't know of a way to simply erase inside a box without using the "erase" command. One of the lisp gurus might be able to write a custom autolisp routine for you that would combine both commands, but sadly, that's not me. If one of them doesn't come up with something here, try reposting your question in the autolisp forum.

Share this post


Link to post
Share on other sites
ejmmfc

Thank you Jack, alas Im afraid trimming doesnt help matters as there are many shapes (houses and roads) on my plan within the square which do not intersect the box as you have kindly drawn it.



Im trying to delete everything within it...

Share this post


Link to post
Share on other sites
Jack_O'neill

You do realize that after invoking the erase command, you can erase either with a window or what is called a "crossing". The window will erase only those objects contained entirely in the rectangle you are dragging. A crossing will erase anything contained in it, as well as anything it touches. The window is created by dragging to the right and is solid. The crossing is created by dragging to the left and is a dotted line. If you happen to get objects you don't want using either method, hold the shift key down and pick that object again and it will be "deselected".

Share this post


Link to post
Share on other sites
ejmmfc

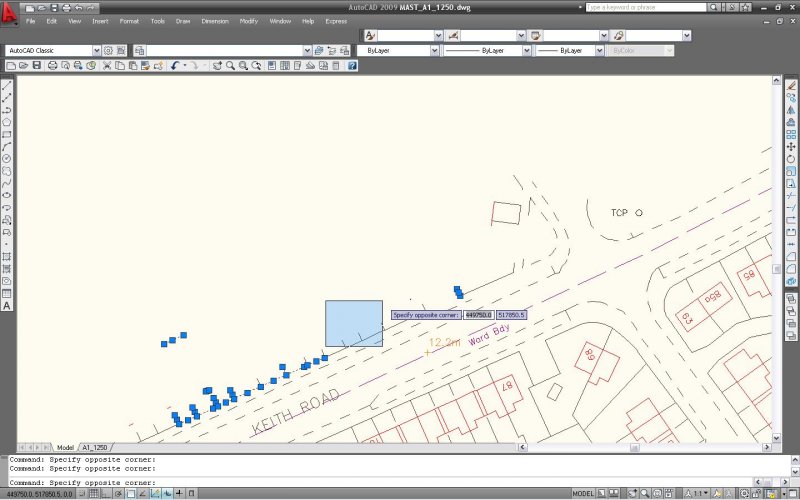

I've atatched an image which shows once you've deleted the date within the box which took an eternity to select using only a rectangle selector your left with all these edges to erase too. Again some kind of command to delete everything within a polyline would be perfect and neat whilst saving so much time.



Thanks again

Share this post


Link to post
Share on other sites
nestly

If it not a closed polyline, you could use ERASE (or SELECT) with the WPolygon option to deleted everything completely inside the boundary, followed by EXTRIM



If it is a closed polyline, you could use EICP.lsp (Erase Inside a Closed Polyline) to quickly delete everything completely inside the polyline, combined with EXTRIM



With the 2nd, it should take able 10 seconds to do both steps, regardless of how many objects are involved.

Share this post


Link to post
Share on other sites
ejmmfc

Thank you for your response nestly ....thats sounds perfect your link seemed to point to some code ? do I not need to simply enter EICP in the command line ? sorry youve lost me ?

Share this post


Link to post
Share on other sites
nestly

That code is called a "Lisp" which is basically a series of AutoCAD commands grouped together to perform a specific task. Lisps are not difficult to use, so if you're interested in learning how, just let us know. We'll probably just point you to one of the existing tutorials right here at Cadtutor.



That particular lisp will only work with a closed polyline, and after playing with it a little bit, it didn't always delete everything it should have, and it cleared my OSNAPS, so I'll try to find a more reliable one if your interested.



Did you try ERASE (or SELECT) with the WPolygon option? here's a demo of how that works

http://screencast.com/t/YlKC9AdGU

Share this post


Link to post
Share on other sites
ejmmfc

Nestly...



just cut and paste the code into command prompt line cant be that simple me thought.!!..then things seems to go dead for a while it was crunching thought Id infested my machine with some horrible virus but hey then typed ECIP and bingo....



Awesome works like a dream with extrim



Thank you so much thats is going to save so much time with this masterplan.

Share this post


Link to post
Share on other sites
nestly

Really?, I didn't know you could run a Lisp from the command line.



Typically, you'd copy/paste the code into Notepad, then save it as EICP.lsp in your AutoCAD support folder, then use APPLOAD to load it into AutoCAD. After you do all that, then anytime you type EICP at the command line, the command will work.



Here's one tutorial on how to use Lisps

http://www.cadtutor.net/forum/showthread.php?1390-How-to-use-the-LISP-routines-in-this-archive&

Share this post


Link to post
Share on other sites
Organic

I could be wrong but I seem to remember that you could somehow (natively) draw a polyline through objects and then it would delete all those objects crossed by the polyline.



Although I personally would just draw a rectangle around everything you want to delete, trim anything that is crossing over the recttangle border, then delete everything inside of the rectangle. If you want your crossing window to be easier to use you could perhaps use a rotated viewport or modify the UCS.

Share this post


Link to post
Share on other sites
danellis

Dink,



I suspect you're thinking of a crossing polyline selection method. With this you enter your command and enter CP (crossing polyline). This will let you "draw" a polyline to define your selection (will work with any command).



Even if it doesn't answer the OP (which it won't do: AutoCAD behaving differently to photoshop in this case is a difference in philosophy between the two products) learning about the different selection methods is well worth a beginner's time. There's a lot more options than the obvious three selection methods. This link is pretty high on the google results page: http://cadecorner.blogspot.com/2007/05/autocad-selection-techniques.html



dJE

Share this post


Link to post
Share on other sites
Organic

Yes, a crossing polyline is what I was thing of thanks.

Share this post


Link to post
