how to draw a circle passing from given 2 points and tangent to a given line


Recommended Posts

khoshravan

This is a geometry question, but I think folks here can help me to find a solution to draw it with CAD capabilites



I have 2 points and a line given (both points on one side of line)

I want to draw a circle so that it passes through two points and tangent to the given line.

I tried a little bit but seams not be so easy (at least for me)

Any idea.

I have to say that still I couldn't solve the geometry of the question but there might be a solution in ACAD.

Link to post
Share on other sites
  • Replies 26
  • Created
  • Last Reply

Top Posters In This Topic

  • eldon

    7

  • NAUTILUS

    4

  • khoshravan

    3

  • Organic

    3

Top Posters In This Topic

Posted Images

khoshravan
Draw -> Circle -> 3 Points



(which the circle will then be tangential to).

clicking the line, doesn't insure that it will be tangent.

Link to post
Share on other sites

Follow the steps ,



circle :

3p

1st point

2nd point

Right-Click with the mouse after holding down the Shift button and choose Tangent

Select the Line.





Congratulations . :)



Michaels

Link to post
Share on other sites
Jack_O'neill
Follow the steps ,



Right-Click with the mouse after holding down the Shift button and choose Tangent



Michaels



OR, simply type TAN at this point if you've changed your right click to do something besides displaying the osnap menu.

Link to post
Share on other sites
khoshravan
Follow the steps ,



circle :

3p

1st point

2nd point

Right-Click with the mouse after holding down the Shift button and choose Tangent

Select the Line.





Congratulations . :)



Michaels



Dear All



Thanks. I learned that it is possible to input new snap command "tan" in the middle of another command. Very nice solution.

Link to post
Share on other sites
  • 2 years later...
NAUTILUS

amazing solution, just out of curiosity, does anyone knows the geometrical solution? ( without using CAD options)

Link to post
Share on other sites
JD Mather
amazing solution, just out of curiosity, does anyone knows the geometrical solution? ( without using CAD options)



Draw a circle with center at point 1 to point 2.

Draw a circle with center at point 2 to point 1.

Draw line from intersection of circle 1 and 2 perpendicular to the line. The third point is now known.

Link to post
Share on other sites
Draw a circle with center at point 1 to point 2.

Draw a circle with center at point 2 to point 1.

Draw line from intersection of circle 1 and 2 perpendicular to the line. The third point is now known.



I just tried that and it did not work for me. Could you please post a screen shot to show your construction? Thank you.

Link to post
Share on other sites
Organic
I just tried that and it did not work for me. Could you please post a screen shot to show your construction? Thank you.



I tried it and for the case I tried, it worked on one intersection point where the two original circles overlapped (the intersection point closest to the line) although failed on the other intersection point.

Link to post
Share on other sites

I am afraid that JD Mather mis-read the latest request that was for a Geometrical solution, and his solution must be said to be incorrect.



After a bit of delving, I think that the Tangent-Secant Theorem is the geometrical solution.



Given two points A and B and a tangent line, then proceed thusly:-



produce the line AB to meet the tangent line at C. Then the length CD is given by the equation



CB x CA = CD²



A calculator is needed (probably), but there are graphical solutions.


Edited by eldon
corrected expression
Link to post
Share on other sites
I am afraid that JD Mather mis-read the latest request that was for a Geometrical solution, and his solution must be said to be incorrect.



After a bit of delving, I think that the Tangent-Secant Theorem is the geometrical solution.



Given two points A and B and a tangent line, then proceed thusly:-



produce the line AB to meet the tangent line at C. Then the length CD is given by the equation



AB x AC = CD²



A calculator is needed (probably)



eldon, how would that work if the line AB was parallel to the tangent line CD? You would never get an intersection. Honestly though, I can't see how to do it.

Link to post
Share on other sites

I was giving a general solution.



The case if the two points were parallel to the tangent line would be simplicity itself, because the angle at the circumference is half the angle at the centre. :D

Link to post
Share on other sites
NAUTILUS
.... A calculator is needed (probably)



then its not the geometric solution.



what I mean by geometric solution is pure drawing, no calculations.



thanks anyway

Edited by NAUTILUS
Link to post
Share on other sites

I was expecting that you could create a graphical solution for the term CA x CB = CD², and that is why I put the (probably) at the end.



You have a rectangle with sides CA and CB. All you have to do is to find the square of equal area which will give you CD.



Over to you now.

Edited by eldon
corrected expression - oops
Link to post
Share on other sites

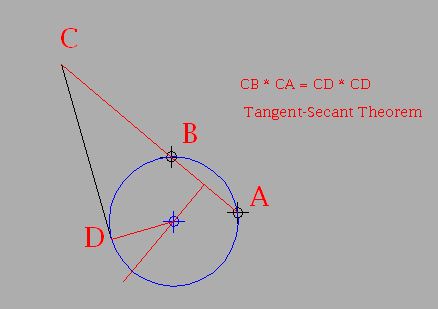

In fact, I have just spotted my deliberate mistake. :oops:



In the posted picture, the equation should be CA x CB = CD²

Link to post
Share on other sites
eldon, how would that work if the line AB was parallel to the tangent line CD? You would never get an intersection. Honestly though, I can't see how to do it.



Apologies for my previous answer. it was due to the fact that my brain skipped a couple of steps before my fingers hit the keyboard.



If A and B are parallel to the tangent line, then the median bisector of AB would intersect the tangent line at right angles, i.e. the intersection point would be the tangent point. This is a special case, although if you took the mathematics, you could probably convince yourself that CD was the average of CA and CB :o



Then the circle could be constructed by using median bisectors, or the fact that the angle at the circumference is twice the angle at the centre :D

Link to post
Share on other sites
