Asger Posted February 15, 2011 Posted February 15, 2011 I am using standard settings on this inventor, and the center point clicked as visible, but this coincident constraint does not work, semi-works if i constraint between two sketches, but not with the center point, i can't select it as the second point, or any point for that matter (Yes I am in sketch mode) Quote
JD Mather Posted February 15, 2011 Posted February 15, 2011 You must Project Geometry the Center Point as a sketch point (you can set Inventor to do this automatically. Post your file here if you can't figure it out. Quote

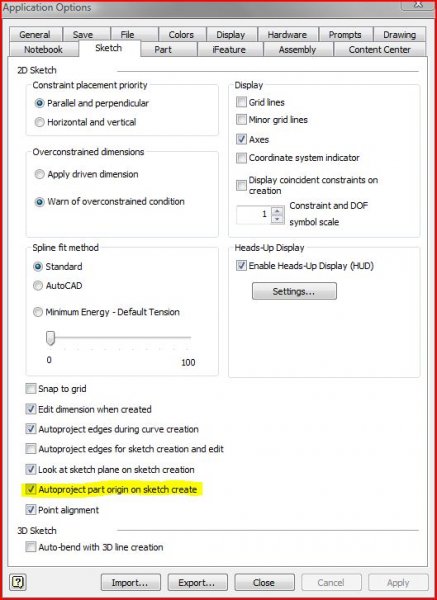

jdits7 Posted February 15, 2011 Posted February 15, 2011 If you are wanting to Project Part Origin on Sketch Creation here is a picture to show where it is located in your Application Options. Quote
Asger Posted February 15, 2011 Author Posted February 15, 2011 Brilliant, thx JD. Sometimes it's the small details you miss, it's hard learning this from a text book and thank you Jdits7 Quote
JD Mather Posted February 15, 2011 Posted February 15, 2011 .... it's hard learning this from a text book ... Cliff notes to the most important Inventor tips and tricks http://home.pct.edu/~jmather/skillsusa%20university.pdf Quote
