Connecting centerlines - inv 2011


Recommended Posts

CADswoop

is there a good way to "snap" connect centerlines in a drawing, or a way to trim or extend them to the next centerline. There doesn't seem to be a good quick way in Inventor 2011 - weird - am I missing something

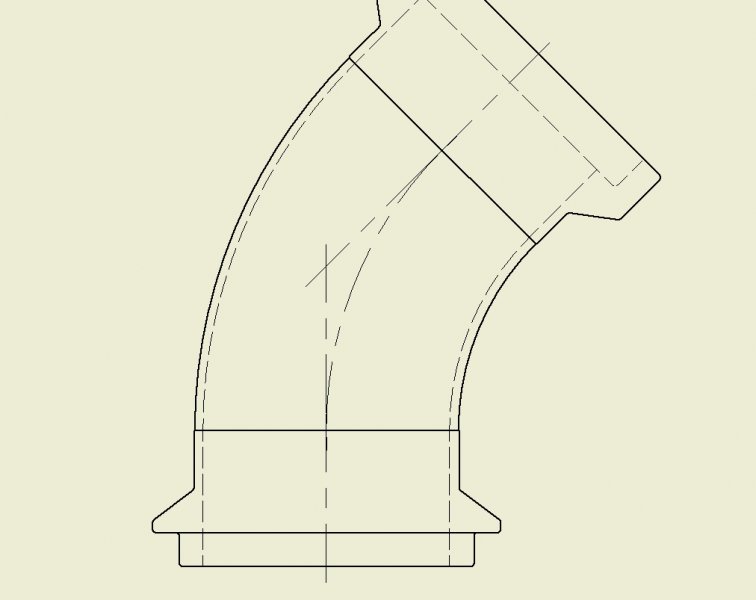

my scenario is - I have a 90 degree elbow with some straight tangent ends- to which I've inserted centerlines to the elbow and thru the straight sections. I need to dimension from the center point, on the backside of the 90deg arc, to the face of the straight end. I can do that, but I have to use "intersect" for the centerlines instead of just having them "intersected" already :?

Link to post
Share on other sites
fuccaro

I moved this question in the Inventor forum. CADswoop, here you have more chances to get your question answered.

Link to post
Share on other sites
CADswoop

there are some applications where it is more for looks than anything else. The point is, you still should be able to access the centerlines just like any other line.
