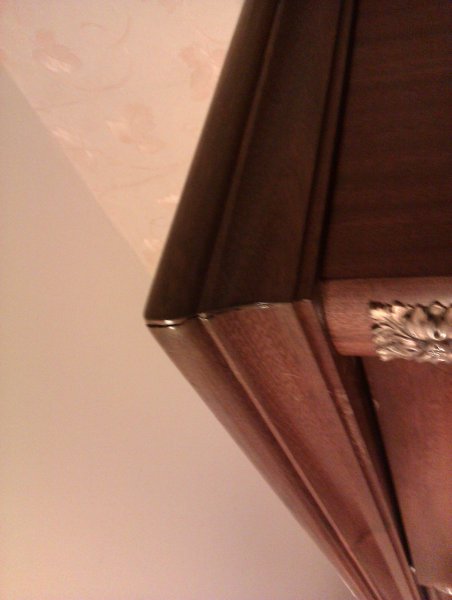

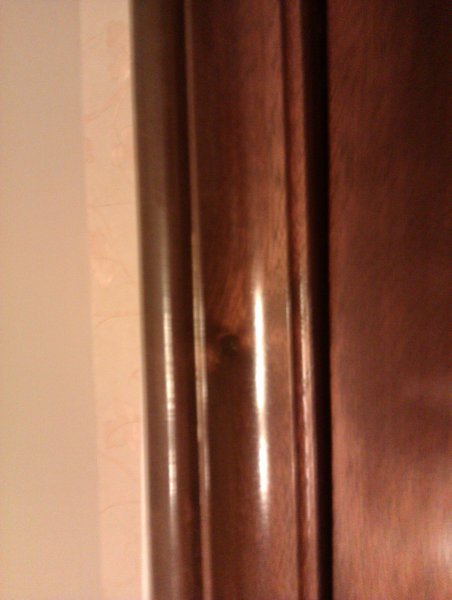

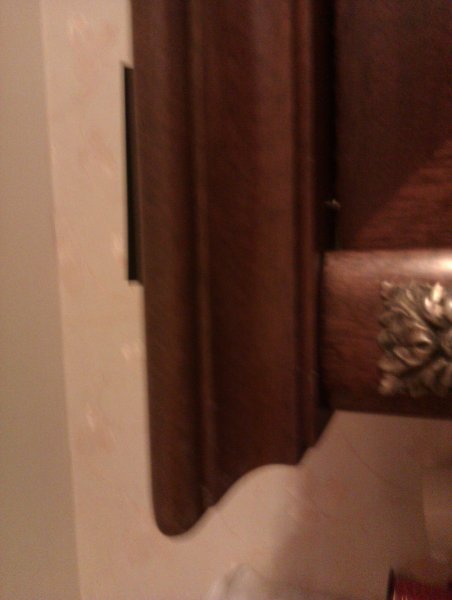

Arielis Posted July 10, 2011 Posted July 10, 2011 hi, I try to represent a box with inventor fusion. My difficulties are on the outline. My objective is to have the same outline of the pictures. If someone can help me to do it? The inventor files are on http://dl.free.fr/bKTX04zb0 Is there a possibility to write the numbers like on the picture on Inventor or is there another way? Regards, Ariel Quote

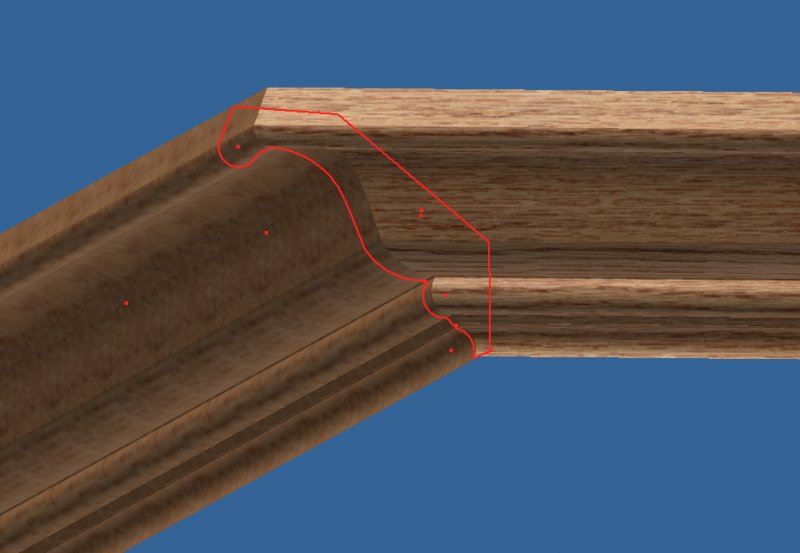

kencaz Posted July 10, 2011 Posted July 10, 2011 Use the "Sweep" function. Make your moulding profile sketch perpendicular to your sweep path. Use "Decal" on an offset plane to for the number image. KC Quote
Arielis Posted July 10, 2011 Author Posted July 10, 2011 Hi, I want to say amazing for the pictures that you provided. I will try to do it and I come back to give you some feedback. Regards, Quote
