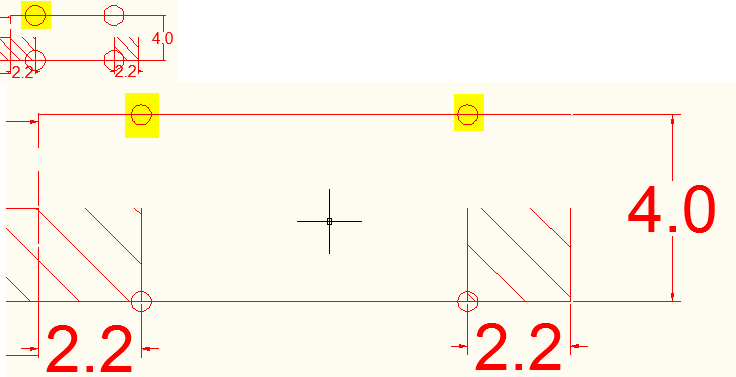

bobsun Posted August 18, 2011 Posted August 18, 2011 Hi, I found a strange behavior of AutoCAD. When I was modifying a drawing and adding dimension annotation, there suddenly come some small circles as highlighted in yellow in the screenshot. First, there is no way I can't select them. Second, zooming doesn’t change their size. Does anyone know what these small circles are? How to get rid of them? Bob Quote
MSasu Posted August 18, 2011 Posted August 18, 2011 It is possible to be some points (Point entity) there? Please call DDPTYPE command and check which point marker is set. Change if to dot to see if something change. Regards, Mircea Quote
bobsun Posted August 18, 2011 Author Posted August 18, 2011 Mircea, I tried DDPTYPE. However, it might actually related to dimensional annotation nodes. If I delete the original annotation and re-apply them, these circles disappears. Bob Quote
JD Mather Posted August 18, 2011 Posted August 18, 2011 Here is an idea - attach the file here. Quote
bobsun Posted August 18, 2011 Author Posted August 18, 2011 JD, I guess it might just because some reference points might have been missed. Doing the annotation again solved the problem. Quote
rkent Posted August 18, 2011 Posted August 18, 2011 Just a guess, the layer you used is set for that linetype. Change to a layer with continuous linetype and dim again. Quote
