Is it possible?

Help!

File with 3 lines (A, B, C) 2 models (A, B)

Create multiple sections automatically and can be modified by moving a line or model.

How do I can do this?

I've tried but SECTIONPLANE SECTIONPLANE previous close.



Thank you.



Sorry for my bad EnglishSECTION.dwg

[ReMark]

SECTIONPLANE is the command you should be using. What happened when you used it?



Are you aware that after you have located your section plane, in order for it to show anything, you have to turn on Live Sectioning?

[nestly]

I don't have 2008, but SECTIONPLANE > Livesection would seem to be the right tool.



http://screencast.com/t/3drisDKe3zK

[titoprax]

When I create a section I can change SECTIONPLANE automatically and in real time cutting an object. My problem is I generating several sections and I put them in multiple windows to view each cut. I did not realize that.

[ReMark]

Is there a question then?

[titoprax]

The question is

How I can generate several sections of an object and it can view?

Sorry again for my bad English

[ReMark]

Create and position your section planes. Use the Create Block tool to create a block from a section object. You can also select a section object, right-click, then choose Generate 2D/3D Section from the shortcut menu. Do all this in model space. Once you have created all your 2D blocks you can switch over to your paper space layout, create and set up your viewports as required.

[nestly]

I think the OP wants 3 different live Sectionplanes in 3 different viewports. Even if each Section plane is on it's own layer, I don't think you can control the "live" status by viewport.

[ReMark]

I suspect you are correct re: controlling "live' status by viewport however I have not tested that theory yet. It would be an interesting experiment though.

[titoprax]

I add a PDF explaining what I want

Example.pdf

And excuse for my bad English.

[SLW210]

I would use _SOLVIEW.

[ReMark]

I would use _SOLVIEW.

And don't forget its companion SOLDRAW.

[nestly]

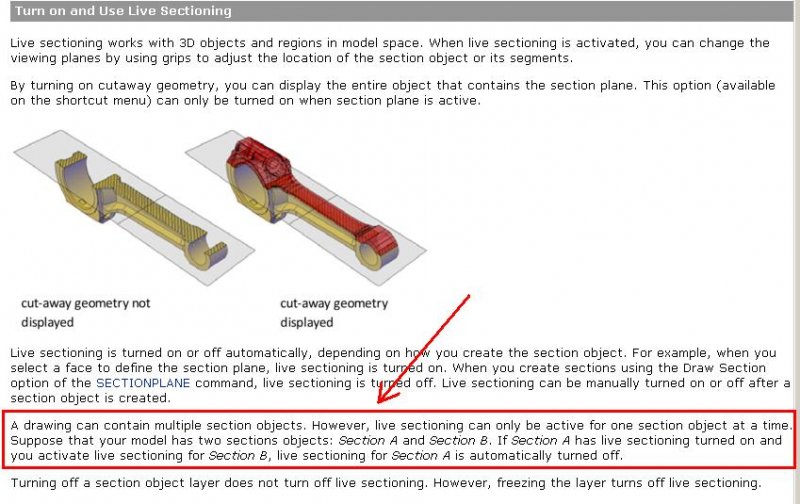

Not possible to display more than one "live" section at a time.



Use Live Section to Adject the Cross Section

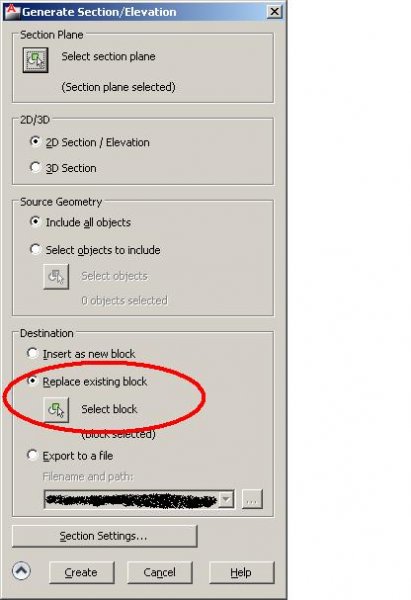

As far as I know, the closest you can get is to create section blocks (SECTIONPLANETOBLOCK) from your Section planes.

If you change the model, just use SECTIONPLANETOBLOCK again to update the section blocks.
