Grid on curved surface

ALHABI

By ALHABI
in Architecture & ADT

 Share

Recommended Posts

ALHABI Rookie

ALHABI

Posted
Posted

Hi there i am working on a project where i need to have an elliptical building shell and then need to draw on it a hexagonal axis to draw space frame structure along side the surface of the elliptical surface. any help?

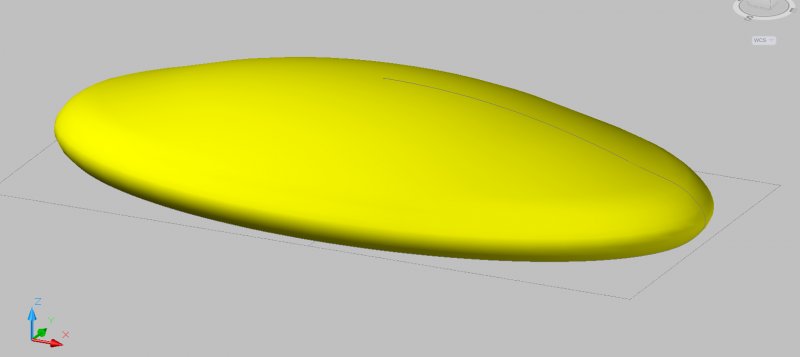

i have attached 2 images.one showing the elliptical building shell (done through lofting) and the second showing the sketch of the design required.
