Extrude Not Creating a Closed 3D object.

[inujuju]

So I am currently working on a playground development for a school project where we have to build a 3D playground based off of autocad drawing, modles, etc.

Below is a picture of a "crab see-saw" that I have in my park, and I am having trouble making it 3D. I have tried using "extrude", but, while it streches the drawing into 3D, only the crab's claws become a solid object. The crab's body remains "open".

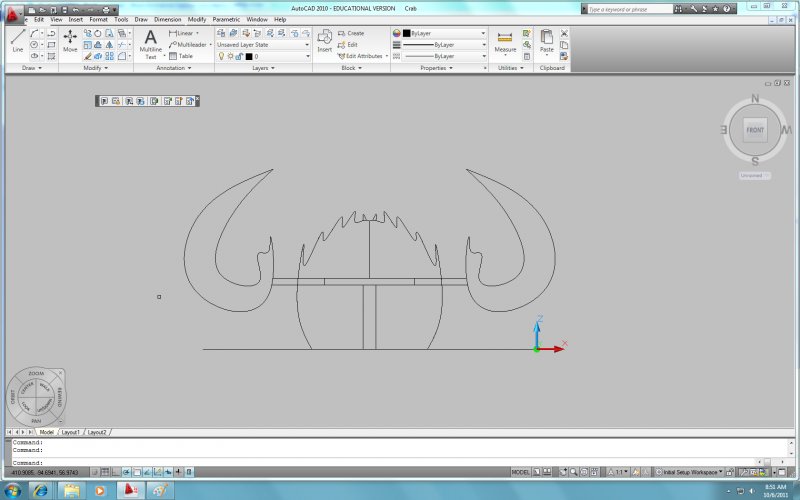

-> Normal Drawing

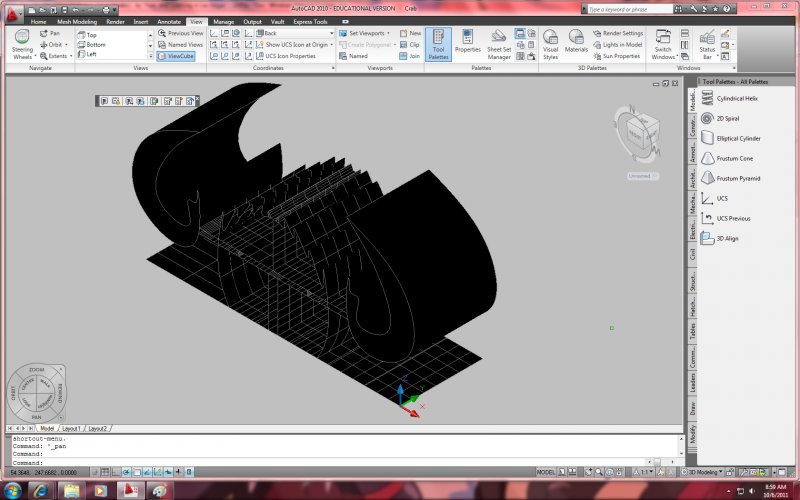

-> Extruded Drawing



The steps I take to extude it are:

1. Select extrude command

2. Select entire drawing

3. Click top of crab body for designated height

4. Type in 7 (units) as the strech command

5. Press enter



All the lines for the crab body are connecterd and I just can't figure out why it isn't working. My teacher is also baffled. It would be my pleasure if you could give me advise on how to fix this.

[SLW210]

It would easier to check if you could post the file.



I will move this to the AutoCAD 3D Modelling & Rendering Forum for you.

[inujuju]

It would easier to check if you could post the file.



I will move this to the AutoCAD 3D Modelling & Rendering Forum for you.



Thank you very much.

How would I go about posteing the file? Is there a way to link it up here or should I upload it on a downloading site like MegaUpload or MediaFire?

[SLW210]

Click the "Go Advanced" Button at the bottom of the reply box. Then select Manage Attachments.

[inujuju]

Thanks!



Crab.dwg Here is the file for the drawing.

[ReMark]

The claws are a solid, as you said, the rest is a surface (which you did not expect).



Try using the Press/Pull command. That should work.



Note: you may have a problem in a couple of areas due to all the little line segments you used. Not a good habit to develop.

[ReMark]

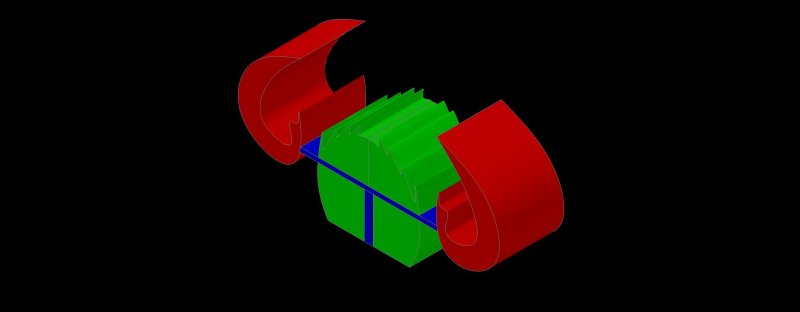

Crab cakes anyone?
