Hyperbolic paraboloid mesh problem

Recommended Posts

gooooog

Hi i've got to grips quite well with mesh modelling but i cannot seem to be able to mitigate this shape, a hyperbolic paraboloid in 3D Cad (see attached image)... can anyone give me any guidance on this matter?



Thanks



Clive


Share this post


Link to post
Share on other sites
kencaz

Convert to surface then thicken...

Share this post


Link to post
Share on other sites
gooooog

convert what into a surface? ive tried loads of different ways theres no guidance tips on youtube or the internet.



thanks

Clive

Share this post


Link to post
Share on other sites
JD Mather

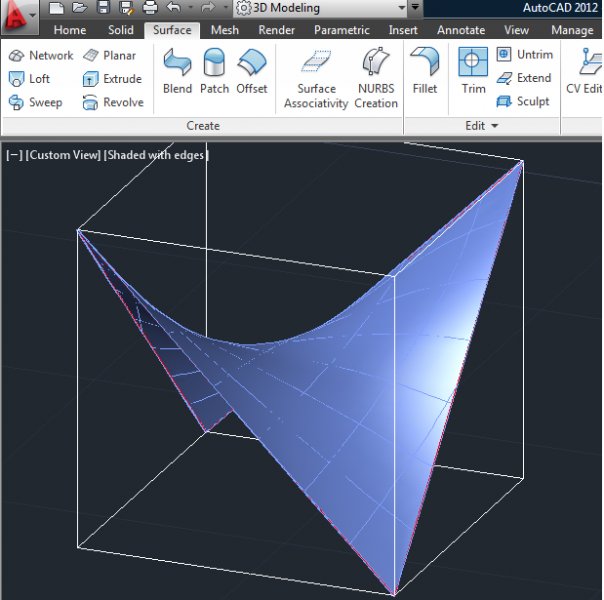

Patch might be your solution.

ACAD 2012.jpg

Share this post


Link to post
Share on other sites
kencaz

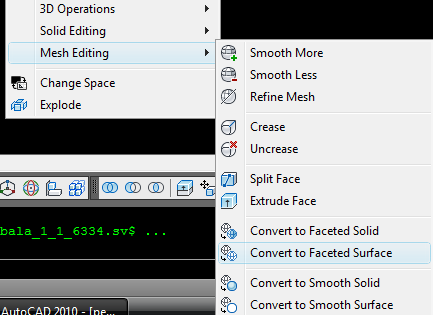

convert what into a surface?



Clive



Your Mesh of course:




Share this post


Link to post
Share on other sites
gooooog

im using it for a restaurant im designing for my uni project. how do I get hold of a path or can i import that picture somehow?

thanks

Share this post


Link to post
Share on other sites
JD Mather
...how do I get hold of a path





3dpolyline



You could import your picture, but I don't know what good that would do.



Attach here what you have completed so far if you can't figure it out.

Share this post


Link to post
Share on other sites
gooooog

they cannot be converted into surfaces for some reason i dont know whats goin on



thanks

paraboloide.dwg

Share this post


Link to post
Share on other sites
JD Mather

You are doing too much work - you only need the 4 boundary edges.

Create using 3Dpoly with C (for close) as your last point.



or

you could use Loft with Guide curves, but I think I would simply use a closed 3dpoly and Patch.

right click and select proper option that will allow you to select the 3Dpoly boundary)

Share this post


Link to post
Share on other sites
gooooog

this really isnt working... i must be doing something wrong

Share this post


Link to post
Share on other sites
JD Mather
this really isnt working... i must be doing something wrong



Do the cube wire frame.

start 3dpoly and click the boundary points (use C for close on last point)

Do a Patch (check right mouse button options for proper selection).

Share this post


Link to post
Share on other sites
JD Mather
this really isnt working... i must be doing something wrong



Attach your file here.

Share this post


Link to post
Share on other sites
SEANT

For something like this I’d recommend using the Loft methodology – though I think 2 lines is enough (see attached).



Patch is useful; though in this instance the resultant geometry is a trimmed surface. AutoCAD does not treat it as such, but the isolines suggest it – the Acis/Brep information confirms it.



So, even if the surface is within tolerance, the Patch will not have traits associated with the doubly ruled hyperbolic paraboloid, nor a regular (fully contained) UV Parametrization.

LoftVsPatch.dwg

Share this post


Link to post
Share on other sites
