Viu Posted October 20, 2011 Posted October 20, 2011 [ATTACH=CONFIG]30638[/ATTACH] Can anyone show me how to checker a part in Inventor, like the one shown? -Thanks, Viu Quote

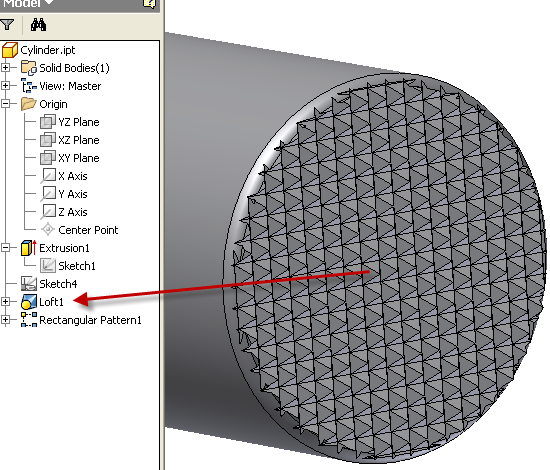

JD Mather Posted October 20, 2011 Posted October 20, 2011 Loft to point. Rectangular pattern or use a cosmetic texture. Quote
Viu Posted October 25, 2011 Author Posted October 25, 2011 Thanks, however I'd like something a little more tutorial-ish. Making the actual knurling is the only option as I want to have this part produced. Quote
SLW210 Posted October 25, 2011 Posted October 25, 2011 Thanks, however I'd like something a little more tutorial-ish. Making the actual knurling is the only option as I want to have this part produced. What type of machine needs the drawing to show the actual knurling? Did you check out the tutorials in JD Mathers signature? Quote
JD Mather Posted October 25, 2011 Posted October 25, 2011 Make an attempt at modeling the geometry. Attach your attempt here (right or wrong). Quote
JD Mather Posted October 26, 2011 Posted October 26, 2011 Did you figure out how to loft to a point yet? Pattern feature? Quote
