smstoankur Posted November 17, 2011 Posted November 17, 2011 Hi, i want to align a line of length say 3m between two intersecting lines. Can someone explain me how to do it in autocad. Quote
Jack_O'neill Posted November 17, 2011 Posted November 17, 2011 Hi, i want to align a line of length say 3m between two intersecting lines. Can someone explain me how to do it in autocad. I don't entirely understand what you're asking. Between 2 intersecting lines? How do you get between 2 lines that intersect? Sorry, I'm not following... Quote
smstoankur Posted November 22, 2011 Author Posted November 22, 2011 I want to rotate the line around the lower point such that it is touching both lines. Drawing2.dwg Quote
eldon Posted November 22, 2011 Posted November 22, 2011 I always find that drawing a temporary circle helps with these rotation problems Quote

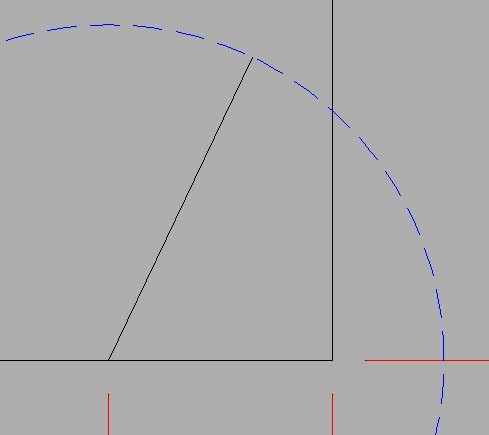

SLW210 Posted November 22, 2011 Posted November 22, 2011 Like eldon, draw a circle with radius of the line, rotate>reference, Select center of circle (or associated end point of line) then intersection of line and circle (or associated end point of line), then select intersection of line and circle. Quote
smstoankur Posted November 23, 2011 Author Posted November 23, 2011 Thanks. It helped a lot. Didn't came into my mind. Quote
cadvision Posted November 23, 2011 Posted November 23, 2011 chamfer looks like the easiest solution to me Quote
eldon Posted November 23, 2011 Posted November 23, 2011 (edited) Chamfer command? chamfer looks like the easiest solution to me I am very perplexed as to how Chamfer can rotate a line The OP does not actually refer to which post struck gold Edited November 23, 2011 by eldon added quote Quote
