3D to Flat Surfaces

[scorpio6_ir]

Hi friends

I had a flat screen, get the volume geometry.

For maps of air transport, a rectangular cross-section of the circle



Whether this is done with AutoCAD 2011.



I draw 3D

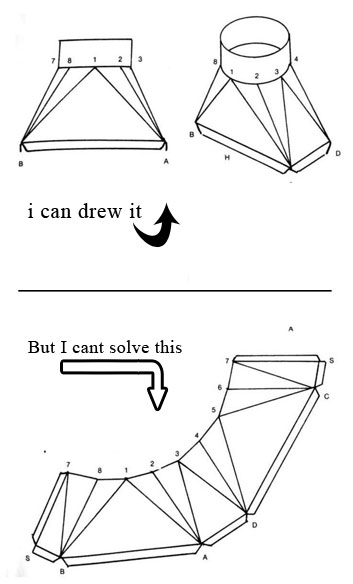

For example, this plan







Sorry, I can not speak good English.





Please Help me

[ReMark]

It sounds like you are looking for a way to take your 3D objects and flatten them out to develop a pattern. Is that correct?



Or are you just looking to know how much sheet metal (the area) the pattern would cover?



Looks like a good job for Inventor. Are you a student? Students can download Inventor for free.

[JD Mather]

If you only have access to AutoCAD you should find the chapter on Developments in an mechanical drafting textbook and lay out (develop in English) the flat pattern manually.

If you can get access to a program like Inventor - it will generate the flat pattern for you from the 3D model.

[scorpio6_ir]

Thanks for the answer.



Yes, I am student.

I'm cutting sheet iron with CNC, and then I bent to form sheets.

What do you suggest for this?



If it is possible to explain the Inventor further.



Thanks

[JD Mather]

Yes, I am student.

I'm cutting sheet iron with CNC,



That would be an unusual material to use for the part you showed in your picture.

Students can download free 3-yr license of Inventor for free from http://www.autodesk.com/edcommunity

Your instructor should be able to show you how to use the sheet metal tools in the software.
