Torque of motor simulation support !!??

[solidheart]

Hiiiii,,

Could anyone please tell me the steps on how to get the graphe of the torque of a motor in a compressor system which is simulated in inventor 2012 - or 2011? ?



Thanks in advance

[JD Mather]

Have you gone through this book?

http://www.amazon.com/s/ref=nb_sb_ss_i_0_9/175-7927175-4821357?url=search-alias%3Dstripbooks&field-keywords=wasim+younis&sprefix=wasim+you%2Cstripbooks%2C331



Attach your assembly here.

[solidheart]

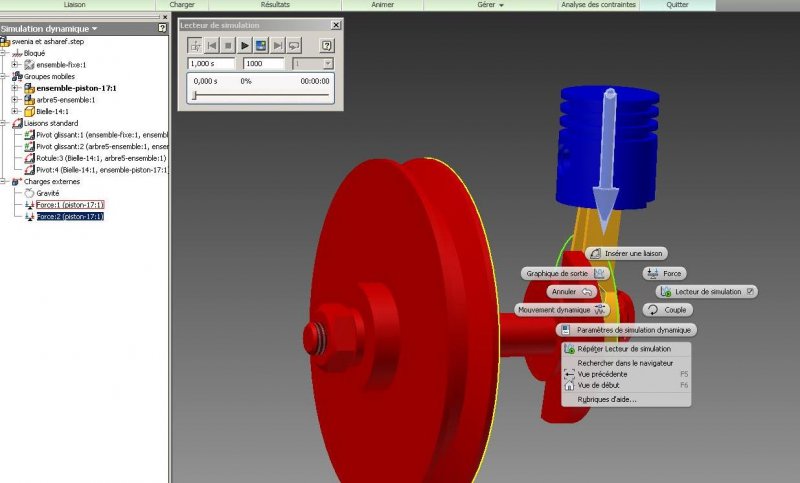

Here is a screan shot of the assembly :: Tow forces were applied on the piston as shown the first is 500 N :: the second is -50 to equilibre the system :: could you tell me how to apply torque articulaire in respect of relation 1/2
