deano33 Posted March 18, 2012 Posted March 18, 2012 After a linetype thad draws double and triple lines. Any ideas? Quote
rickh Posted March 19, 2012 Posted March 19, 2012 how about MLINE? you can look into creating mline styles as well for triple lines, etc. Quote

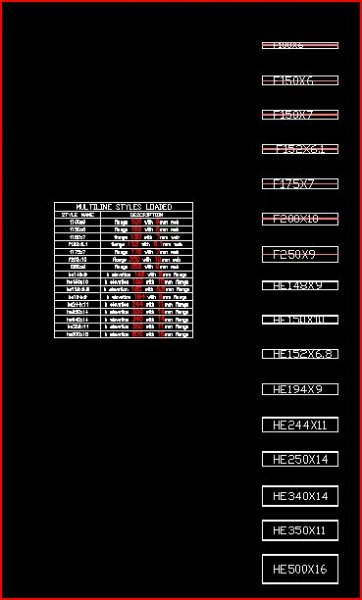

Dadgad Posted March 19, 2012 Posted March 19, 2012 Multilines is definitely what you want, you can save a whole tool palette full of common ones you use. I have multilines made up for common steel profiles we use, in plan and elevation views. I actually keep these in my template modelspace. There are interesting options for end treatments available too. Quote
SLW210 Posted March 19, 2012 Posted March 19, 2012 how about MLINE? you can look into creating mline styles as well for triple lines, etc. Multilines is definitely what you want, you can save a whole tool palette full of common ones you use. I have multilines made up for common steel profiles we use, in plan and elevation views. I actually keep these in my template modelspace. There are interesting options for end treatments available too. No MLINE available in LT After a linetype thad draws double and triple lines. Any ideas? All you have is DLINE AFAIK. Quote
deano33 Posted March 19, 2012 Author Posted March 19, 2012 Not having MLINE is exactly why I want to create a custom linetype for double line and tripple line. Any ideas? Quote
rickh Posted March 20, 2012 Posted March 20, 2012 The problem with a linetype made of dashes, underscores, etc. or with a shape, is that the corners will always split and/or intersect. How "pretty" do the corners need to be? Quote
