Subtract one solid from another

[Hawley]

How do subract/cut the part of the magenta cylinder inside the gray cylinder from the attached pdf? Am trying to figure out hot to add/insert an image. May have to start over. Edited March 28, 2012 by Hawley

[mdbdesign]

Substract and separate after.

[Hawley]

When I subtract, selecting the gray cylinder to subtract from and then select the magenta cylinder to subtract, all of the magenta cylinder is subtracted.

[MSasu]

You should select first the magenta cylinder and the grey one in the next step.



Regards,

Mircea

[Hawley]

That deleted the entire gray cylinder and a "slot" in the magenta cylinder.

[MSasu]

Then just make a copy of the grey part (using the same point as to/from) and use it in your boolean operation; next do what mdbdesign suggested - apply separate solids on magenta part; last step erase the part from inside the grey pipe.



Regards,

Mircea

[Hawley]

I tried the above without any luck. I haven't been worjing in 3D for long and there's a long learning curve. Thanks for the help. I'd attach the dwg file but don't know how.

[MSasu]

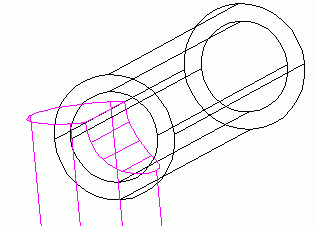

Just to be sure, this is what you are trying to achive?



Regards,

Mircea

[Hawley]

Yes. That's it excatly.

[MSasu]

In this case please follow the succesion of commands below (some prompts/options may be slightly differant in your version):



Command: _COPY

Select objects: select the grey cylinder

Select objects:

Current settings: Copy mode = Multiple

Specify base point or [Displacement/mOde] : 0, 0

Specify second point or : 0, 0

Specify second point or [Exit/Undo] :



Command: _SUBTRACT

Select solids and regions to subtract from ..

Select objects: select the magenta cylinder

Select objects:

Select solids and regions to subtract ..

Select objects: Specify opposite corner: select the grey cylinder

Select objects:



Command: _SOLIDEDIT

Solids editing automatic checking: SOLIDCHECK=1

Enter a solids editing option [Face/Edge/Body/Undo/eXit] : B

Enter a body editing option [imprint/seParate solids/Shell/cLean/Check/Undo/eXit] : P

Select a 3D solid: select the magenta cylinder

Enter a body editing option

[imprint/seParate solids/Shell/cLean/Check/Undo/eXit] :

Solids editing automatic checking: SOLIDCHECK=1

Enter a solids editing option [Face/Edge/Body/Undo/eXit] :



Command: _ERASE

Select objects: select the magenta part inside the grey pipe

Select objects:

Regards,

Mircea

[nestly]

I would use the INTERFERE command.



[Hawley]

Thanks Mircea. That worked just as you said. I'll have to study those commands to try to follow the logic.
