Circle Linetype Issue

[WERDNA]

Can anyone tell me why a circle is not showing the particular linetype (no matter what scale I adjust it to) until I break the circle line?

[eldon]

Can you post a drawing so we don't have to keep on guessing?

[WERDNA]

Will do as soon as I get back to the office.



Thanks the reply.

[WERDNA]

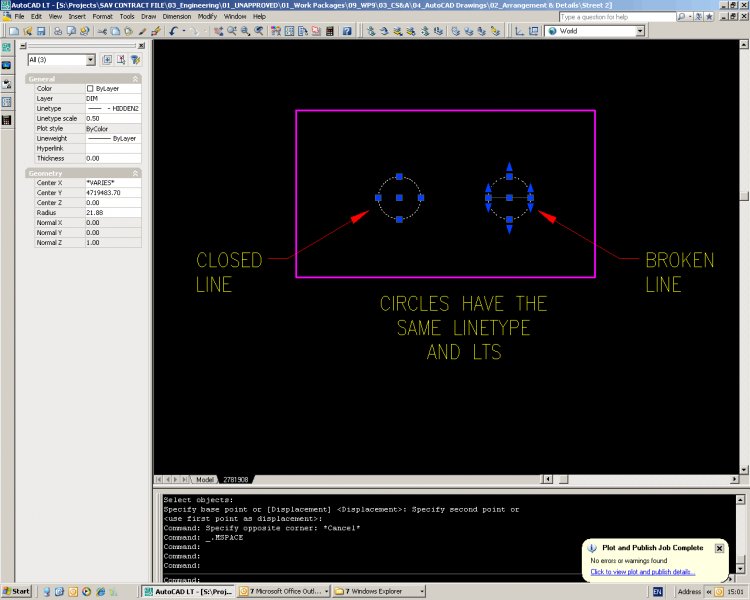

Hope this makes it a bit clearer? For some reason the dashed line will not show-up without breaking the line, second image showing the pick boxes.

[SLW210]

You need to post the actual drawing file.

[rkent]

Your circles are a long ways from 0,0; you have ltscale set to 0.01, and celtscale set to 0.5. Maybe all of that contributes to your problem. What scale is your viewport set to?



Much easier to trouble shoot when you post the actual drawing.

[WERDNA]

How do I post a drg file?

[MSasu]

You will find instructions here.



Regards,

Mircea

[WERDNA]

Dwg file attached.

There may be an opportunity to answer another query here, my drgs have been hanging at the slightest thing, even switching from model to paper space, any possible causes?

mc00005 HANGERS SECTIONS AND ELV.dwg

[eldon]

Thank you for posting the drawing. However, the drawing that I had in mind would have consisted of one circle, whose linetype would not show, and one broken circle whose linetype did show.



Now we have hunt the thimble. Could we have a little clue as to where your problem actually exists.



Have you tried to set the linetype scale to something like 10

[WERDNA]

Apologies, must of deleted the circles after the post. That was the file I used to show the problem, I think rkent cracked it with the distance from origin suggestion. I positioned one of the blocks at 0,0 and when viewed within a viewport the hidden circular lines are coming through dashed.



Thanks to everyone for their assistance.

[rkent]

Andrew, that drawing has some really obvious problems. It has >1000 annotation scales, time to get rid of those. The objects are way, way out from 0,0. There are hatches floating out in the middle of no where. Those are the obvious things, probably others.

[WERDNA]

Ok will look into those issues, thanks for the comments.

[WERDNA]

I am unable to edit my scale list, no box is opening when I pick it. Is there another way to get rid of the annotation scales?
