vehicle swept path generator

[Guest Billsta]

hi people...



was wondering if anyone knows there are plug-ins for autocad that generates vehicle swept paths? especially for a semi-trailer (articulated vehicle)



we have a standard print out of the swept path, but it generally for turning and reverse, in 90, 60, 45, 30, & 0 degrees. they are useful after i scanned them and trace it in autocad,

however, when councils ask for bizzare turning paths it makes my life miserable, its way too time consuming to chop section of the pictorial swept path and reconnecting them not so hard with standard cars, but the Articulated vehicle its a pain..



anyhow,

any help would be appriciated...



cheers



bill

[CADTutor]

This looks promising: http://www.analytico.com.au/AutoTrack4.html and they're local (to you) and there's a free trial download. What more could you ask?

[Tommy83]

hi people...



was wondering if anyone knows there are plug-ins for autocad that generates vehicle swept paths? especially for a semi-trailer (articulated vehicle)



we have a standard print out of the swept path, but it generally for turning and reverse, in 90, 60, 45, 30, & 0 degrees. they are useful after i scanned them and trace it in autocad,

however, when councils ask for bizzare turning paths it makes my life miserable, its way too time consuming to chop section of the pictorial swept path and reconnecting them not so hard with standard cars, but the Articulated vehicle its a pain..



anyhow,

any help would be appriciated...



cheers



bill



AutoTURN is widely used for Vehicle swept path analysis

[BIGAL]

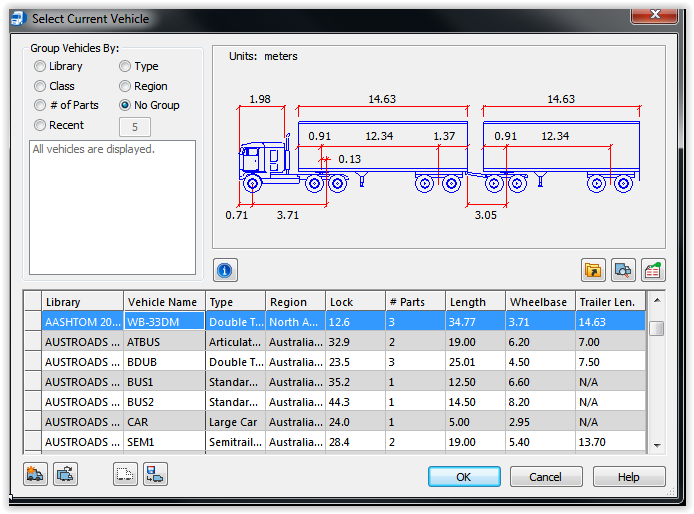

Autoturn massive amount of vehicles pre set world wide standards, car and caravan !

Edited April 16, 2016 by BIGAL

[dkeran]

Also CAD Tools has similar. http://www.glamsen.se/CadTools.htm
