How to create boundary box with spline entity?

[marko_ribar]

Code on post #39 has been changed and updated...



Sincerely, M.R.

[kwwong6]

Thank for your code. Really fast and good, but just cannot for rotated block only. I now try to make other program for all of this, maybe need some days to finish it. If good I will post out.

[marko_ribar]

I've changed code just a little since my last post... Hope you'll now use it well...



I'll attach lsp due to its size...



M.R.



[EDIT : Even more modified BBox.lsp - only lack are blocks within blocks and blocks that overlap each other - that's why it's advised that you save DWG and then proceed to run routine]



[EDIT : It were 3 downloads till I reattached new version]

BBox.lsp

Edited November 3, 2013 by marko_ribar
reattached lisp

[marko_ribar]

Lisp reattached...



Regards, M.R.

[Stefan BMR]

Hi Marko

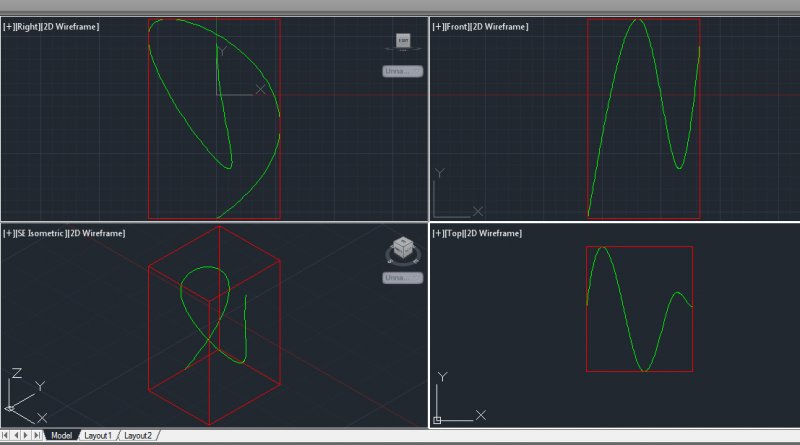

I have thinking to another way to find the limits (bounding box) of a spline. The idea is to find the limits of some projections of spline on x, y and z axis.

This is a VERY limited tested version, but I think it might be useful.



(defun spline_bb (e / p1 p2 d ax bb)
 (vla-getboundingbox (vlax-ename->vla-object e) 'p1 'p2)
 (setq p1 (vlax-safearray->list p1)
       p2 (vlax-safearray->list p2)
       d  (distance p1 p2)
       p1 (mapcar '- p1 (list d d d))
       p2 (mapcar '+ p2 (list d d d))
       ax (mapcar '(lambda (n) (sp e n)) '((t nil nil) (nil t nil) (nil nil t)))
       bb (mapcar
            (function
              (lambda (p)
                (mapcar
                  (function
                    (lambda (f a n)
                      ((eval f) (vlax-curve-getclosestpointto a (pp p n)))
                      )
                    )
                  '(car cadr caddr)
                  ax
                  '((t nil nil) (nil t nil) (nil nil t))
                  )
                )
              )
              (list p1 p2)
           )
       )
 (mapcar 'entdel ax)
 bb
 )

;point projection on axis
(defun pp (p n) (mapcar 'if n p '(0.0 0.0 0.0)))

;spline projection on axis
(defun sp (e n)
 (entmakex
   (mapcar
     (function
       (lambda (x)
         (if
           (member (car x) '(10 11))
           (cons (car x) (pp (cdr x) n))
           x
           )
         )
       )
     (vl-remove-if '(lambda (x) (member (car x) '(-1 5 330 67 410 8 210 62 11))) (entget e))
     )
   )
 )

[Lee Mac]

Excellent idea Stefan, kudos

[marko_ribar]

Stefan, why do you think it's very limited tested version... I think it's even better than first your code - it doesn't iterate 500 times while running... I've already implemented into my BBox.lsp and see no lack... Thanks, Stefan, you are really genius... And first code was real master piece and now this second, without (vlax-curve-getfirstderiv)...



All the best, M.R.



[EDIT : I forgot ab HELIXes]



Reattached lisp [it was 1 download till now]...

BBox.lsp

Edited December 20, 2014 by marko_ribar

[Elpanov Evgeniy]

my version:

(defun test (c)
 ;; This code is written on the basis of code 'highflyingbird'
 ;; http://www.theswamp.org/index.php?topic=45785.msg509260#msg509260
 (mapcar (function (lambda (p)
                     (list (car (vlax-curve-getClosestPointToProjection c p '(0 1 0) t))
                           (cadr (vlax-curve-getClosestPointToProjection c p '(1 0 0) t))
                           (caddr (vlax-curve-getClosestPointToProjection c (reverse p) '(0 1 0) t))
                     )
                   )
         )
         '((-1e12 -1e12 0) (1e12 1e12 0))
 )
)
(defun c:bbox (/ a) (setq a (test (car (entsel)))) (vl-cmdf "_box" "_non" (car a) "_non" (cadr a)))

Edited December 4, 2013 by Elpanov Evgeniy
added link

[marko_ribar]

I've updated my BBox.lsp... Still it's little buggy, but that depends on complexity of DWG... I think that now it's still little better than it was... You can download it from my previous post...



Regards, M.R.

[AIberto]

I've updated my BBox.lsp... Still it's little buggy, but that depends on complexity of DWG... I think that now it's still little better than it was... You can download it from my previous post...



Regards, M.R.



Hi ,marko,

no function definition: ACET-SS-UNION ??? why?

[marko_ribar]

Hi ,marko,

no function definition: ACET-SS-UNION ??? why?



This is standard ACET-... function provided within Express Tools for ACAD... Check your installation of ACAD software and make sure you checked option for including Express Tools...

[AIberto]

This is standard ACET-... function provided within Express Tools for ACAD... Check your installation of ACAD software and make sure you checked option for including Express Tools...



Thanks marko ,I know
