Line annotation

[sashmits]

Hey guys,

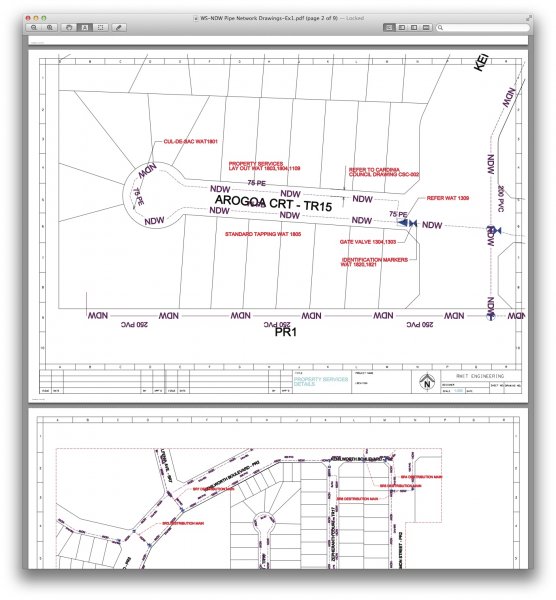

In my attached image, their annotation on the lines shows NDW along the line. i am wondering how they have done this. is there a setting to put the same word along the line or would they have just copied and pasted the word along the line.



thanks

[MSasu]

Actually, you can create a linetype with an embedded string; please check this previous discussion for some details and a dedicated tool (see last post).

[Blackfish]

You can try this adding it to your acad.lin

*NDW,NDW Line ----NDW----NDW----NDW----NDW----
A,2,-.25,["NDW",ARIAL,S=.1,R=0.0,X=-0.1,Y=-.05],-.25

*You should have ARIAL text style or AutoCAD use current one if missing.

Notice that if you are using AC2011 or newer you can replace "R=0.0" with "U=0.0" and your text will be readable as easy as dimensions are.

Edited May 12, 2012 by Blackfish
