hello,



im fairly new to using Auotcad and I am having an issue with a drawing that was sent to me. All the items are on one layer and i need to seperate them, i had to xref the drawing but i opened the original to double check and even there the objects are all on the same layer. i read some other forums, and think it might have to do with binding? can someone please let me know how to fix this!



thanks!:)

Share this post


Link to post
Share on other sites
CyberAngel

I've heard about such things but never actually seen one. What you have is a drawing created by someone who doesn't know how to use AutoCAD properly. Putting everything on one layer defeats the purpose of having layers at all, which is to divide objects into logical groups.



You can bind the drawing, or you can insert it as a file. Both give you the same result--the other drawing becomes a block in your drawing. That doesn't help with the layering issue.



Your best bet might be to have your source go through that drawing and put objects on the proper layers, e.g. walls, windows, doors. If that won't work, you'll have to do the work yourself. Sorry, there is no simple way to do it.

Share this post


Link to post
Share on other sites
Dadgad

Welcome to the club. :)

It sounds like the real problem was the absence of binding.

The person who drew it should have been bound and instructed to stay away from the Autocad!

I am having a very hard time imagining a situation where there might be justification for everything in a drawing to be on one layer.

I'm sure there must be, but I've never come across one.

Hard to say what you should do without seeing the drawing, or knowing a lot more about it.

What is it a drawing of?

Share this post


Link to post
Share on other sites
aiannetta

Office furniture!

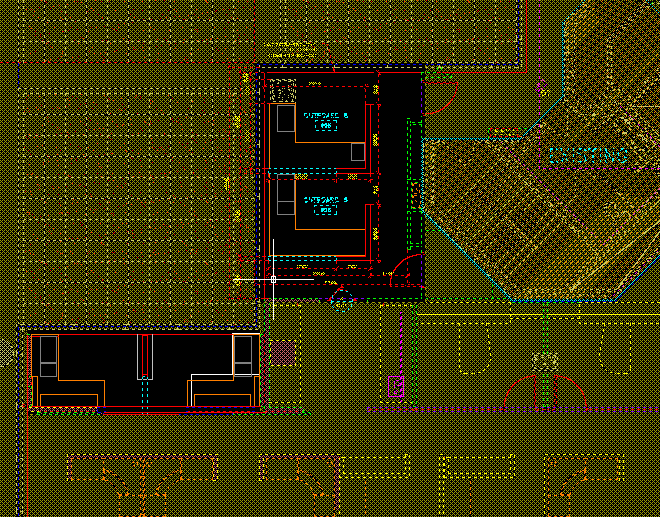

ive uploaded a photo of the drawing once i select just one item, the whole drawing highlights. i assumed it meant it was all on one layer...
