I have a 2D canoe design which is composed of an elliptical base and two sides. I've drawn the base and side exactly as per the design in Autocad. I've then extruded them to the 5mm as reguired by the design. I'd like to understand how to 'bend' the side panel so as to attach it in 3D to the base but I haven't a clue as to how to go about it.



Can anyone help me?

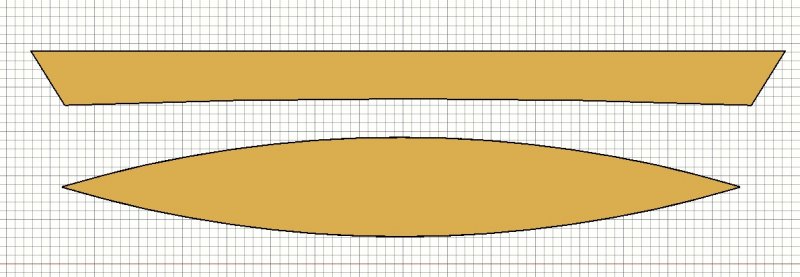

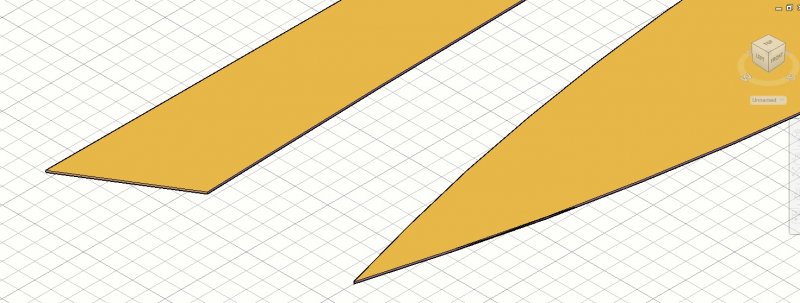

Attached are jpgs of the plan and NW views of the base and side together with the .dwg itself.

Canoe 4m.dwg

Canoe AutoCad NW.jpg

Canoe AutoCad Plan.jpg

Posted

AutoCAD doesn't roll or bend material. However, Autodesk Inventor can do that.



If you want to keep using AutoCAD, I'd suggest you look up the LOFT command to create a surface model of your canoe, then follow up with the THICKEN command to give your surface a thickness.

Posted

Thank you Denimoth, I'll look into the loft command.

Posted

You will want to create a series of polygons essentially which will define a few different cross sections in TOP view at different elevations.

Then you can choose an ISOMETRIC perspective, start the LOFT command and specify the order in which they will be spanned and united by a new SURFACE.

Once you have done that you will, as Denimoth stated, want to give those SURFACES thickness, converting them into solids with the THICKEN command.
